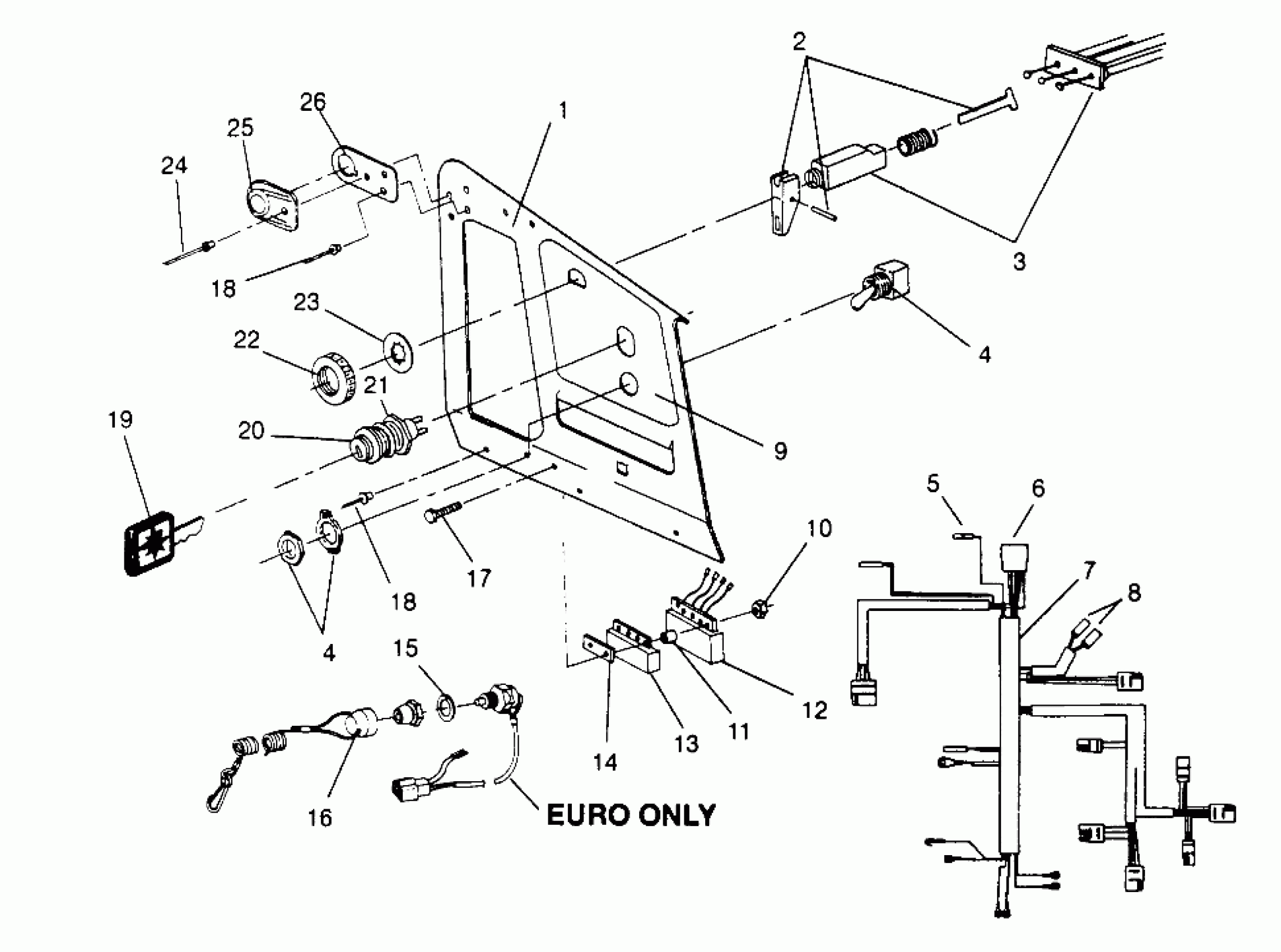

Polaris ULTRA RMK - 0960978 CONSOLE ULTRA SKS 0960578, EUROPEAN ULTRA SKS E960578, and ULTRA RMK 096097 (4931683168A012) Diagram

CONSOLE

5222756-067

Unavailable

KIT,CHOKE CONTROL

2200189

$20.22

CABLE, CHOKE

7080283

$109.99

SW,GRIP,HEATER-HI/LO

4110113

$70.39

SW,GRIP,HEATER-HI/LO

4110113

$70.39

HOUSING

4020133

Unavailable

Housing w/Receptacle

4020057

$3.51

HARNESS,MAIN WIRE

2460579

Unavailable

Housing

4020153

$1.49

DECAL, CONSOLE [No Longer Available]

7073075

Unavailable

NUT(10)

7541925

$1.49

Spacer

5020864

Unavailable

SWITCH,EXH.TEMP

4110197

$89.99

REGULATOR,(14.3VAC),LR-7

4060123

Unavailable

SPACER,REGULATOR

5211573

Unavailable

WASHER(10)

7555817

Unavailable

SWITCH,TETHER Substituted by 2870668 (EURO)

4110156

$84.99

SCREW(10) Substituted by 7517263

7512092

Unavailable

RIVET,INTERLOCK,B(50)

7661638

$1.49

RIVET,INTERLOCK,B(50)

7661638

$1.49

KEY,IGNITION,W/CAP [Cannot Purchase as Assembly] (See Footnote)

5410611

Unavailable

KIT,IGN. SWITCH (Incl. 19, 21)

2200357

Unavailable

NUT, IGN.SWITCH(10)

7543101

Unavailable

Nut

7080229

$19.99

WASHER-LOCK(10)

7571610

$3.99

RIVET(50) Substituted by 7661130

7661643

Unavailable

GUIDE, RECOIL

5431385

$10.51

BRKT,ROPE GUIDE,BLK. NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A, B, C, D, or E switch. Letter code will be labeled on underside of switch body behind console. Key dot

5222682-067

Unavailable
