CHAINCASE ULTRA SKS 0960578, EURO ULTRA SKS E960578, and ULTRA RMK 0960978 (4931683168B010)

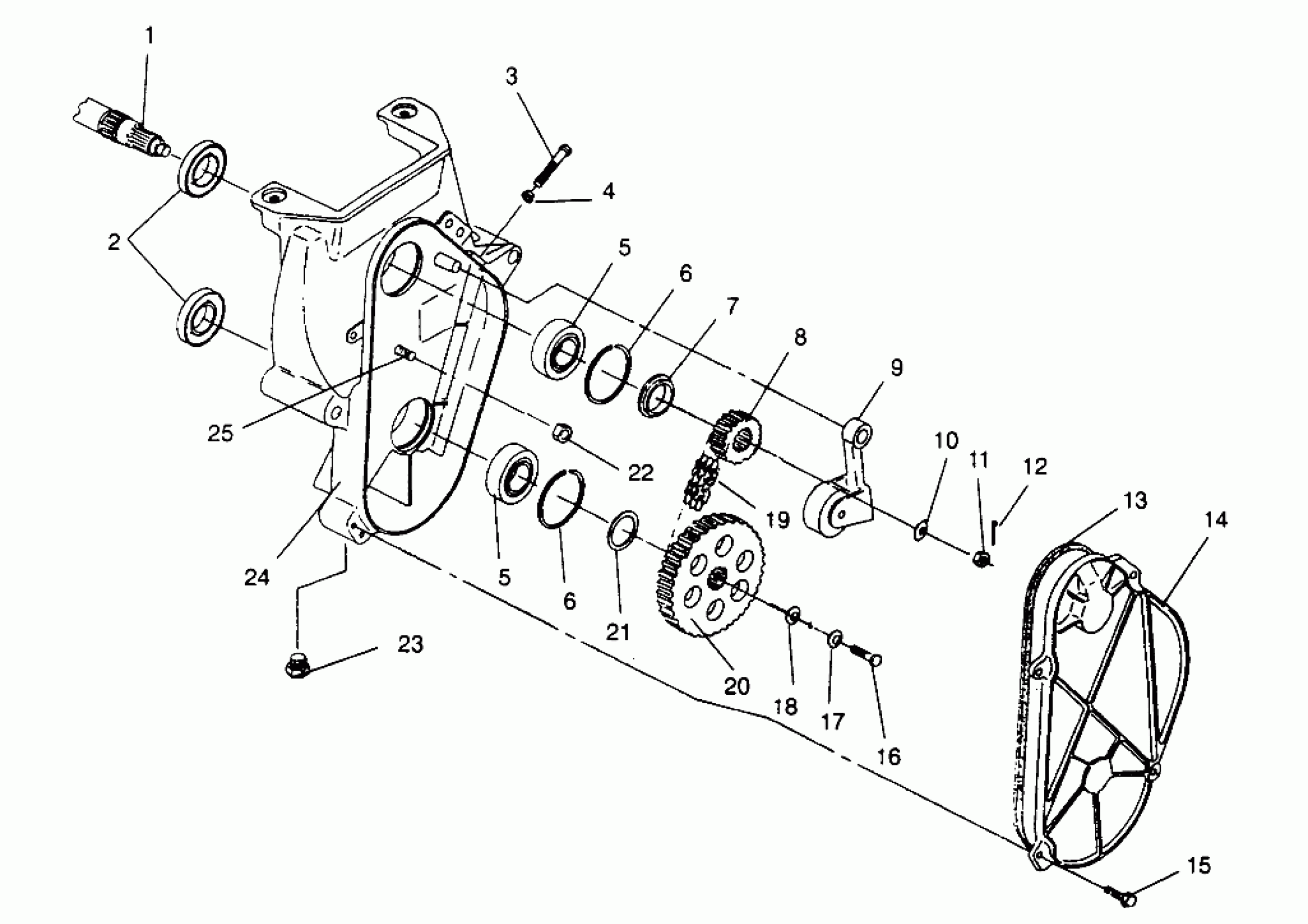

Polaris ULTRA RMK - 0960978 CHAINCASE ULTRA SKS 0960578, EURO ULTRA SKS E960578, and ULTRA RMK 0960978 (4931683168B010) Diagram
#
Description
Price
1
Asm., Jackshaft (See Pg. A26, Ref. 17)
-------
Unavailable
2
SEAL-OIL
3610030
$20.22
3
SCREW(10)
7515551
$6.39
4
NUT(10)
7542404
$1.59
5
BEARING
3514308
Unavailable
5
BEARING
3514308
Unavailable
6
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
6
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
7
SPACER,SPROCKET
5010359
Unavailable
8
SPKT,20T,(13W),15T SPLINE (13W)
3221061
Unavailable
9
PIN,CHAIN TIGHTENER
7662210
Unavailable
9
TIGHTENER ASM,GEARCASE Substituted by 1332213
1332096
$159.99
9
BEARING
3553002
$11.99
9
BLOCK,TIGHTENER [No Longer Available]
5630122
Unavailable
9
WHEEL,C/C IDLER
5630123
Unavailable
9
WASHER THRUST(10)
7558702
$1.59
10
WASHER, SLOTTED(10)
7571620
$7.19
11
NUT
7542811
Unavailable
12
COTTER PIN(10)
7661401
$1.49
13
GASKET-CHAINCASE
5410277
$24.99
14
COVER, CHAINCASE Substituted by 5630968
5630413
Unavailable
15
SCREW(10)
7512242
$2.39
16
SCREW(10)
7515350
$3.97
17
WASHER(10)
7571618
$6.39
18
BUSHING(10)
7555863
$2.39
19
CHAIN,64P,(13W),SILENT (13W)
3224052
Unavailable
20
SPROCKET,35T,(13W) (13W)
3222053
Unavailable
21
BUSHING(10)
7555864
$2.39
22
NUT-HEX-3/8-16 A ZTB NYL
7542451
$1.49
23
PLUG(10)
7052115
$5.65
24
CHAINCASE,VENTED,W/BRG CLEAR. Substituted by 5131568
5131121
Unavailable
25
BOLT(10)
7515477
$34.99
