Description

Price

1

TOP ASM.

3130644

Unavailable

2

SPRING,THROTTLE

3130444

Unavailable

3

HOLDER,GUIDE

3130199

$28.32

4

SPRING,PLUNGER

3130006

$8.89

5

PLUNGER ASM, STARTER

3130328

$32.37

6

NIPPLE

3130611

Unavailable

7

CLIP

3130613

Unavailable

7

CLIP

3130613

Unavailable

7

CLIP

3130613

Unavailable

8

HOSE

3130605

Unavailable

8

HOSE

3130605

Unavailable

9

SPRING,AIR ADJUST

3130012

$8.89

10

SCREW,AIR

3130011

$19.99

11

SPRING,THROTTLE ADJ.

3130010

$8.89

12

SCREW,THROTTLE STOP

3130009

$19.99

13

JET,PILOT,#50(10) (#50)

3130629

$7.27

14

PLATE

3130243

Unavailable

15

RING,CARB

3130232

Unavailable

16

JET,MAIN HX.HD#280(10) (#280) (RMK)

3130131

$7.27

16

JET,MAIN,#340 Substituted by 3130137 (#340) (SKS)

3130626

Unavailable

17

GASKET,FLOAT CHAMBER

3130236

$12.13

18

CAP,(10)

3130237

$4.03

18

CAP,(10)

3130237

$4.03

19

FLOAT ASM

3130021

$40.46

19

FLOAT ASM

3130021

$40.46

20

SCREW

3130056

$3.19

21

CLAMP,SPRING,(10)

7080534

$1.59

22

CLAMP,HOSE(10)

7080544

Unavailable

23

PLUG,TRAP

5431893

$12.94

24

FUEL LINE, 5 FT.

8450045-153

$99.99

25

NIPPLE

3130573

$32.37

26

O RING

3130239

Unavailable

27

VALVE ASM,NEEDLE

3130643

$56.65

28

WASHER(10)

3130047

$4.84

29

ARM,FLOAT

3130048

Unavailable

30

PIN, FLOAT

3130361

$8.89

31

JET,AIR,(PAJ1) (PAJ1)

3130256

Unavailable

32

CARBURETOR 2 Substituted by 3130692 (SKS) (Incl. 1-20, 25-38)

3130647

Unavailable

32

CARBURETOR 1 Substituted by 3130691 (Incl. 1-20, 25-38) (SKS)

3130646

Unavailable

32

CARBURETOR 1,MAG&PTO SIDE [No Longer Available] (Incl. 1-20, 25-38) (RMK)

3130648

$304.49

32

CARBURETOR 2,CENTER SIDE [No Longer Available] (RMK) (Incl. 1-20, 25-38)

3130649

$364.99

33

CAP

3130479

$14.56

34

NEEDLE JET,(P-4) (247)

3130641

Unavailable

35

VALVE,THROTTLE,(2.0) (2.0) (SKS)

3130664

Unavailable

35

DESC NOT_AVAILABLE (1.5) (RMK)

3230663

Unavailable

36

JET NEEDLE

3130645

Unavailable

37

E-RING,(10)

3130508

$6.46

38

PLATE, THROTTLE

3130054

$6.46

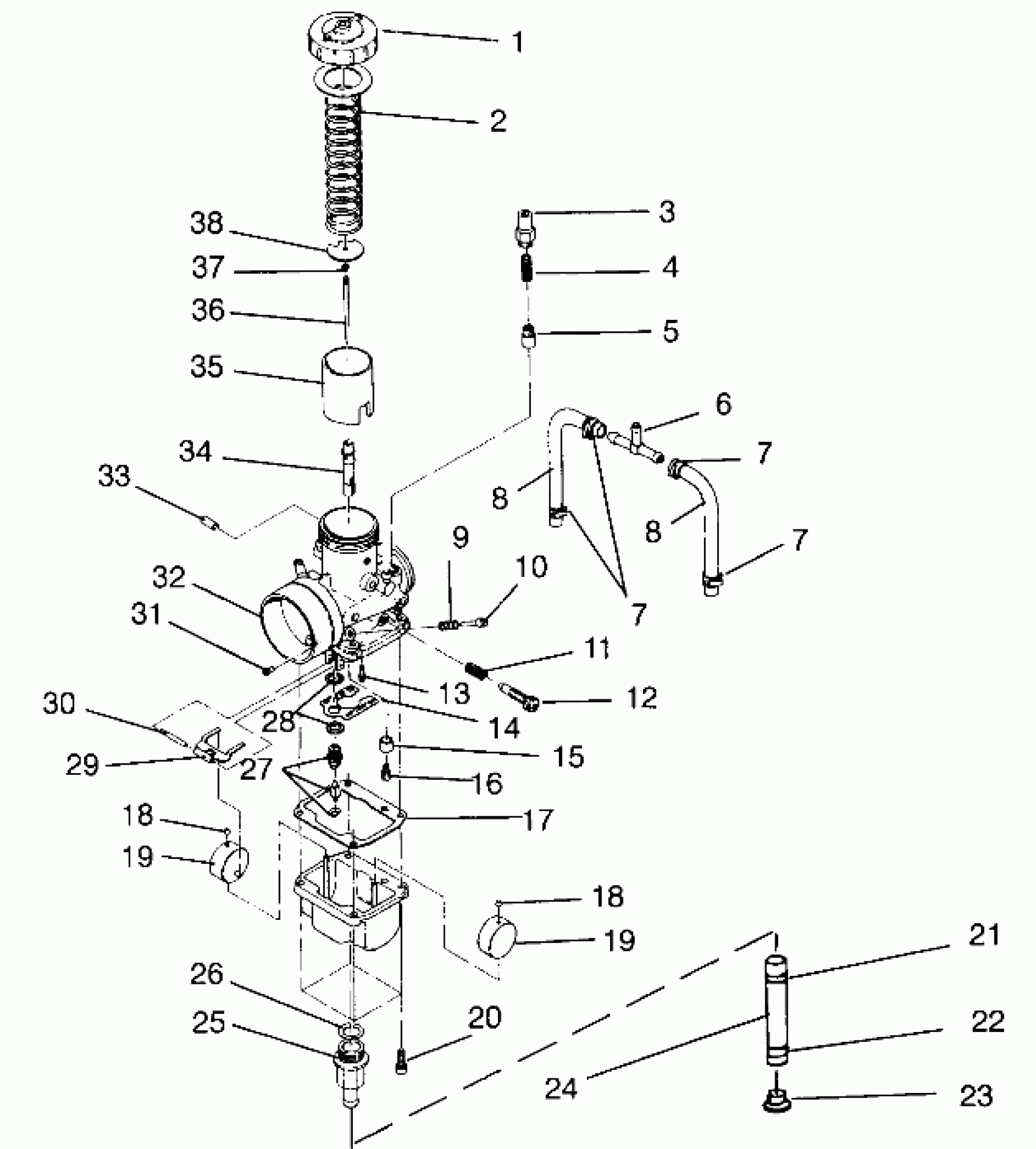

Polaris ULTRA RMK - 0960978 CARBURETOR ULTRA SKS 0960578, EUROPEAN ULTRA SKS E960578, and ULTRA RMK 096 (4931683168C013) Diagram

TOP ASM.

SPRING,THROTTLE

HOLDER,GUIDE

SPRING,PLUNGER

PLUNGER ASM, STARTER

NIPPLE

CLIP

CLIP

CLIP

HOSE

HOSE

SPRING,AIR ADJUST

SCREW,AIR

SPRING,THROTTLE ADJ.

SCREW,THROTTLE STOP

JET,PILOT,#50(10) (#50)

PLATE

RING,CARB

JET,MAIN HX.HD#280(10) (#280) (RMK)

JET,MAIN,#340 Substituted by 3130137 (#340) (SKS)

GASKET,FLOAT CHAMBER

CAP,(10)

CAP,(10)

FLOAT ASM

FLOAT ASM

SCREW

CLAMP,SPRING,(10)

CLAMP,HOSE(10)

PLUG,TRAP

FUEL LINE, 5 FT.

NIPPLE

O RING

VALVE ASM,NEEDLE

WASHER(10)

ARM,FLOAT

PIN, FLOAT

JET,AIR,(PAJ1) (PAJ1)

CARBURETOR 2 Substituted by 3130692 (SKS) (Incl. 1-20, 25-38)

CARBURETOR 1 Substituted by 3130691 (Incl. 1-20, 25-38) (SKS)

CARBURETOR 1,MAG&PTO SIDE [No Longer Available] (Incl. 1-20, 25-38) (RMK)

CARBURETOR 2,CENTER SIDE [No Longer Available] (RMK) (Incl. 1-20, 25-38)

CAP

NEEDLE JET,(P-4) (247)

VALVE,THROTTLE,(2.0) (2.0) (SKS)

DESC NOT_AVAILABLE (1.5) (RMK)

JET NEEDLE

E-RING,(10)

PLATE, THROTTLE
