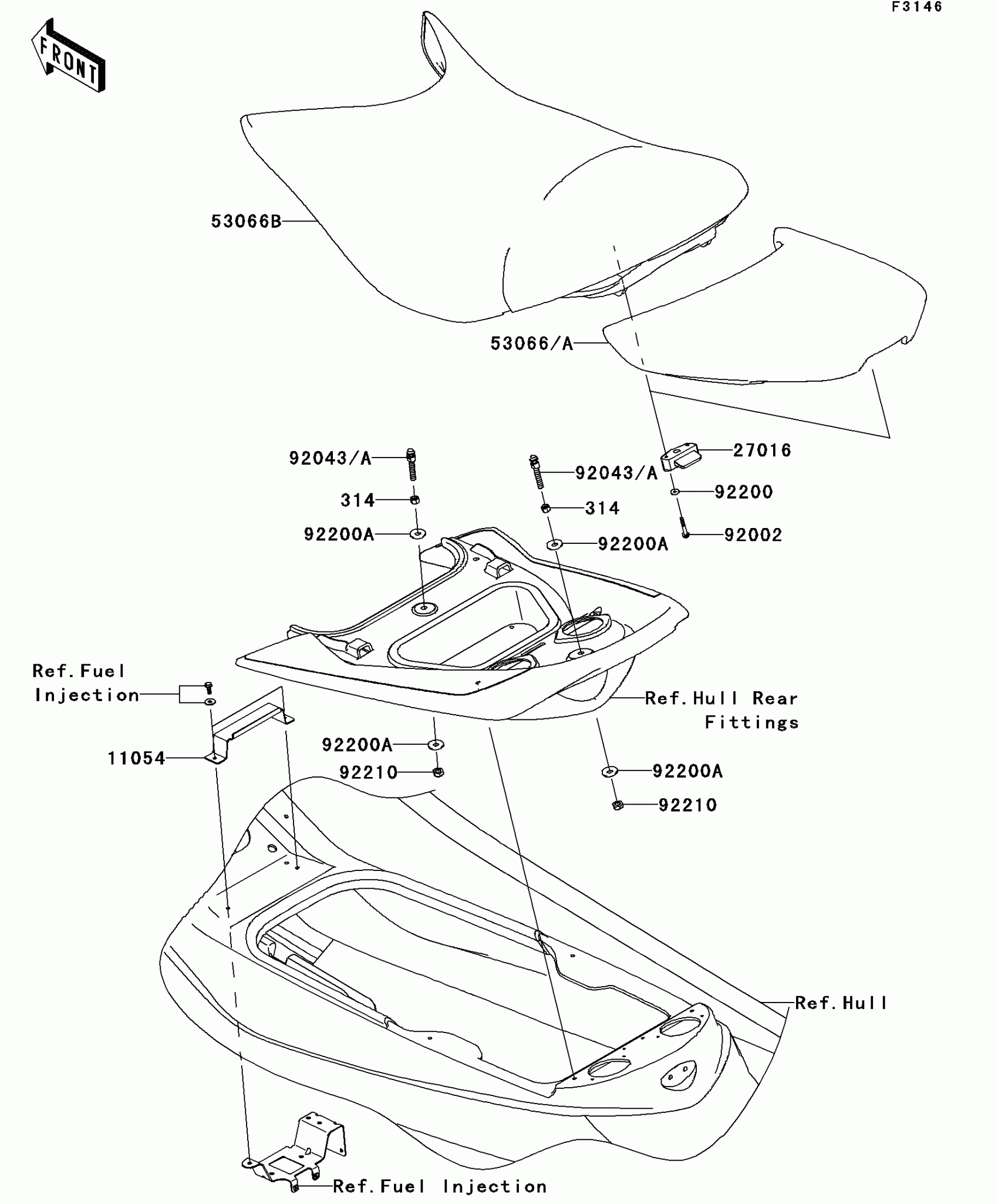

Kawasaki Ultra LX Seat Diagram

Description

Price

11054

BRACKET,FRONT SEAT

11054-3702

$40.84

27016

LOCK-ASSY,SEAT

27016-3758

$98.34

53066A

SEAT-ASSY,RR,S.RED

53066-3712-309

$381.11

53066B

SEAT-ASSY,FR,BLACK

53066-3718-MA

$527.90

92002

BOLT,6X40

92002-3716

$5.52

92043A

92043-3763

$46.79

92200

WASHER,6.5X16X2.0

92200-1543

$2.34

92200A

WASHER

92200-3762

$2.61

92210

NUT,LOCK,10MM

92210-3792

$7.75

314

NUT-HEX-FINE,10MM

314R1000

$2.02
