Description

Price

11065

CAP,F.BLACK

11065-3707-6Z

$4.96

39027

BUMPER-FRONT,F.BLACK

39027-3747-6Z

$93.18

39028

BUMPER-REAR,CORNER,F.BLACK

39028-3752-6Z

$50.51

53004

MAT,FLOOR,RR

53004-3886

$128.75

53004A

MAT,FLOOR,MIDDLE,LH

53004-3888

$74.02

53004B

MAT,FLOOR,MIDDLE,RH

53004-3889

Unavailable

53004C

MAT,FLOOR,FR,LH

53004-3890

Unavailable

53004D

MAT,FLOOR,FR,RH

53004-3891

$17.42

53004E

MAT,FR,LH

53004-3892

Unavailable

53004F

MAT,FR,RH

53004-3893

Unavailable

53004G

MAT,RR,LH

53004-3897

$8.10

53004H

MAT,RR,RH

53004-3898

$8.10

59201

BUMPER,RR,F.BLACK

59201-3788-6Z

$47.55

59201A

BUMPER,SIDE,F.BLACK

59201-3791-6Z

Unavailable

59504

INSERT-BOAT FENDER,RR,J.WHITE

59504-3732-8U

$39.22

59504A

INSERT-BOAT FENDER,SIDE,WHITE

59504-3733-8U

$84.71

92039

RIVET

92039-3771

$0.95

92039A

RIVET

92039-3773

$1.08

92039B

RIVET

92039-3781

$5.13

92153

BOLT,SOCKET,5X30

92153-3742

$2.97

92200

WASHER,5X12X1

92200-3795

$1.81

92200A

WASHER,5X12X1

92200-3796

$2.15

311

NUT-HEX,5MM

311R0500

$1.75

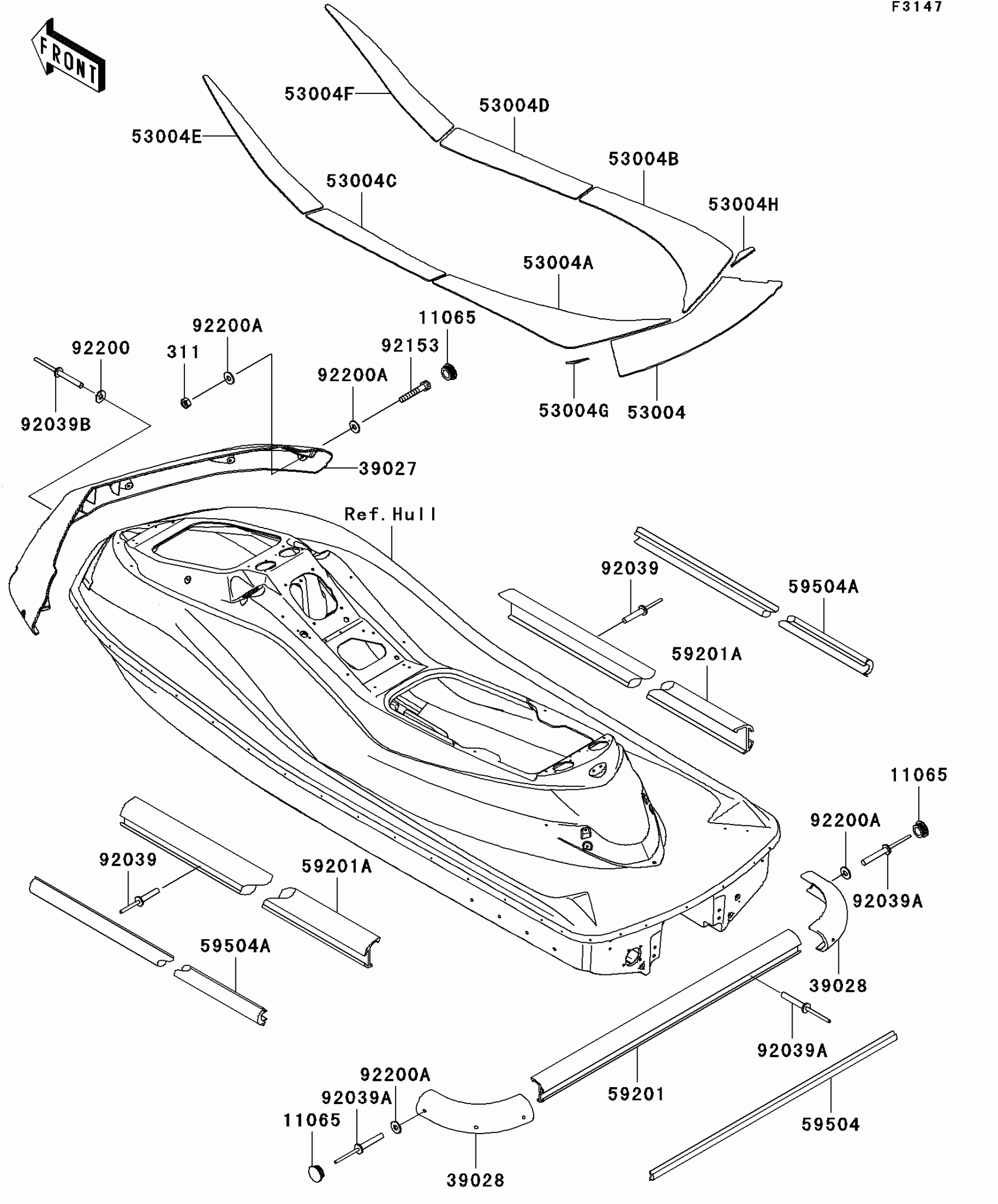

Kawasaki Ultra LX Pads Diagram

CAP,F.BLACK

BUMPER-FRONT,F.BLACK

BUMPER-REAR,CORNER,F.BLACK

MAT,FLOOR,RR

MAT,FLOOR,MIDDLE,LH

MAT,FLOOR,MIDDLE,RH

MAT,FLOOR,FR,LH

MAT,FLOOR,FR,RH

MAT,FR,LH

MAT,FR,RH

MAT,RR,LH

MAT,RR,RH

BUMPER,RR,F.BLACK

BUMPER,SIDE,F.BLACK

INSERT-BOAT FENDER,RR,J.WHITE

INSERT-BOAT FENDER,SIDE,WHITE

RIVET

RIVET

RIVET

BOLT,SOCKET,5X30

WASHER,5X12X1

WASHER,5X12X1

NUT-HEX,5MM
