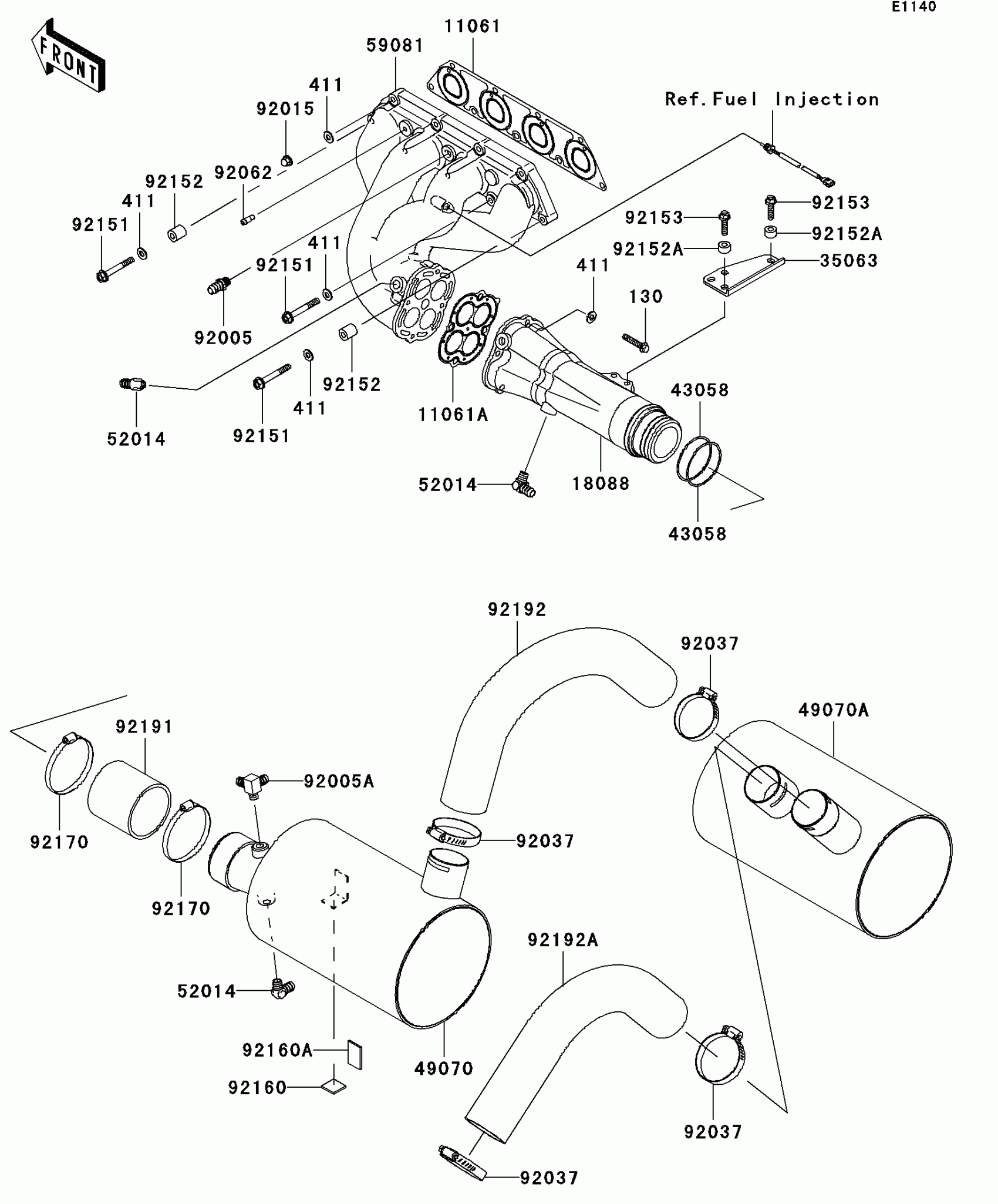

Kawasaki Ultra LX Muffler(s) Diagram
#
Description
Price
11061
GASKET,MANIFOLD EXHAUST
11061-3713
$40.44
11061A
GASKET,PIPE EXHAUST
11061-3714
$18.20
18088
PIPE-EXHAUST
18088-3723
$377.43
35063
STAY
35063-3704
$28.86
43058
RING,GASKET
43058-3733
$19.74
49070
MUFFLER-COMP
49070-3744
$950.05
49070A
MUFFLER-COMP,2ND
49070-3748
$861.65
52014
ELBOW
52014-3711
$30.12
59081
MANIFOLD-EXHAUST
59081-3741
$672.45
92005
FITTING
92005-3714
$18.72
92005A
FITTING
92005-3751
$52.29
92015
NUT,CAP,8MM
92015-1371
$5.00
92037
CLAMP
92037-3738
$6.89
92062
NOZZLE
92062-3705
$8.44
92151
BOLT,8X60
92151-3730
$7.27
92152
COLLAR
92152-3736
$7.63
92152A
COLLAR,8.2X17X10
92152-3740
$53.47
92153
BOLT,FLANGED,8X30
92153-3722
$2.55
92160
DAMPER,25X25
92160-3864
$3.32
92160A
DAMPER,40X25
92160-3865
$5.24
92170
CLAMP
92170-3760
$11.56
92191
TUBE,PIPE EX-MUFFLER
92191-3986
$21.54
92192
TUBE,1ST-2ND
92192-3761
Unavailable
92192A
TUBE,2ND-TAIL PIPE
92192-3762
$35.29
130
BOLT-FLANGED,8X40
130CD0840
$4.20
411
WASHER-PLAIN,8MM
411S0800
$3.09
