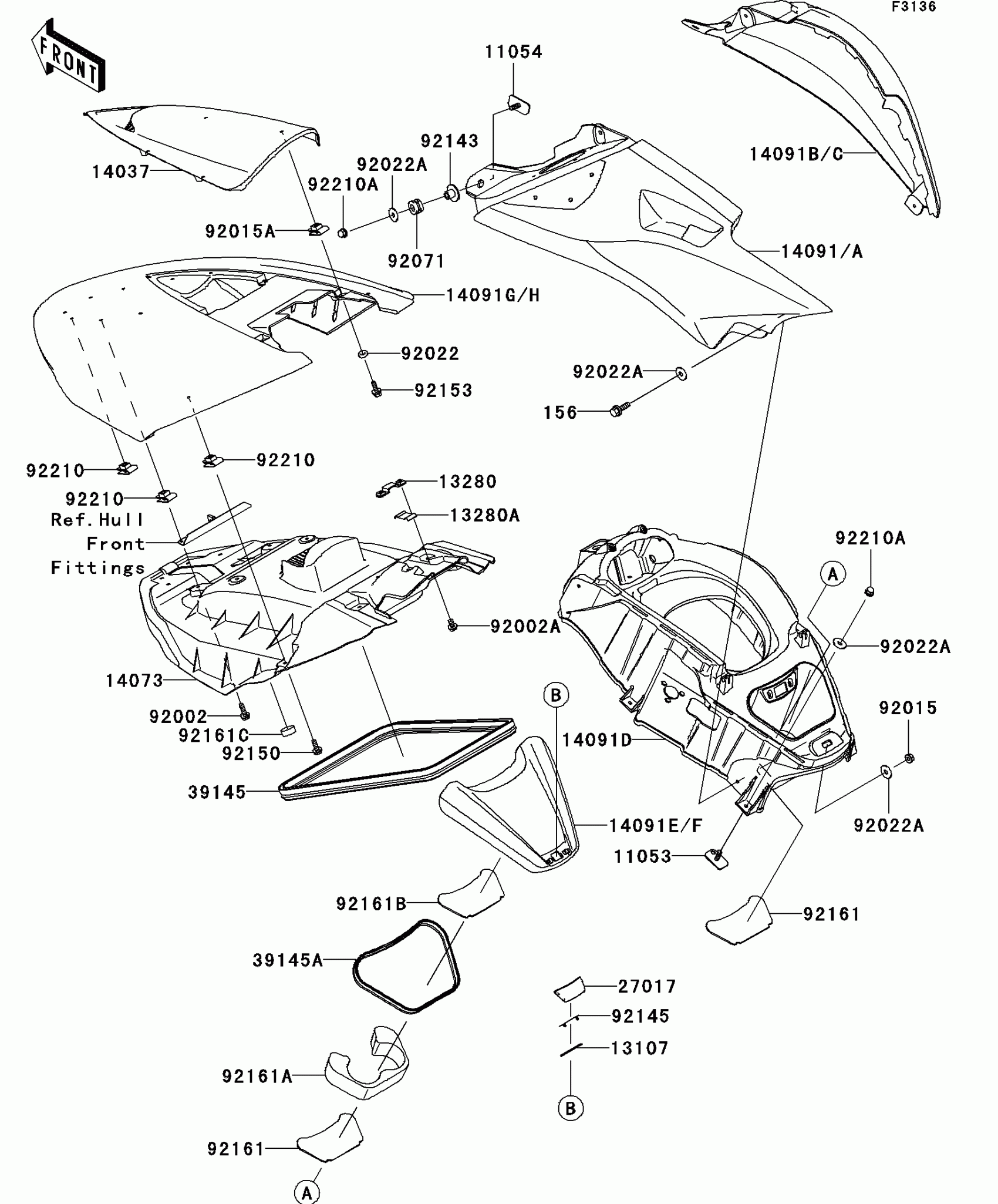

Kawasaki Ultra LX Hull Middle Fittings Diagram
#
Description
Price
11053
BRACKET
11053-3776
$9.48
11054
BRACKET
11054-3741
Unavailable
13107
SHAFT
13107-3790
$3.90
13280
HOLDER,ROD
13280-3749
$11.82
13280A
HOLDER,ROD
13280-3751
$4.61
14037
SCREEN,METER COVER
14037-3711
Unavailable
14073
DUCT,HATCH,INNER
14073-3806
$165.31
14091
COVER,SIDE,LH,S.RED
14091-3780-H1
$125.52
14091B
COVER,SIDE,RH,S.RED
14091-3781-H1
$128.01
14091D
COVER,HANDLE,F.BLACK
14091-3782-6Z
$152.28
14091E
COVER,CENTER STORAGE,S.RED
14091-3783-H1
Unavailable
14091G
COVER,HATCH,S.RED
14091-3784-H1
$237.43
27017
LOCK,CENTER STORAGE
27017-3726
$10.56
39145
TRIM-SEAL
39145-3793
$112.65
39145A
TRIM-SEAL,L=720
39145-3802
$46.79
92002
BOLT,6X20
92002-3755
$4.69
92002A
BOLT,6X12
92002-3763
$4.69
92015
NUT,LOCK,6MM
92015-3766
$5.91
92015A
NUT,CLIP,5MM
92015-3830
$7.91
92022
WASHER,5X16X1.5
92022-3041
$4.18
92022A
WASHER,6.5X20X1.5
92022-3710
$3.65
92071
GROMMET
92071-3716
$4.96
92143
COLLAR
92143-3750
$6.81
92145
SPRING
92145-3729
$5.60
92150
BOLT,6X18
92150-3729
$4.69
92153
BOLT,5X20
92153-3744
$2.75
92161
DAMPER,CENTER STORAGE
92161-3773
$5.04
92161A
DAMPER,CENTER STORAGE
92161-3775
$5.37
92161B
DAMPER,CENTER STORAGE
92161-3777
$5.37
92161C
DAMPER
92161-3790
$4.65
92210
NUT,6MM
92210-3768
$5.79
92210A
NUT,CAP,6MM
92210-3785
$5.65
156
BOLT-WP,6X20
156R0620
$3.65
