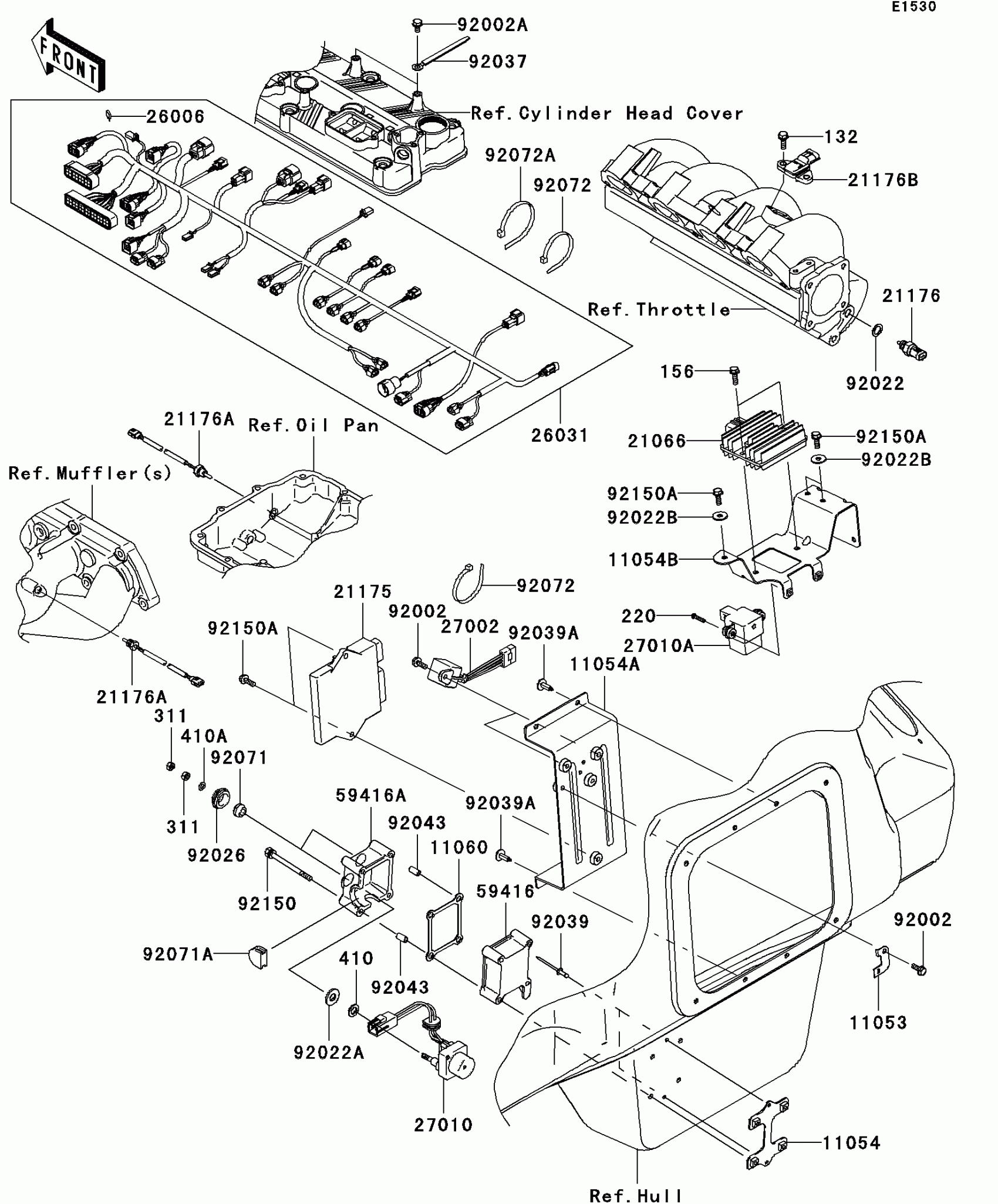

Kawasaki Ultra LX Fuel Injection Diagram
#
11053
BRACKET,FUSE
11053-3724
$7.90
11054
BRACKET,SWITCH
11054-3742
Unavailable
11054A
BRACKET,ECU&RELAY
11054-3743
$12.55
11054B
BRACKET,REGULATOR&VDS
11054-3749
$106.64
11060
GASKET
11060-3709
$13.41
21066
REGULATOR-VOLTAGE
21066-3718
Unavailable
21175
CONTROL UNIT-ELECTRONIC
21175-3734
$898.49
21176
SENSOR,AIR TEMPERATURE
21176-1086
$68.42
21176A
SENSOR,TEMP
21176-3758
$133.71
21176B
SENSOR,PRESSURE
21176-3765
$245.34
26006
FUSE,MINI BLADE,20A,YELLOW
26006-3704
$5.24
26031
HARNESS,ENGINE
26031-3723
$656.56
27002
RELAY-ASSY
27002-3703
$51.63
27010
SWITCH
27010-3777
$164.03
27010A
SWITCH,VDS
27010-3785
$259.40
59416
CASE-ELECTRIC
59416-3710
$57.71
59416A
CASE-ELECTRIC
59416-3711
$64.25
92002
BOLT,6X16
92002-3728
$4.69
92002A
BOLT,6X12
92002-3763
$4.69
92022
WASHER,12X18X1.0
92022-1211
$3.92
92022A
WASHER
92022-3035
$3.52
92022B
WASHER,6.5X20X1.5
92022-3710
$3.65
92026
SPACER
92026-3703
$4.69
92037
CLAMP,L=100
92037-3736
$5.52
92039
RIVET
92039-3714
$0.95
92039A
RIVET
92039-3785
$4.65
92043
PIN
92043-3715
$7.34
92071
GROMMET
92071-3004
$3.99
92071A
GROMMET
92071-3837
$3.23
92072
BAND,L=188.85
92072-0105
$1.73
92072A
BAND,L=372.24
92072-3883
$1.59
92150
BOLT,6X80
92150-3711
$13.04
92150A
BOLT,6X18
92150-3729
$4.69
132
BOLT-FLANGED-SMALL,6X18
132BD0618
$3.89
156
BOLT-WP,6X20
156R0620
$3.65
220
SCREW-PAN-CROS,4X20
220R0420
$2.41
311
NUT-HEX,6MM
311R0600
$0.70
410
WASHER-PLAIN-SMALL,10MM
410AA1000
$0.59
410A
WASHER-PLAIN-SMALL,6MM
410S0600
$0.78
