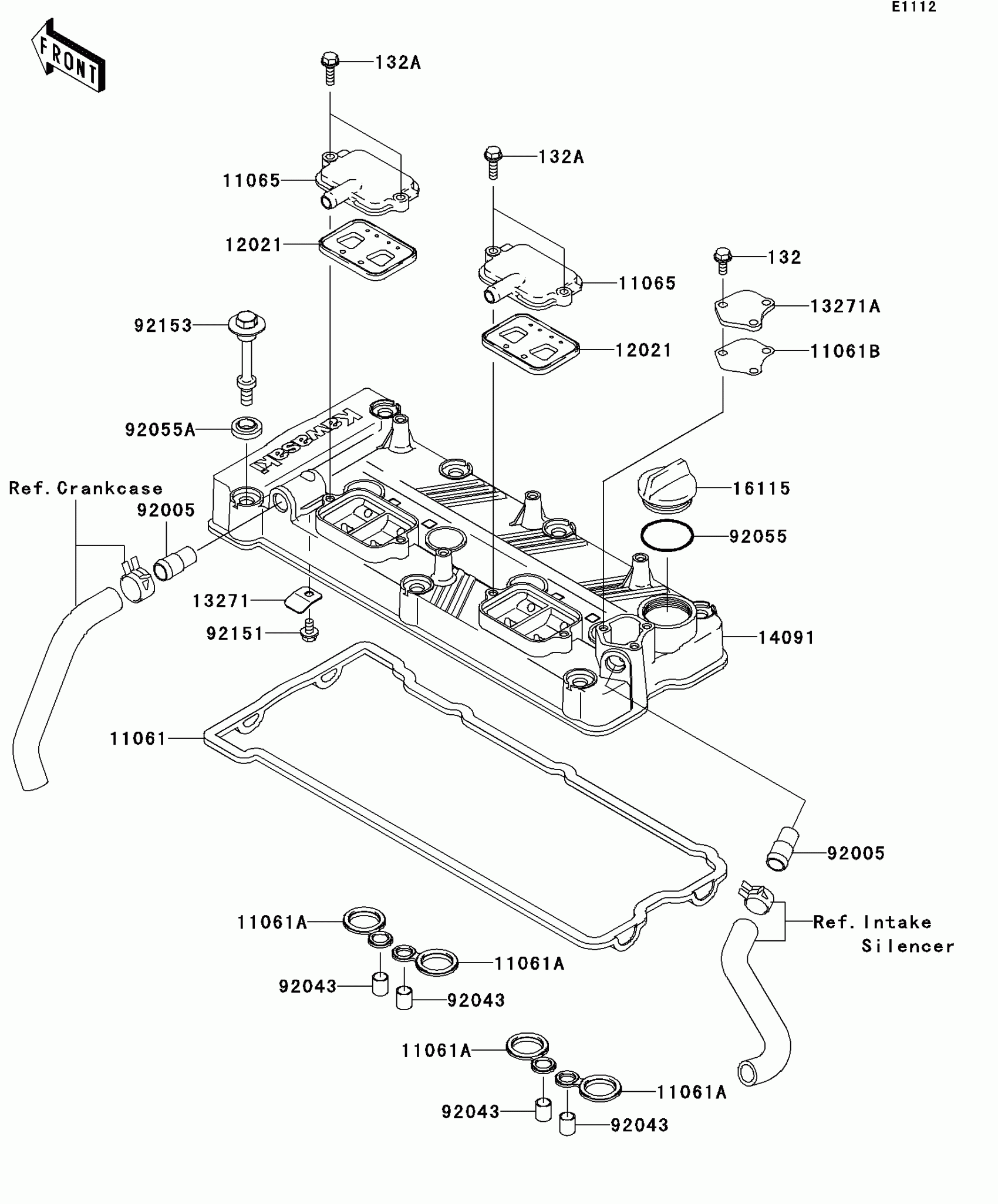

Kawasaki Ultra LX Cylinder Head Cover Diagram

Description

Price

11061

GASKET,HEAD COVER

11061-0090

$70.62

11061A

GASKET,SPARK PLUG HOLE

11061-0105

$11.29

11061B

GASKET,PLATE

11061-3728

Unavailable

11065

CAP,ASV

11065-3723

$32.22

12021

VALVE-ASSY-REED

12021-1119

$75.61

13271

PLATE

13271-3851

$4.45

13271A

PLATE

13271-3898

$8.24

14091

COVER,HEAD

14091-3814

$411.07

16115

CAP-OIL FILLER

16115-1064

$7.77

92005

FITTING

92005-3741

$18.20

92043

PIN,10.1X12X14

92043-4009

$6.22

92055

RING-O,38MM

92055-1295

$16.33

92055A

RING-O,HEAD COVER BOLT

92055-1352

$10.00

92151

BOLT,FLANGED,6X10

92151-1822

$1.74

92153

BOLT,HEAD COVER

92153-3706

Unavailable

132

BOLT-FLANGED-SMALL,6X14

132BD0614

$3.67

132A

BOLT-FLANGED-SMALL,6X20

132BD0620

$4.12
