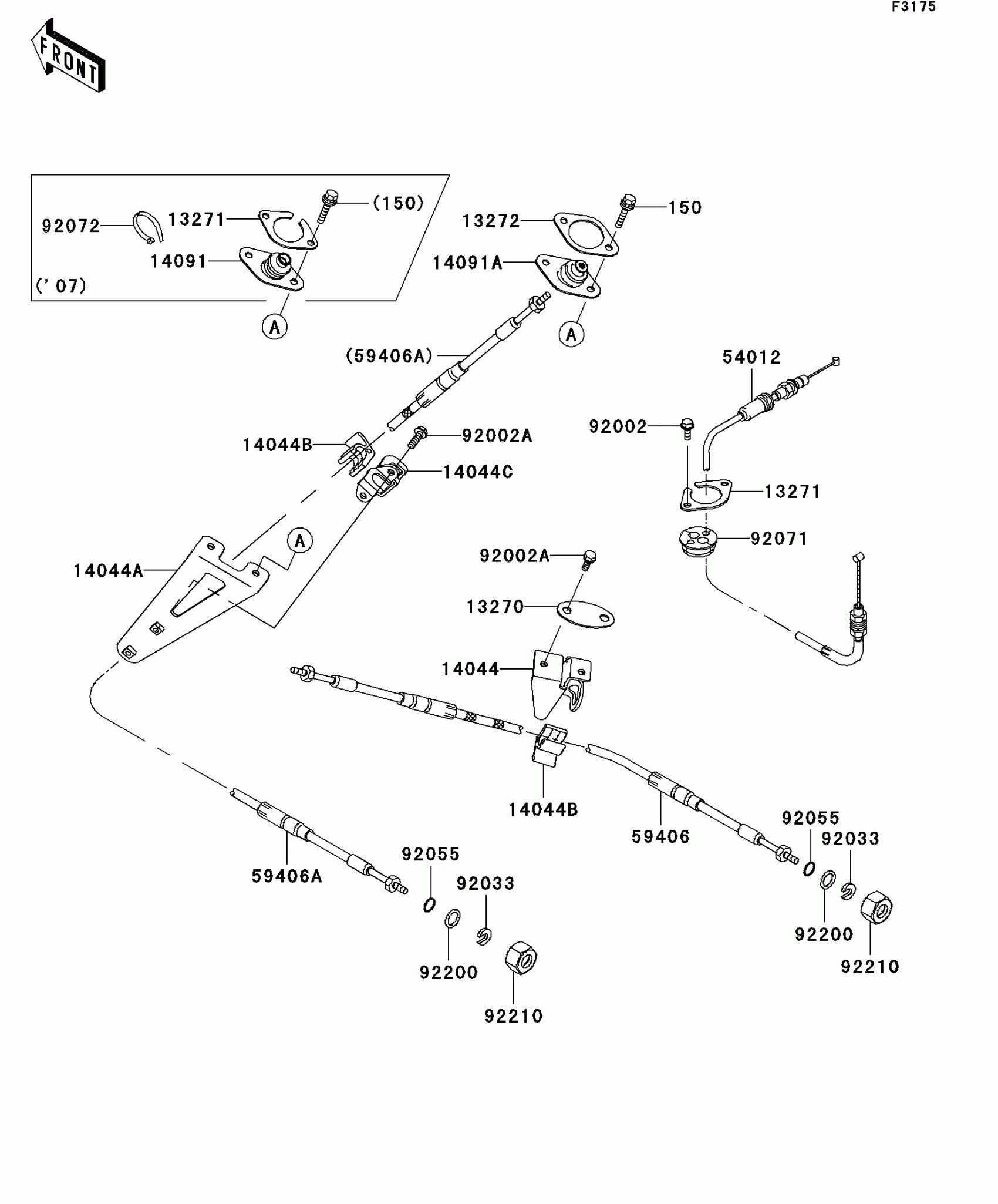

Kawasaki Ultra LX Cables Diagram

#

Description
Price

13270

PLATE

13270-3860

$8.38

13271

PLATE

13271-3905

Unavailable

13272

PLATE

13272-3706

$3.62

14044

HOLDER-CABLE,STEERING

14044-3754

Unavailable

14044A

HOLDER-CABLE,REVERSE

14044-3755

$28.35

14044B

HOLDER-CABLE

14044-3760

$4.57

14044C

HOLDER-CABLE,REVERSE

14044-3761

Unavailable

14091A

COVER

14091-3821

$6.54

54012

CABLE-THROTTLE

54012-3771

$110.04

59406

CABLE-STRG

59406-3780

$152.59

59406A

CABLE-STRG,REVERSE

59406-3781

$241.33

92002

BOLT,6X16

92002-3728

$4.69

92002A

BOLT,6X20

92002-3755

$4.69

92033

RING-SNAP

92033-3735

$7.69

92055

RING-O

92055-3778

$1.34

92071

GROMMET,HARNESS

92071-3790

$9.64

92200

WASHER,14.5X20X1.5

92200-3793

$2.61

92210

NUT,22MM

92210-3772

$13.60

150

BOLT-WS,6X25

150R0625

$4.34
