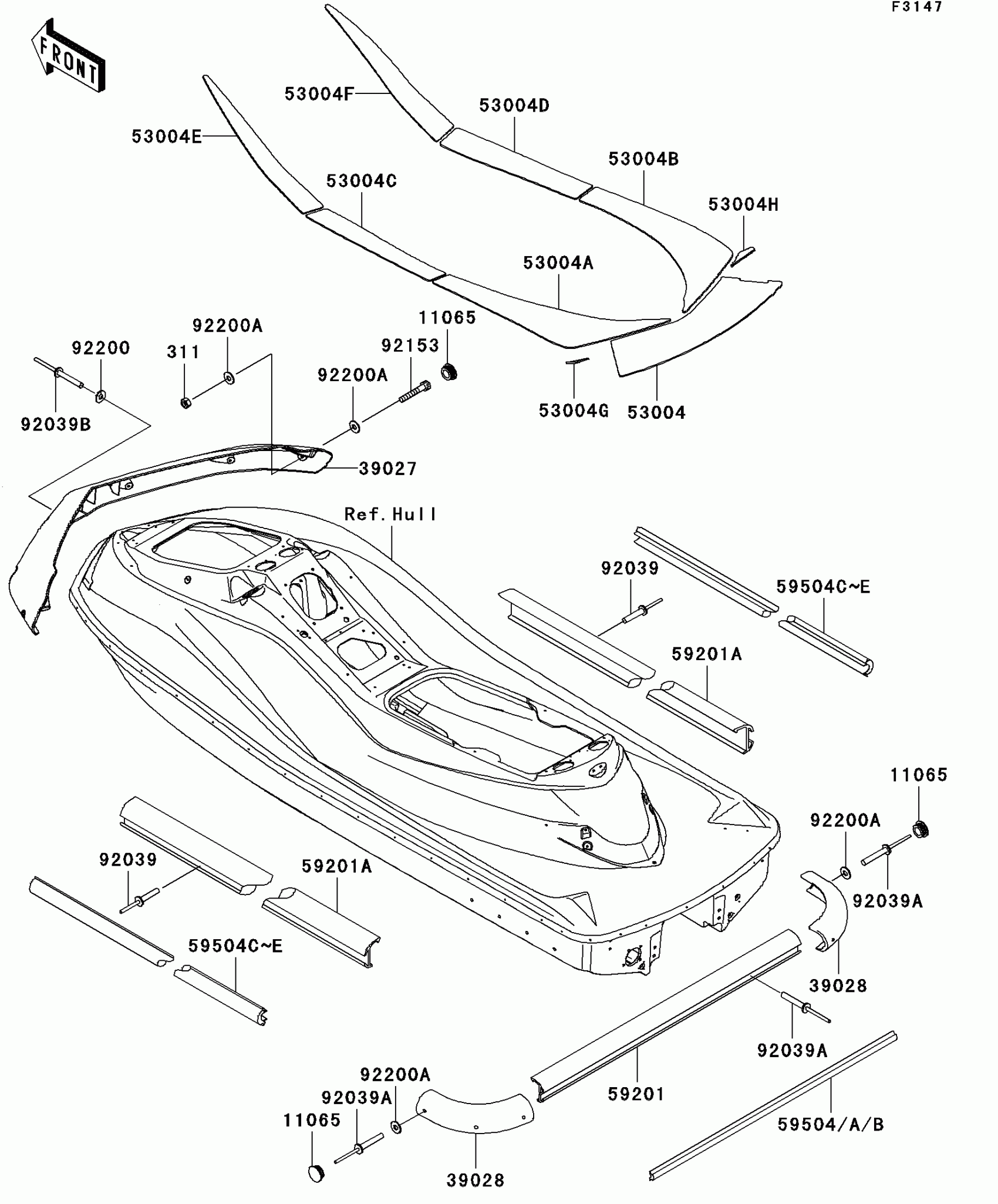

Kawasaki Ultra 250X Pads Diagram
#
Description
Price
11065
CAP,F.BLACK
11065-3707-6Z
$4.96
39027
BUMPER-FRONT,F.BLACK
39027-3747-6Z
$93.18
39028
BUMPER-REAR,CORNER,F.BLACK
39028-3752-6Z
$50.51
53004
MAT,FLOOR,RR
53004-3886
$128.75
53004A
MAT,FLOOR,MIDDLE,LH
53004-3888
$74.02
53004B
MAT,FLOOR,MIDDLE,RH
53004-3889
Unavailable
53004C
MAT,FLOOR,FR,LH
53004-3890
Unavailable
53004D
MAT,FLOOR,FR,RH
53004-3891
$17.42
53004E
MAT,FR,LH
53004-3892
Unavailable
53004F
MAT,FR,RH
53004-3893
Unavailable
53004G
MAT,RR,LH
53004-3897
$8.10
53004H
MAT,RR,RH
53004-3898
$8.10
59201
BUMPER,RR,F.BLACK
59201-3788-6Z
$47.55
59201A
BUMPER,SIDE,F.BLACK
59201-3791-6Z
Unavailable
59504
INSERT-BOAT FENDER,RR,F.SILVER
59504-3732-AG
$36.77
59504B
INSERT-BOAT FENDER,RR,S.RED
59504-3732-6B
$36.77
59504C
INSERT-BOAT FENDER,SIDE,SILVER
59504-3733-AG
$79.41
59504E
INSERT-BOAT FENDER,SIDE,S.RED
59504-3733-6B
$79.41
92039
RIVET
92039-3771
$0.95
92039A
RIVET
92039-3773
$1.08
92039B
RIVET
92039-3781
$5.13
92153
BOLT,SOCKET,5X30
92153-3742
$2.97
92200
WASHER,5X12X1
92200-3795
$1.81
92200A
WASHER,5X12X1
92200-3796
$2.15
311
NUT-HEX,5MM
311R0500
$1.75
