Description

Price

12046

SPROCKET,23T

12046-3703

$14.37

12053

GUIDE-CHAIN

12053-3704

$17.48

13107

SHAFT

13107-3801

$29.35

13271

PLATE

13271-3850

$4.45

14091

COVER

14091-3767

$77.11

16097

FILTER-ASSY-OIL

16097-0003

Unavailable

16097A

FILTER-ASSY-OIL

16097-3702

$51.51

16130

VALVE-ASSY-RELIEF

16130-3701

$46.98

16142

COVER-PUMP

16142-3703

$37.56

16154

ROTOR-PUMP

16154-1124

$70.09

16160

BODY,OIL PUMP

16160-3748

Unavailable

32154

PIPE,OIL LEVEL

32154-3721

$181.98

39193

PIPE-OIL

39193-3702

$43.12

52005

GAUGE,OIL LEVEL

52005-3710

$66.67

92002

BOLT,6X12

92002-3763

$4.69

92042

PIN,DOWEL,4X15.8

92042-014

$0.43

92043

PIN,11.5X14X14

92043-1279

$5.00

92055

RING-O,9.8X2.4

92055-1150

$8.10

92055A

RING-O,19.8X1.9

92055-1332

$4.69

92055B

RING-O

92055-3764

$6.57

92057

CHAIN,OIL PUMP,98XRH2010-52L

92057-3713

$28.19

92066

PLUG,PT1/2X12.5

92066-0002

$8.98

92144

SPRING

92144-1551

$4.09

92151

BOLT,6X14

92151-3788

$2.34

92152

COLLAR,GUIDE

92152-3737

$8.98

92153

BOLT,FLANGED-SMALL,6X20

92153-3734

$4.13

92200

WASHER,6X20X3.2

92200-0120

$2.12

132

BOLT-FLANGED-SMALL,6X16

132BD0616

$4.12

132A

BOLT-FLANGED-SMALL,6X20

132BD0620

$4.12

411

WASHER-PLAIN,6MM

411S0600

$2.06

551

PIN-DOWEL

551R0408

$5.38

670

O RING,14MM

670D2014

$5.52

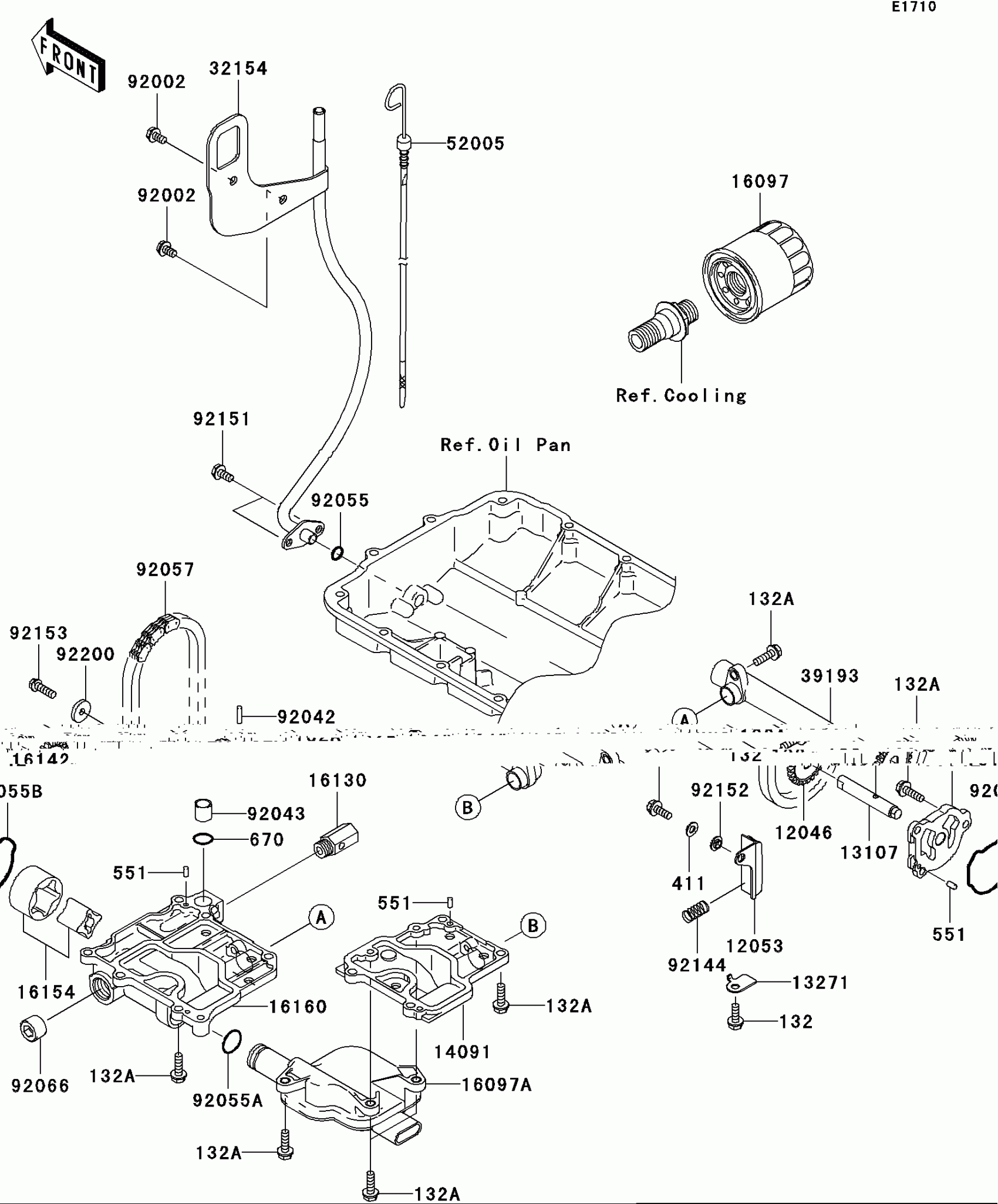

Kawasaki Ultra 250X Oil Pump Diagram

SPROCKET,23T

GUIDE-CHAIN

SHAFT

PLATE

COVER

FILTER-ASSY-OIL

FILTER-ASSY-OIL

VALVE-ASSY-RELIEF

COVER-PUMP

ROTOR-PUMP

BODY,OIL PUMP

PIPE,OIL LEVEL

PIPE-OIL

GAUGE,OIL LEVEL

BOLT,6X12

PIN,DOWEL,4X15.8

PIN,11.5X14X14

RING-O,9.8X2.4

RING-O,19.8X1.9

RING-O

CHAIN,OIL PUMP,98XRH2010-52L

PLUG,PT1/2X12.5

SPRING

BOLT,6X14

COLLAR,GUIDE

BOLT,FLANGED-SMALL,6X20

WASHER,6X20X3.2

BOLT-FLANGED-SMALL,6X16

BOLT-FLANGED-SMALL,6X20

WASHER-PLAIN,6MM

PIN-DOWEL

O RING,14MM
