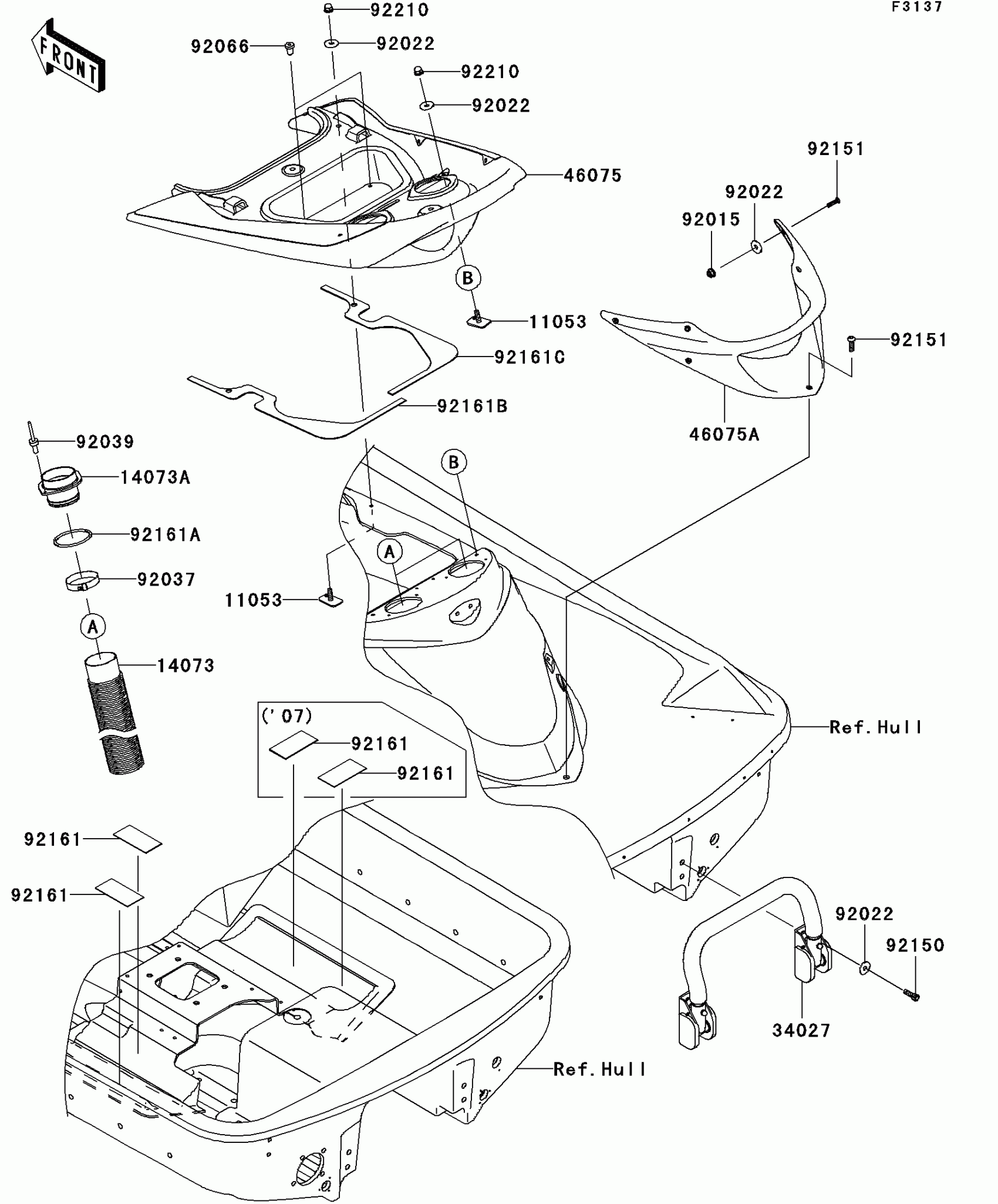

Kawasaki Ultra 250X Hull Rear Fittings Diagram

Description

Price

11053

BRACKET

11053-3776

$9.48

14073

DUCT,L=800

14073-3804

$22.96

14073A

DUCT

14073-3805

$6.67

34027

STEP-ASSY

34027-3709

Unavailable

46075

GRIP,RR,UPP

46075-3763

$344.19

46075A

GRIP,HANDLE

46075-3765

$25.81

92015

NUT,6MM

92015-3767

$4.69

92022

WASHER,6.5X20X1.5

92022-3710

$3.65

92037

CLAMP

92037-3738

$6.89

92039

RIVET

92039-3775

$1.70

92066

PLUG

92066-3773

$1.75

92150

BOLT,SOCKET,6X18

92150-3775

$4.69

92151

BOLT,SOCKET,6X20

92151-1749

$2.63

92161

DAMPER

92161-3728

$5.64

92161A

DAMPER

92161-3769

$3.87

92161B

DAMPER

92161-3781

$20.37

92161C

DAMPER

92161-3782

$20.37

92210

NUT,CAP,6MM

92210-3785

$5.65
