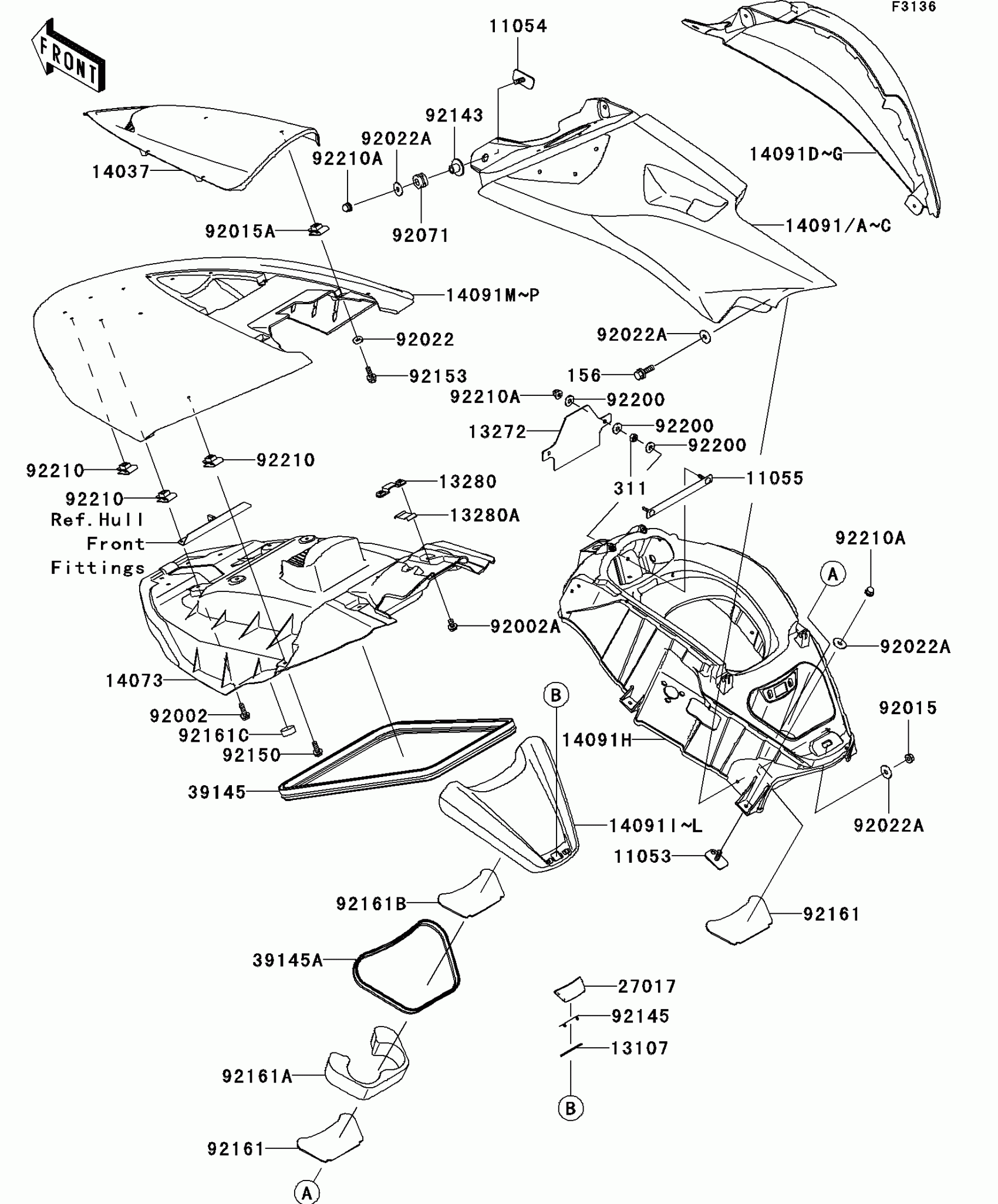

Kawasaki Ultra 250X Hull Middle Fittings Diagram

#

Description
Price

11053

BRACKET

11053-3776

$9.17

11054

BRACKET

11054-3741

Unavailable

11055

BRACKET,INTAKE COVER

11055-3707

$20.75

13107

SHAFT

13107-3790

$2.98

13272

PLATE,INTAKE COVER

13272-3710

$17.07

13280

HOLDER,ROD

13280-3749

$11.80

13280A

HOLDER,ROD

13280-3751

$4.27

14037

SCREEN,METER COVER

14037-3711

Unavailable

14073

DUCT,HATCH,INNER

14073-3806

$176.24

14091

COVER,SIDE,LH,S.RED

14091-3780-H1

$127.99

14091B

COVER,SIDE,LH,BLUE

14091-3780-16F

$123.86

14091C

COVER,SIDE,LH,L.GREEN

14091-3780-777

$130.54

14091D

COVER,SIDE,RH,S.RED

14091-3781-H1

$139.90

14091F

COVER,SIDE,RH,BLUE

14091-3781-16F

$130.38

14091G

COVER,SIDE,RH,L.GREEN

14091-3781-777

$136.77

14091H

COVER,HANDLE,F.BLACK

14091-3782-6Z

$166.52

14091I

COVER,CENTER STORAGE,S.RED

14091-3783-H1

Unavailable

14091K

COVER,CENTER STORAGE,BLUE

14091-3783-16F

Unavailable

14091L

COVER,CENTER STORAGE,L.GREEN

14091-3783-777

Unavailable

14091M

COVER,HATCH,S.RED

14091-3784-H1

$242.18

14091O

COVER,HATCH,BLUE

14091-3784-16F

$254.46

14091P

COVER,HATCH,L.GREEN

14091-3784-777

$254.46

27017

LOCK,CENTER STORAGE

27017-3726

$8.27

39145

TRIM-SEAL

39145-3793

$123.36

39145A

TRIM-SEAL,L=720

39145-3802

$44.21

92002

BOLT,6X20

92002-3755

$3.57

92002A

BOLT,6X12

92002-3763

$3.57

92015

NUT,LOCK,6MM

92015-3766

$4.46

92015A

NUT,CLIP,5MM

92015-3830

$6.04

92022

WASHER,5X16X1.5

92022-3041

$3.19

92022A

WASHER,6.5X20X1.5

92022-3710

$2.76

92071

GROMMET

92071-3716

$4.39

92143

COLLAR

92143-3750

$6.73

92145

SPRING

92145-3729

$4.24

92150

BOLT,6X18

92150-3729

$3.57

92153

BOLT,5X20

92153-3744

$2.34

92161

DAMPER,CENTER STORAGE

92161-3773

$4.63

92161A

DAMPER,CENTER STORAGE

92161-3775

$4.90

92161B

DAMPER,CENTER STORAGE

92161-3777

$4.90

92161C

DAMPER

92161-3790

$3.54

92200

WASHER,6.5X16X2.0

92200-1543

$1.68

92210

NUT,6MM

92210-3768

$4.39

92210A

NUT,CAP,6MM

92210-3785

$4.27

156

BOLT-WP,6X20

156R0620

$2.76

311

NUT-HEX,6MM

311R0600

$0.65
