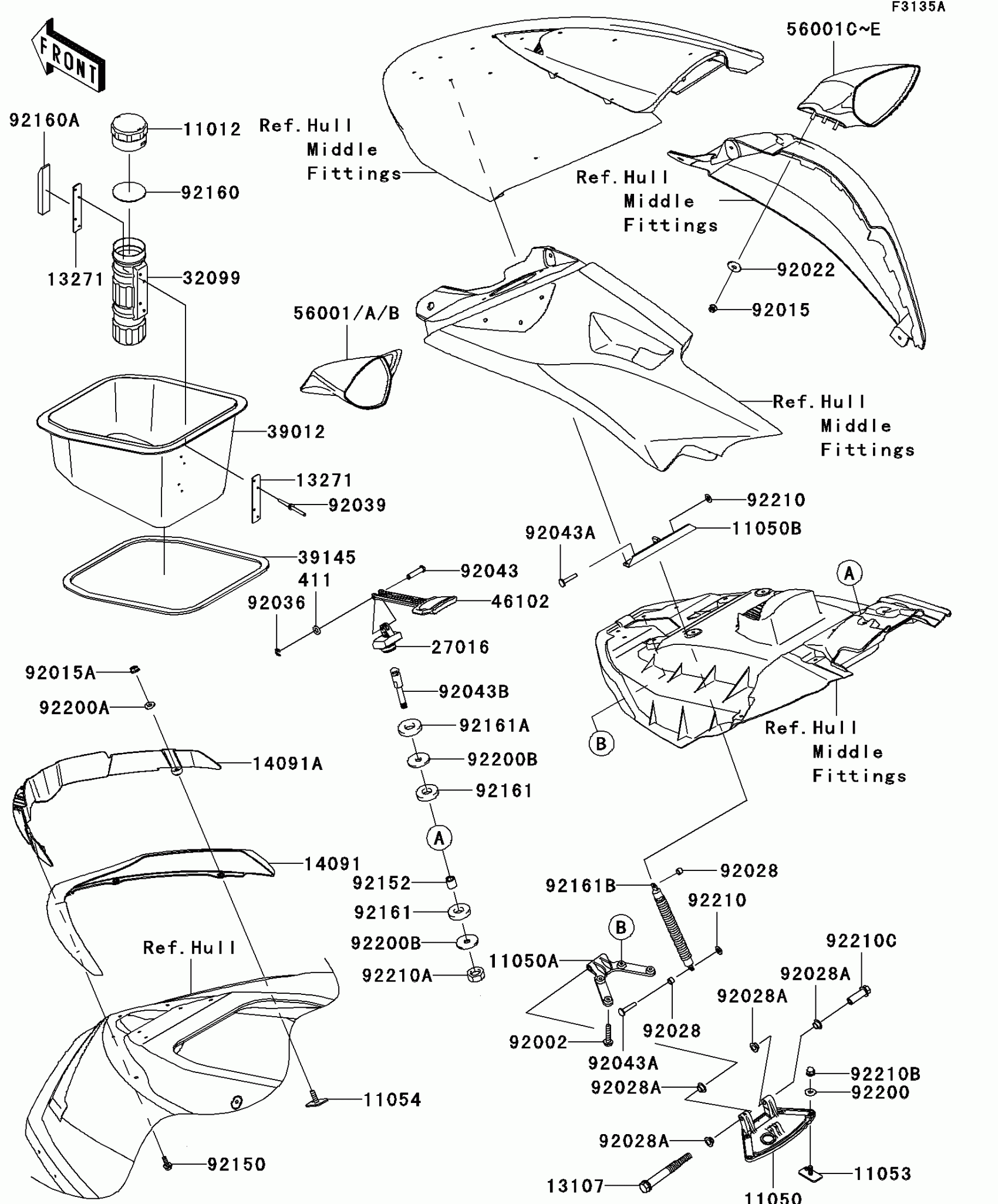

Kawasaki Ultra 250X Hull Front Fittings(B8F) Diagram

#

Description
Price

11012

CAP,FIRE EXTINGUISHER

11012-3766

$10.30

11050

BRACKET

11050-3743

$82.73

11050A

BRACKET

11050-3744

$63.92

11050B

BRACKET

11050-3778

Unavailable

11053

BRACKET

11053-3776

$9.48

11054

BRACKET

11054-3741

Unavailable

13107

SHAFT,FRONT HINGE

13107-3800

$36.54

13271

PLATE,FIRE EXTINGUISHER

13271-3775

$12.66

14091

COVER,FR,TOP

14091-3779

$155.05

14091A

COVER,WATER PROTECT

14091-3788

$32.37

27016

LOCK-ASSY,HATCH

27016-3759

$49.23

32099

CASE,FIRE EXTINGUISHER

32099-3769

$19.37

39012

CASE-STORAGE

39012-3744

Unavailable

39145

TRIM-SEAL,L=1627

39145-3807

$23.84

46102

ROD,HATCH OPENER

46102-3731

$11.61

56001

MIRROR-ASSY,LH,S.RED

56001-3725-H1

$154.76

56001A

MIRROR-ASSY,LH,BLUE

56001-3725-16F

$154.76

56001B

MIRROR-ASSY,LH,L.GREEN

56001-3725-777

$154.76

56001C

MIRROR-ASSY,RH,S.RED

56001-3726-H1

$154.76

56001D

MIRROR-ASSY,RH,BLUE

56001-3726-16F

$154.76

56001E

MIRROR-ASSY,RH,L.GREEN

56001-3726-777

$154.76

92002

BOLT,6X30

92002-3726

$4.69

92015

NUT,LOCK,6MM

92015-3766

$5.91

92015A

NUT,6MM

92015-3767

$4.69

92022

WASHER,6.5X20X1.5

92022-3710

$3.65

92028

BUSHING

92028-3765

$3.29

92028A

BUSHING

92028-3770

$2.71

92036

RING,SNAP

92036-518

$1.56

92039

RIVET

92039-3783

$8.05

92043

PIN,6X27.5

92043-3732

$9.97

92043A

PIN,6X33

92043-3748

$11.20

92043B

PIN

92043-3760

Unavailable

92150

BOLT,5X16

92150-3778

$4.65

92152

COLLAR,8.2X14X13.2

92152-3750

$7.47

92160

DAMPER

92160-3814

$7.91

92160A

DAMPER

92160-3821

$8.86

92161

DAMPER

92161-3739

$6.18

92161A

DAMPER

92161-3747

$5.12

92161B

DAMPER,HATCH

92161-3778

Unavailable

92200

WASHER,6.5X16X1.0

92200-3712

$3.73

92200A

WASHER,6.5X14.5X1.5

92200-3775

$1.74

92200B

WASHER,8.5X32X2

92200-3786

$5.79

92210

NUT,SPEED,6MM

92210-3739

$1.86

92210A

NUT,LOCK,8MM

92210-3742

$6.57

92210B

NUT,CAP,6MM

92210-3785

$5.65

92210C

NUT,8MM

92210-3795

$23.19

411

WASHER-PLAIN,6MM

411S0600

$2.06
