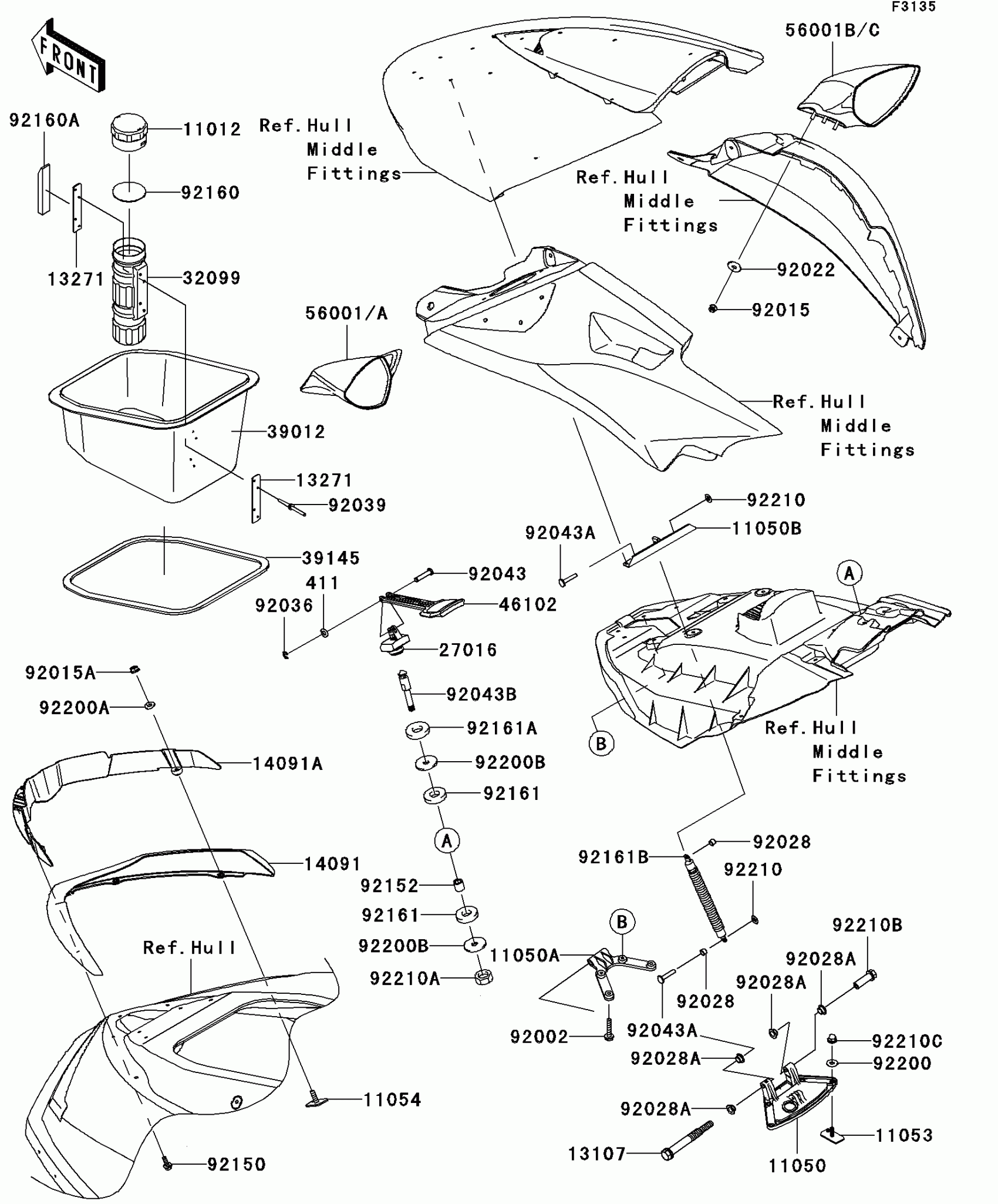

Kawasaki Ultra 250X Hull Front Fittings(B7F) Diagram

#

Description
Price

11012

CAP,FIRE EXTINGUISHER

11012-3766

$7.83

11050

BRACKET

11050-3743

$84.32

11050A

BRACKET

11050-3744

$65.13

11050B

BRACKET

11050-3778

Unavailable

11053

BRACKET

11053-3776

$9.17

11054

BRACKET

11054-3741

Unavailable

13107

SHAFT

13107-3767

$38.35

13271

PLATE,FIRE EXTINGUISHER

13271-3775

$12.07

14091

COVER,FR,TOP

14091-3779

$158.14

14091A

COVER,WATER PROTECT

14091-3788

$35.24

27016

LOCK-ASSY,HATCH

27016-3759

$51.54

32099

CASE,FIRE EXTINGUISHER

32099-3769

$14.60

39012

CASE-STORAGE

39012-3744

Unavailable

39145

TRIM-SEAL,L=1627

39145-3807

$23.95

46102

ROD,HATCH OPENER

46102-3731

$11.81

56001

MIRROR-ASSY,LH,S.RED

56001-3725-H1

$157.84

56001A

MIRROR-ASSY,LH,M.P.SILVER

56001-3725-IS

$157.84

56001B

MIRROR-ASSY,RH,S.RED

56001-3726-H1

$157.84

56001C

MIRROR-ASSY,RH,M.P.SILVER

56001-3726-IS

$157.84

92002

BOLT,6X30

92002-3726

$3.57

92015

NUT,LOCK,6MM

92015-3766

$4.46

92015A

NUT,6MM

92015-3767

$3.57

92022

WASHER,6.5X20X1.5

92022-3710

$2.76

92028

BUSHING

92028-3765

$2.28

92028A

BUSHING

92028-3770

$1.90

92036

RING,SNAP

92036-518

$1.37

92039

RIVET

92039-3783

$6.15

92043

PIN,6X27.5

92043-3732

$9.63

92043A

PIN,6X33

92043-3748

$10.76

92043B

PIN

92043-3760

Unavailable

92150

BOLT,5X16

92150-3778

$3.54

92152

COLLAR,8.2X14X13.2

92152-3750

$7.66

92160

DAMPER

92160-3814

$7.76

92160A

DAMPER

92160-3821

$8.63

92161

DAMPER

92161-3739

$4.20

92161A

DAMPER

92161-3747

$3.52

92161B

DAMPER,HATCH

92161-3778

Unavailable

92200

WASHER,6.5X16X1.0

92200-3712

$2.84

92200A

WASHER,6.5X14.5X1.5

92200-3775

$1.30

92200B

WASHER,8.5X32X2

92200-3786

$4.39

92210

NUT,SPEED,6MM

92210-3739

$1.59

92210A

NUT,LOCK,8MM

92210-3742

$5.71

92210B

NUT,8MM

92210-3748

$20.53

92210C

NUT,CAP,6MM

92210-3785

$4.27

411

WASHER-PLAIN,6MM

411S0600

$1.49
