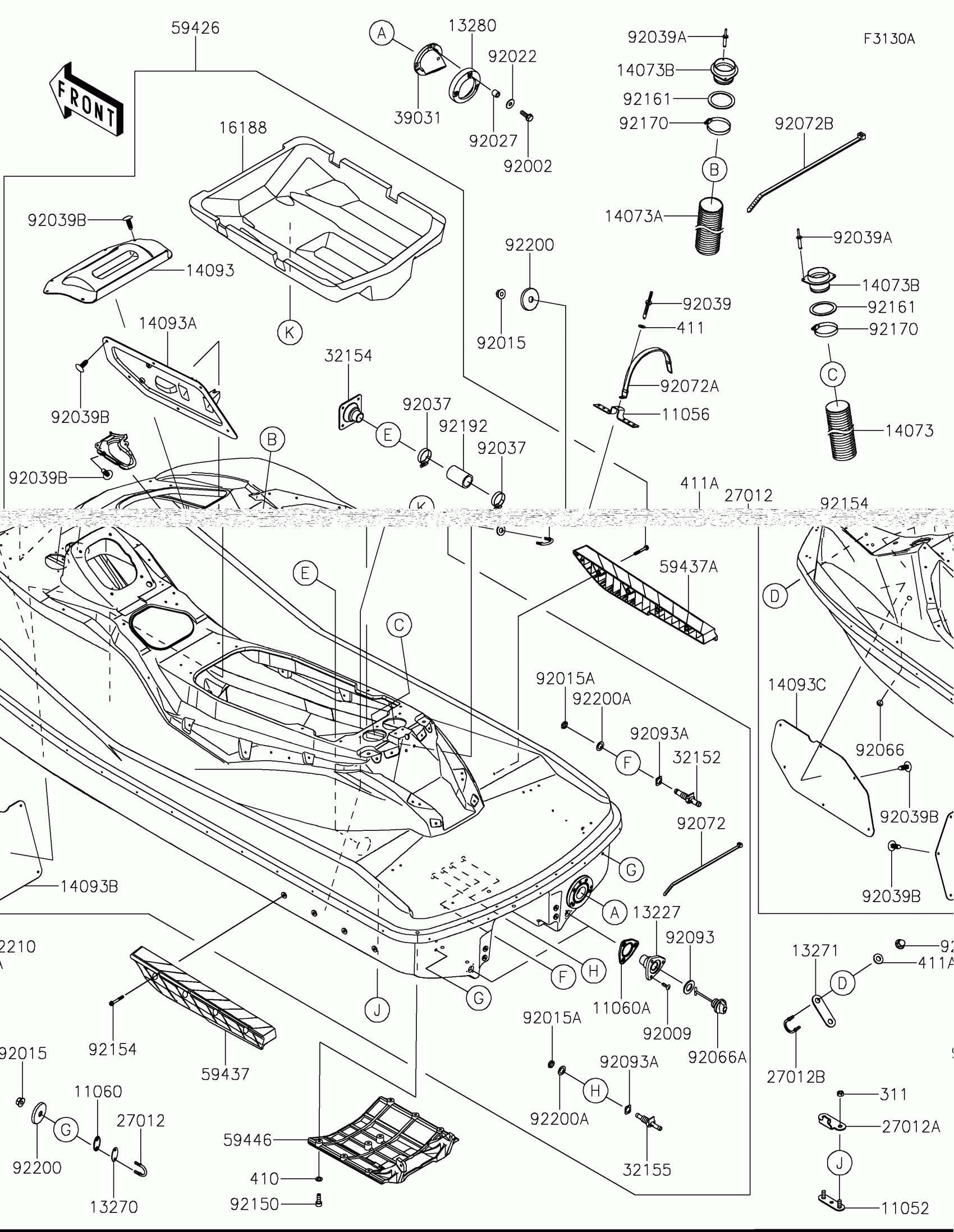

Kawasaki Ultra 160LX-S Hull(BSFNN) Diagram

#

Description
Price

11052

BRACKET,RR DUCT

11052-3712

$9.05

11056

BRACKET,WATER MUFFLER

11056-3722

$12.65

11060

GASKET,U HOOK,RR

11060-3800

$6.20

11060A

GASKET,DRAIN PLUG

11060-3801

$6.61

13227

HOUSING,DRAIN PLUG,F.BLACK

13227-3721-6Z

$7.98

13270

PLATE

13270-3860

$8.38

13271

PLATE

13271-3724

$4.31

13280

HOLDER,EXHAUST VALVE

13280-3718

$27.61

14073

DUCT

14073-0868

$16.82

14073A

DUCT,L=800

14073-0878

$22.96

14073B

DUCT

14073-3805

$6.67

14093

COVER,BATTERY

14093-1162

$16.84

14093A

COVER,STORAGE CASE,RH

14093-1163

$13.58

14093B

COVER,STORAGE CASE,RR

14093-1211

$10.94

14093C

COVER,STORAGE CASE,LH

14093-1212

$17.97

16188

FLOAT

16188-0063

$41.28

27012

HOOK

27012-3797

$32.29

27012A

HOOK

27012-3816

$9.19

27012B

HOOK

27012-3821

$27.27

32152

PIPE

32152-3749

$7.09

32154

PIPE,DRIVE SHAFT

32154-3714

$33.24

32155

PIPE,COOLING

32155-1511

$7.09

39031

CAP-END

39031-3704

$40.86

59426

HULL-COMP,BLACK

59426-0041-650

$4,992.06

59437

STABILIZER,LH,F.BLACK

59437-3749-6Z

$62.63

59437A

STABILIZER,RH,F.BLACK

59437-3750-6Z

$62.63

59446

COVER-JET PUMP

59446-0004

$168.37

92002

BOLT,6X20

92002-3755

$4.69

92009

SCREW,TAPPING,4X16

92009-3849

$1.59

92015

NUT,FLANGED,8MM

92015-1933

$3.92

92015A

NUT,20MM

92015-3738

$7.31

92022

WASHER

92022-567

$2.67

92027

COLLAR,6.2X10X10

92027-3705

$8.86

92037

CLAMP

92037-3009

$3.70

92039

RIVET

92039-0808

$1.63

92039A

RIVET

92039-3775

$1.70

92039B

RIVET

92039-3788

$3.39

92066

PLUG

92066-1306

$5.46

92066A

PLUG,RR,DRAIN,F.BLACK

92066-3783-6Z

$17.50

92072

BAND,L=188.85

92072-0105

$1.73

92072A

BAND,314X18

92072-3814

$17.91

92072B

BAND,L=608.22

92072-3884

$3.35

92093

SEAL

92093-3720

$3.62

92093A

SEAL

92093-3784

$3.89

92150

BOLT,SOCKET,6X18

92150-3775

$4.69

92154

BOLT,FLANGED,8X55

92154-1123

$9.73

92161

DAMPER

92161-3769

$3.87

92170

CLAMP

92170-1679

$6.63

92192

TUBE,39X51X78

92192-3756

$10.39

92200

WASHER

92200-3779

$5.30

92200A

WASHER,21X34X2

92200-3802

$6.22

92210

NUT,CAP,8MM

92210-1132

$4.18

311

NUT-HEX,6MM

311R0600

$0.70

410

WASHER-PLAIN-SMALL,6MM

410S0600

$0.78

411

WASHER-PLAIN,5MM

411S0500

$0.94

411A

WASHER-PLAIN,8MM

411S0800

$3.09
