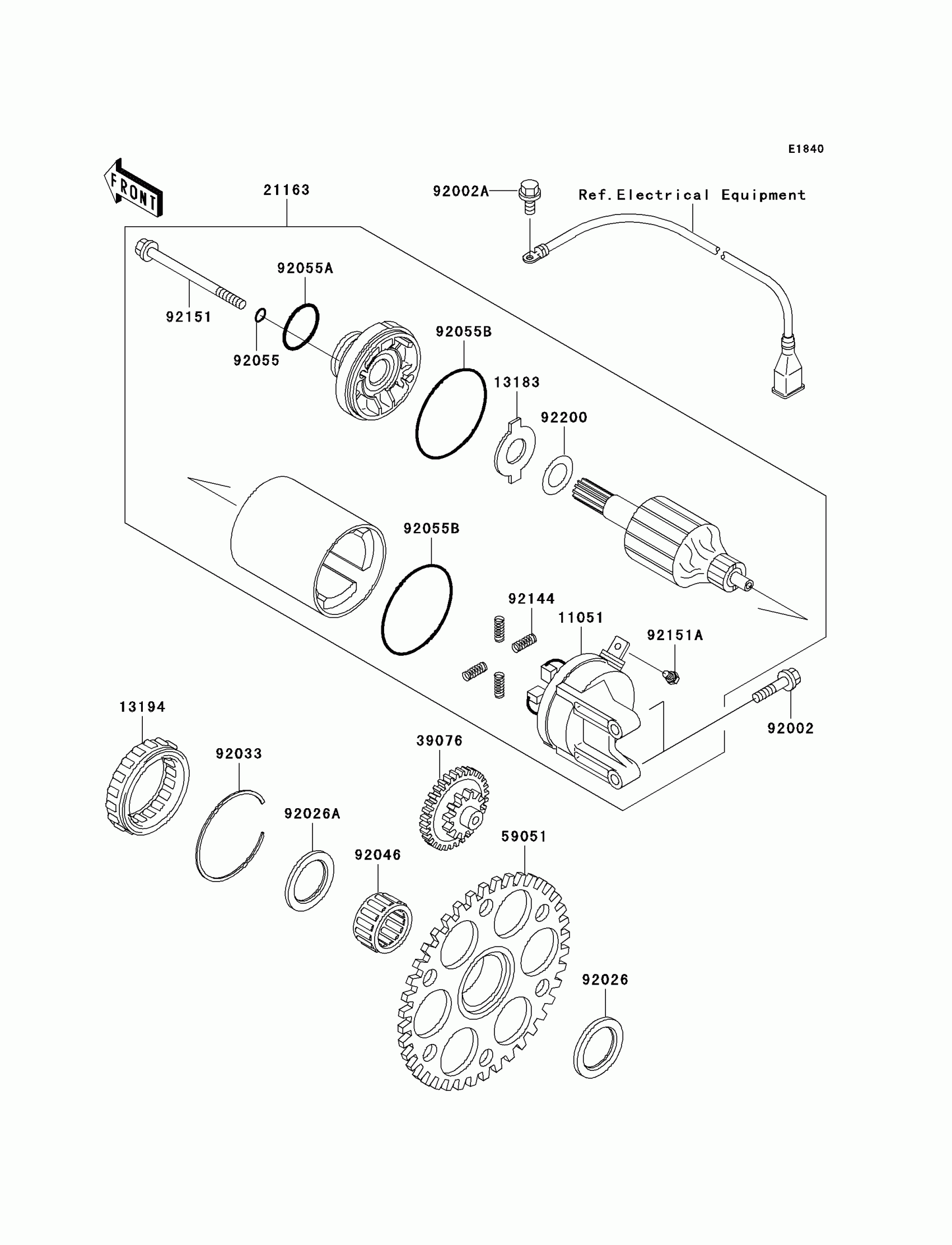

Kawasaki Ultra 150 Starter Motor(JH1200-A1/A2) Diagram

Description

Price

11051

BRACKET,STARTER MOTOR

11051-3715

$195.22

13183

PLATE

13183-1460

$12.92

13194

CLUTCH-ONEWAY

13194-3704

$108.41

21163

STARTER-ELECTRIC

21163-3715

$641.35

39076

LIMITER

39076-3703

$174.46

59051

GEAR-SPUR

59051-3706

$131.50

92002

BOLT,6X25

92002-3714

$5.00

92002A

BOLT,6X12

92002-3763

$4.69

92026

SPACER,28X38X3.0

92026-3738

Unavailable

92026A

SPACER,26.3X38X2.5

92026-3739

Unavailable

92033

RING-SNAP

92033-3731

$6.16

92046

BEARING-NEEDLE,KT283315E01

92046-3701

$19.72

92055

RING-O,4.5MM

92055-1261

$2.87

92055A

RING-O,24.4X3.1

92055-1262

$12.46

92055B

RING-O

92055-1455

$9.86

92144

SPRING,BRUSH

92144-1423

$4.14

92151

BOLT,STARTER MOTOR

92151-3755

Unavailable

92151A

BOLT,STARTER TERMINAL

92151-3756

Unavailable

92200

WASHER

92200-1019

$7.33
