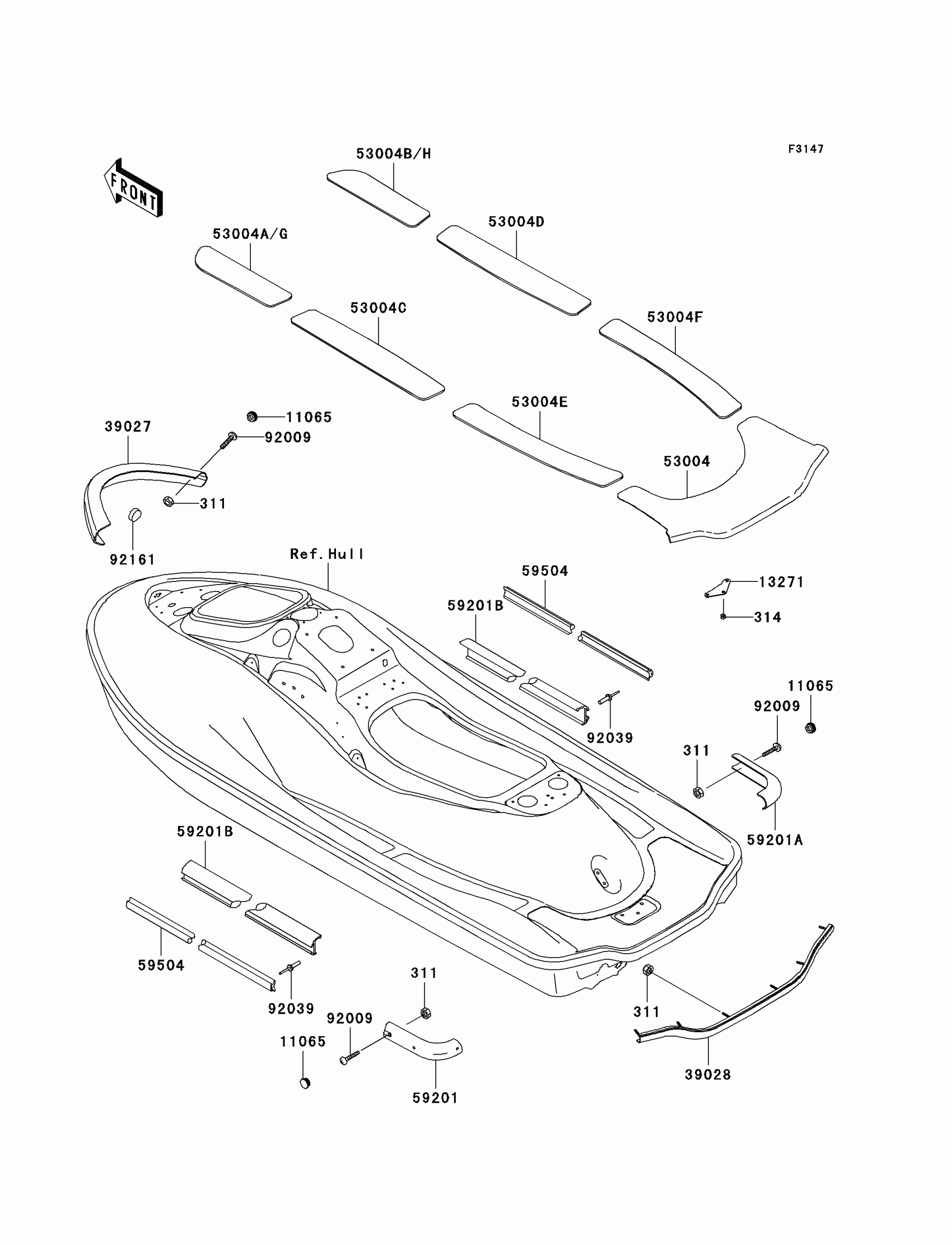

Kawasaki Ultra 150 Pads Diagram

#

Description
Price

311

NUT-HEX,5MM

311R0500

$1.24

314

NUT-HEX-FINE,10MM

314R1000

$1.68

11065

CAP,F.BLACK

11065-3707-6Z

$3.95

13271

PLATE

13271-3759

$17.53

39027

BUMPER-FRONT,F.BLACK

39027-3743-6Z

$204.74

39028

BUMPER-REAR,F.BLACK

39028-3743-6Z

$187.91

53004

MAT,RR,F.BLACK

53004-3820-6Z

$191.34

53004C

MAT,MIDDLE,LH

53004-3860

$57.43

53004D

MAT,MIDDLE,RH

53004-3861

$47.70

53004E

MAT,RR,LH

53004-3862

$47.70

53004F

MAT,RR,RH

53004-3863

$47.70

53004G

MAT,FR,LH

53004-3884

$45.14

53004H

MAT,FR,RH

53004-3885

$45.14

59201

BUMPER,CORNER,LH,F.BLACK

59201-3780-6Z

$96.41

59201A

BUMPER,CORNER,RH,F.BLACK

59201-3781-6Z

$92.01

59201B

BUMPER,SIDE,F.BLACK

59201-3786-6Z

Unavailable

59504

INSERT-BOAT FENDER,F.BLACK

59504-3728-6Z

$49.21

92009

SCREW,5X30

92009-3834

$7.59

92039

RIVET

92039-3770

$0.98

92161

DAMPER

92161-3713

Unavailable
