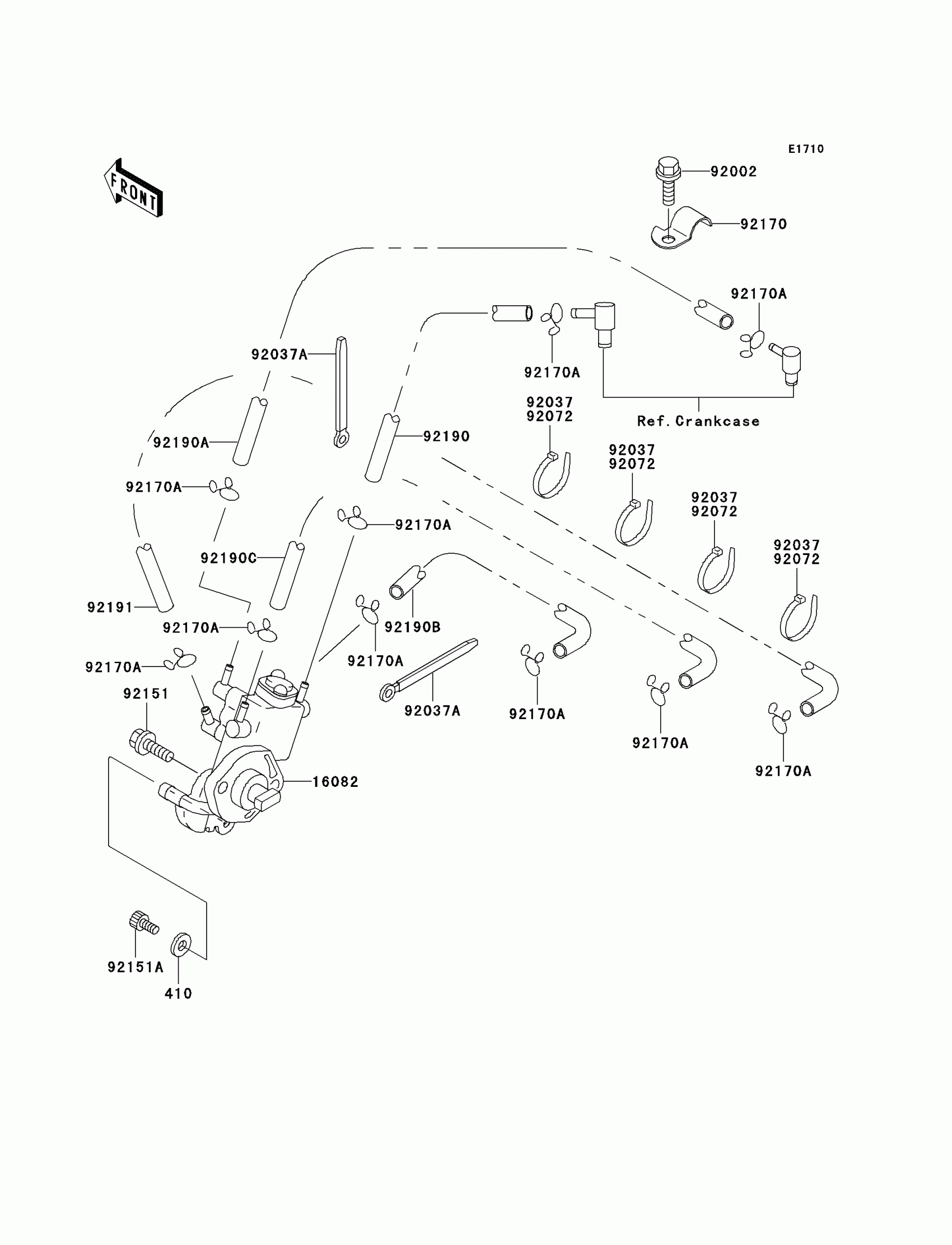

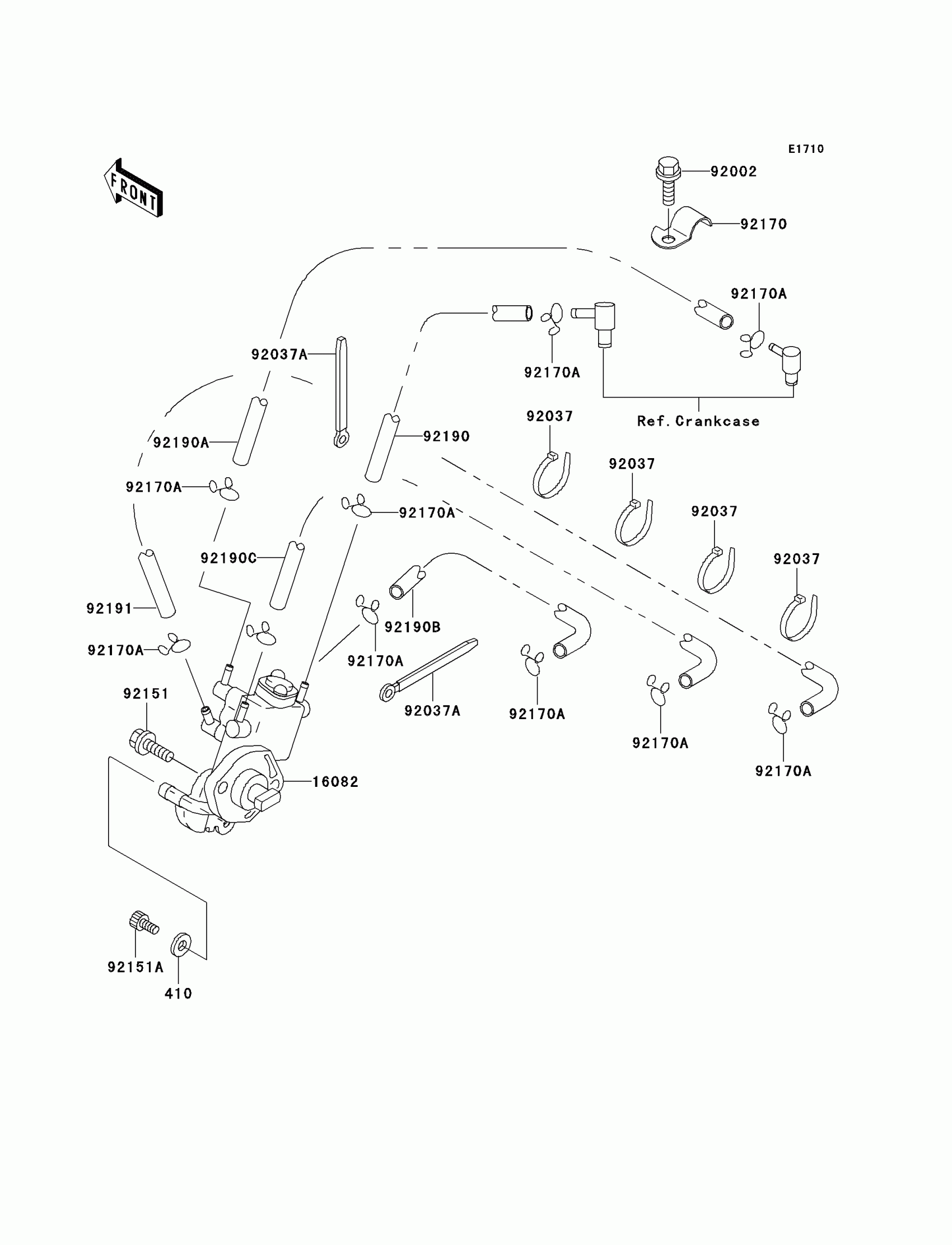

Kawasaki Ultra 150 Oil Pump Diagram

Description

Price

410

W-PLAIN-S,5MM

410S0500

$1.20

16082

PUMP-ASSY-OIL

16082-3728

Unavailable

92002

BOLT,6X16

92002-3728

$3.24

92037

CLAMP

92037-1173

$2.58

92037A

CLAMP,L=100

92037-3736

$4.85

92151

BOLT,6X18

92151-3751

$1.92

92151A

BOLT,SOCKET

92151-3772

Unavailable

92170

CLAMP

92170-3736

$8.58

92170A

CLAMP

92170-3750

$3.65

92190

TUBE,3X6X120

92190-1191

$24.24

92190A

TUBE,3X6X545

92190-3907

$24.24

92190B

TUBE,3X6X420

92190-3945

$12.57

92190C

TUBE,RR,CARBURETOR

92190-3967

$16.98

92191

TUBE,3X6X650

92191-3863

$14.36
