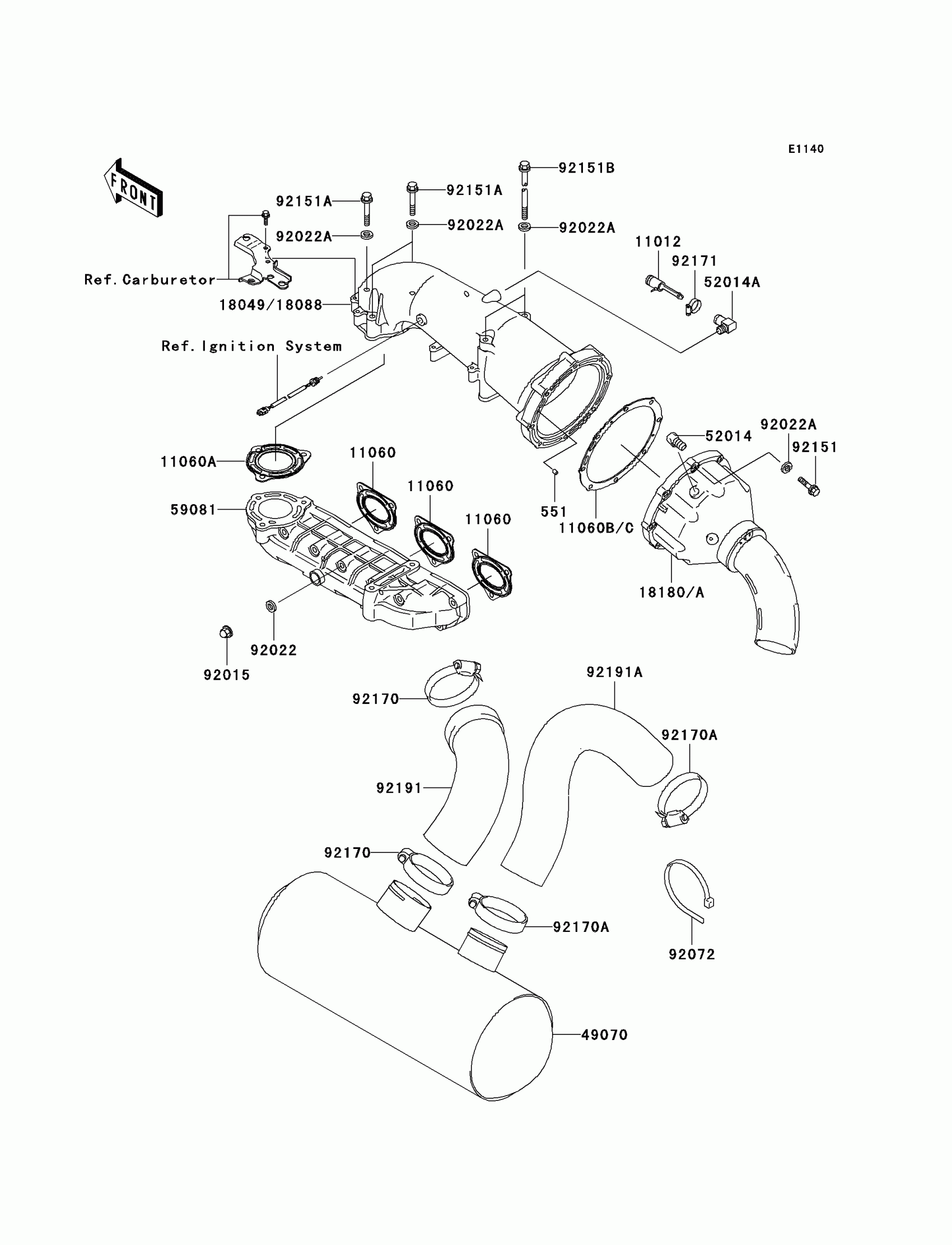

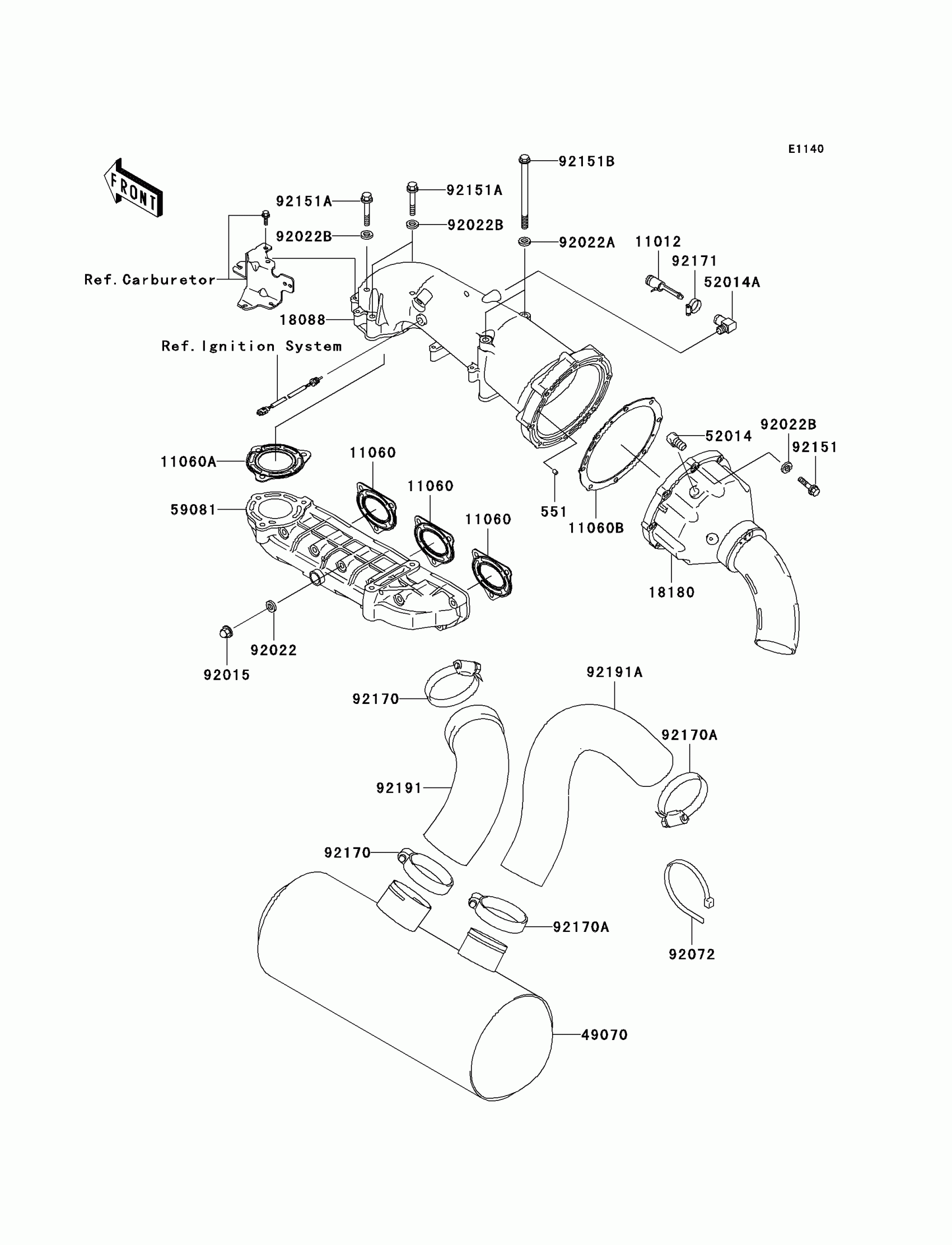

Kawasaki Ultra 150 Muffler(s) Diagram
#
Description
Price
551
PIN-DOWEL
551R0408
$5.38
11012
CAP
11012-3757
$10.97
11060
GASKET,EXHAUST MANIFOLD
11060-3785
$14.38
11060A
GASKET,EXHAUST PIPE
11060-3786
$38.89
11060B
GASKET,MUFFLER BODY
11060-3807
$23.41
18088
PIPE-EXHAUST
18088-3713
$642.40
18180
BODY-MUFFLER
18180-3722
$400.78
49070
MUFFLER-COMP
49070-3733
$363.16
52014
ELBOW
52014-3711
$30.12
52014A
ELBOW
52014-3717
$33.08
59081
MANIFOLD-EXHAUST
59081-3735
$703.69
92015
NUT,CAP,8MM
92015-1371
$5.00
92022
WASHER,8.2X18X1.5
92022-1964
$4.18
92022A
WASHER,10.2X20X1.5
92022-3742
$4.18
92022B
WASHER,8.2X18X1.5
92022-3743
$4.22
92072
BAND,L=368.3
92072-3872
$1.59
92151
BOLT,8X35
92151-3729
$4.78
92151A
BOLT,8X60
92151-3730
$7.27
92151B
BOLT,10X140
92151-3804
$16.48
92170
CLAMP
92170-3760
$11.56
92170A
CLAMP
92170-3764
$10.35
92171
CLAMP
92171-3701
$7.43
92191
TUBE
92191-3835
$132.86
92191A
TUBE,MUFFLER-HULL
92191-3949
$173.93
