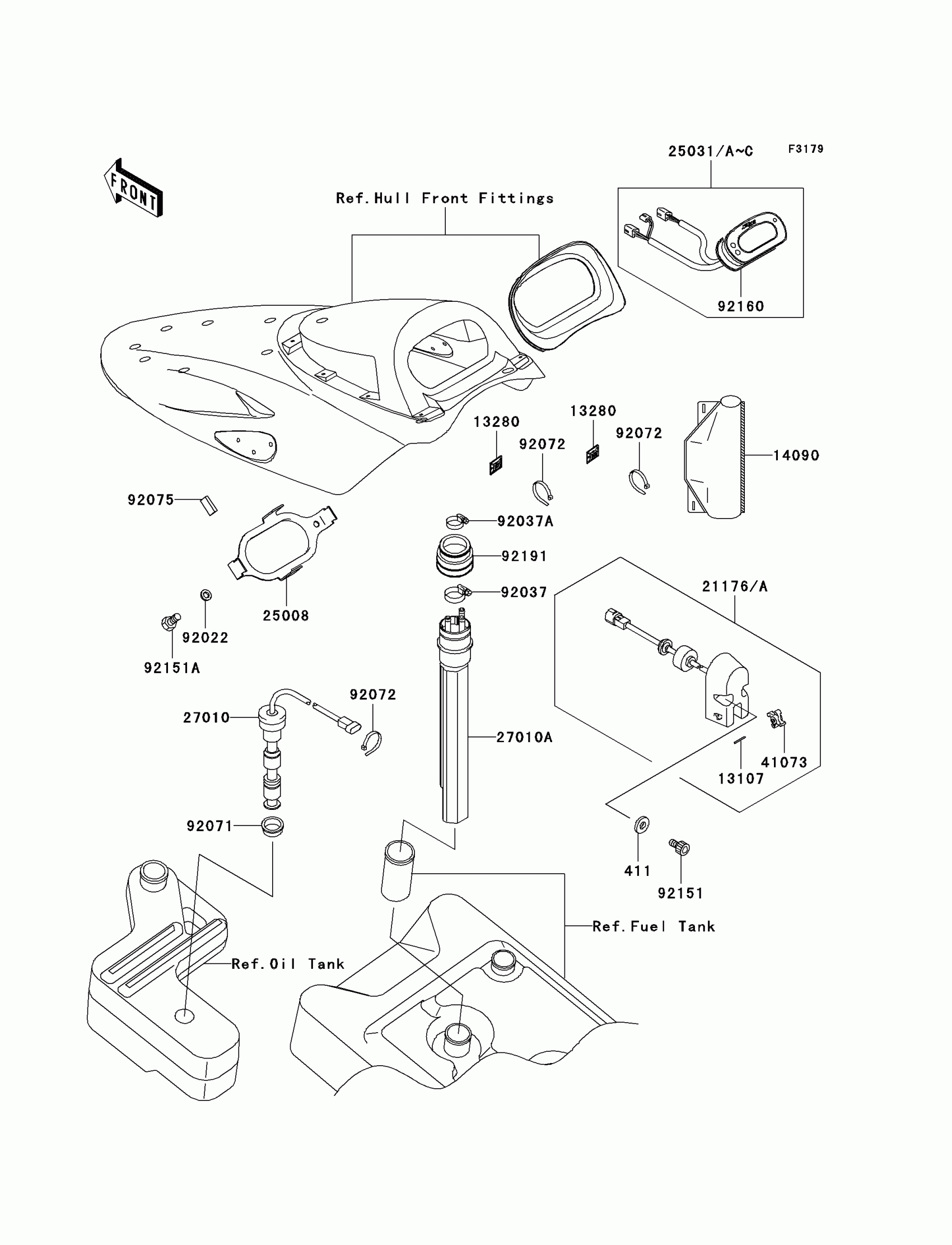

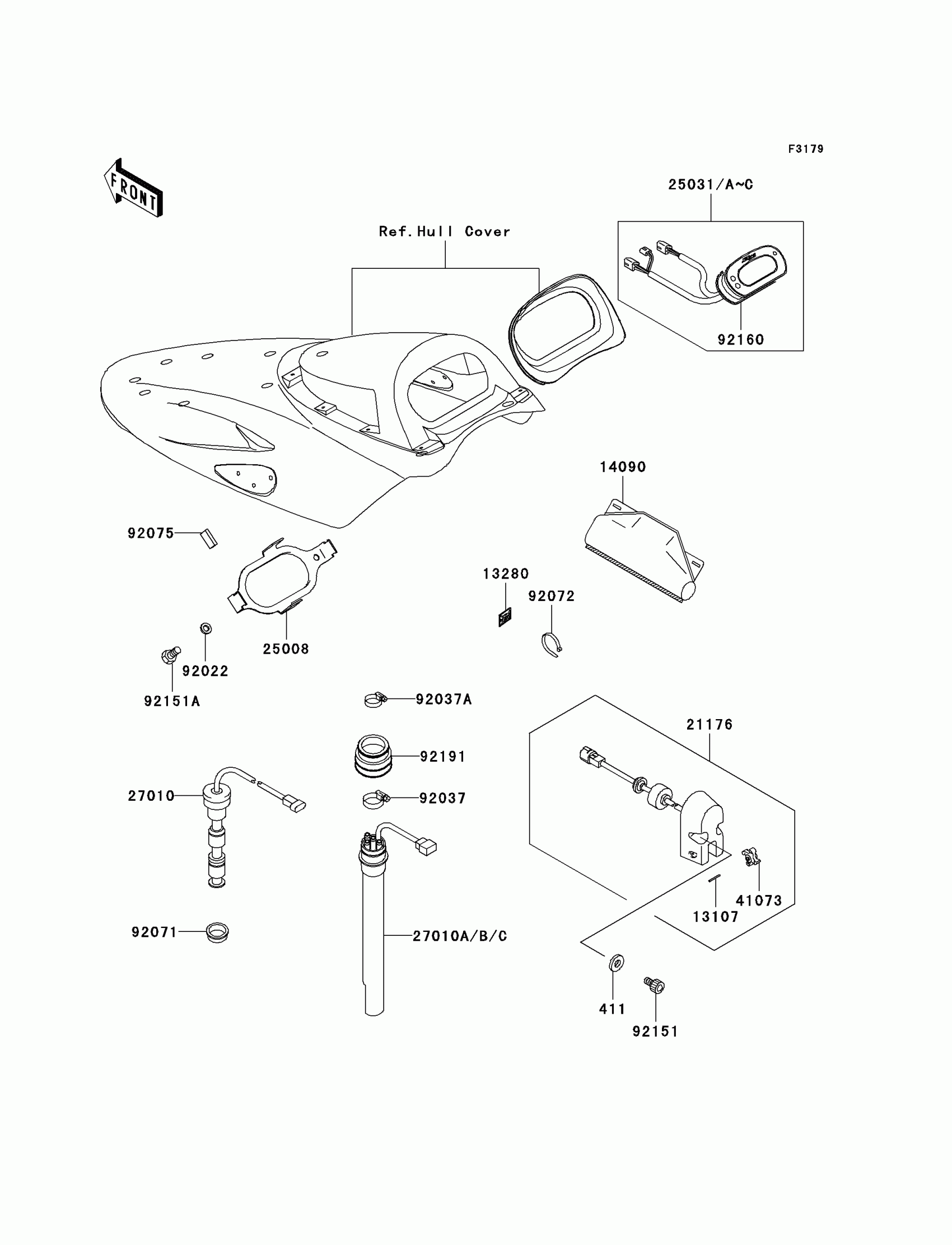

Kawasaki Ultra 150 Meters Diagram

#

Description
Price

411

WASHER-PLAIN,6MM

411S0600

$2.06

13107

SHAFT

13107-3754

$6.11

14090

COVER,COUPLER

14090-1611

$8.51

21176

SENSOR,SPEEDOMETER,J.WHITE

21176-3732-8U

$167.53

25008

BRACKET-METER

25008-3709

$50.01

27010

SWITCH,OIL LEVEL

27010-3765

$161.23

27010C

SWITCH,FUEL LEVEL

27010-3776

$489.17

41073

WHEEL-ASSY,PADDLE

41073-3701

$16.84

92022

WASHER,5X16X1.5

92022-3041

$4.18

92037

CLAMP

92037-3009

$3.70

92037A

CLAMP

92037-3738

$6.89

92071

GROMMET

92071-3824

$4.28

92072

BAND,L=201

92072-3778

$1.84

92075

DAMPER

92075-1446

$4.69

92151

BOLT,6X10

92151-3704

$4.20

92151A

BOLT,5X10

92151-3707

$3.32

92160

DAMPER,METER

92160-3881

$13.66

92191

TUBE

92191-3832

$26.87

13280

HOLDER

13280-3706

$3.77

13280

HOLDER

13280-3706

$3.77

25031B

METER-ASSY,MILE

25031-3718

$1,425.12

25031C

METER-ASSY,KM

25031-3719

Unavailable
