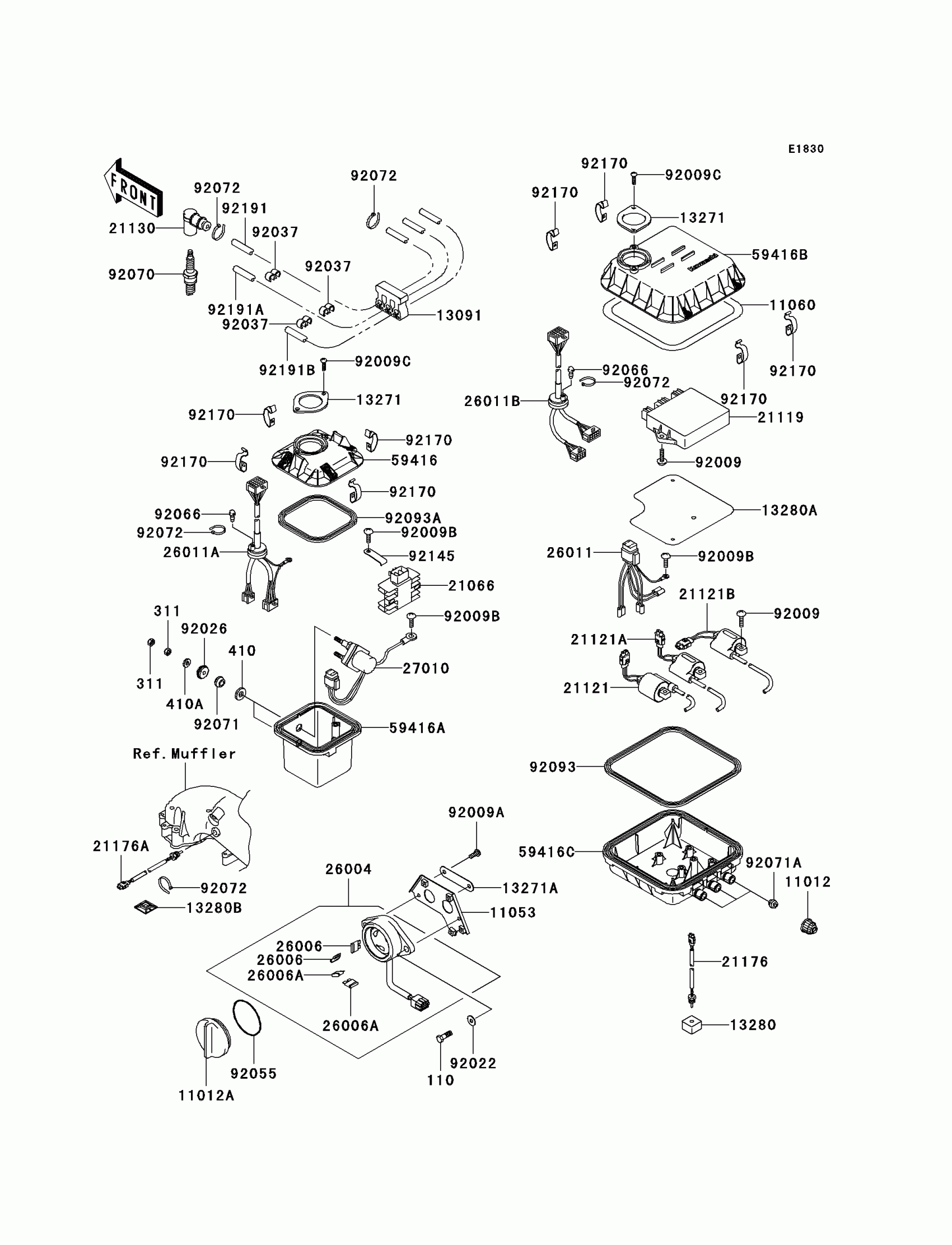

Kawasaki Ultra 150 Ignition System Diagram
#
11012
CAP
11012-3005
$5.54
11012A
CAP
11012-3791
$12.48
11053
BRACKET,FUSE
11053-3726
$40.96
11060
GASKET,ELECTRIC CASE
11060-3805
$42.07
13091
HOLDER
13091-3785
$18.22
13271
PLATE
13271-3707
$14.60
13271A
PLATE
13271-3821
$5.59
13280
HOLDER
13280-3711
$7.55
13280A
HOLDER
13280-3712
$19.72
13280B
HOLDER
13280-3739
Unavailable
21066
REGULATOR-VOLTAGE
21066-3715
$185.23
21119
IGNITER
21119-3765
$756.21
21121
COIL-IGNITION,#1
21121-3714
$136.52
21121A
COIL-IGNITION,#2
21121-3715
$130.31
21121B
COIL-IGNITION,#3
21121-3716
$130.31
21130
CAP-SPARK PLUG
21130-3706
$52.27
21176
SENSOR,INTAKE AIR TEMP
21176-3730
$82.80
21176A
SENSOR,COOLING WATER TEMP
21176-3731
$139.74
26004
FUSE-ASSY
26004-3722
$138.51
26006
FUSE,BLADE,10A,RED
26006-1007
$4.96
26006A
FUSE,BLADE,20A,YELLOW
26006-1051
$4.96
26011
WIRE-LEAD
26011-3857
$99.54
26011A
WIRE-LEAD
26011-3871
$196.79
26011B
WIRE-LEAD
26011-3900
$223.89
27010
SWITCH
27010-3757
$122.20
59416
CASE-ELECTRIC
59416-3747
$45.25
59416A
CASE-ELECTRIC
59416-3748
$78.91
59416B
CASE-ELECTRIC,UPP
59416-3749
$89.42
59416C
CASE-ELECTRIC,LWR
59416-3750
$96.03
92009
SCREW,TAPPING,6X25
92009-1640
$5.23
92009A
SCREW,6X15
92009-3830
$3.32
92009B
SCREW,6X14
92009-3845
$1.06
92009C
SCREW,6X18
92009-3846
$1.86
92022
WASHER
92022-567
$2.67
92026
SPACER
92026-3703
$4.69
92037
CLAMP,HOSE
92037-1603
$5.00
92055
RING-O
92055-1292
$8.42
92066
PLUG
92066-1347
$7.55
92070
PLUG-SPARK,BR9ES(NGK),SOLID
92070-1157
$3.62
92071
GROMMET
92071-3004
$3.99
110
BOLT,6X20
110R0620
$5.31
311
NUT-HEX,6MM
311R0600
$0.70
410
WASHER PLAIN 10MM
410B1000
$0.58
410A
WASHER-PLAIN-SMALL,6MM
410S0600
$0.78
92071A
GROMMET
92071-527
$6.68
92072
BAND,L=99
92072-3871
$2.26
92093
SEAL
92093-3754
$30.51
92093A
SEAL
92093-3756
$15.98
92145
SPRING
92145-3710
$4.74
92170
CLAMP
92170-3765
$8.50
92191
TUBE,8X10X690
92191-3847
$5.54
92191A
TUBE,8X10X570
92191-3848
$7.55
92191B
TUBE,8X10X500
92191-3849
$6.89
