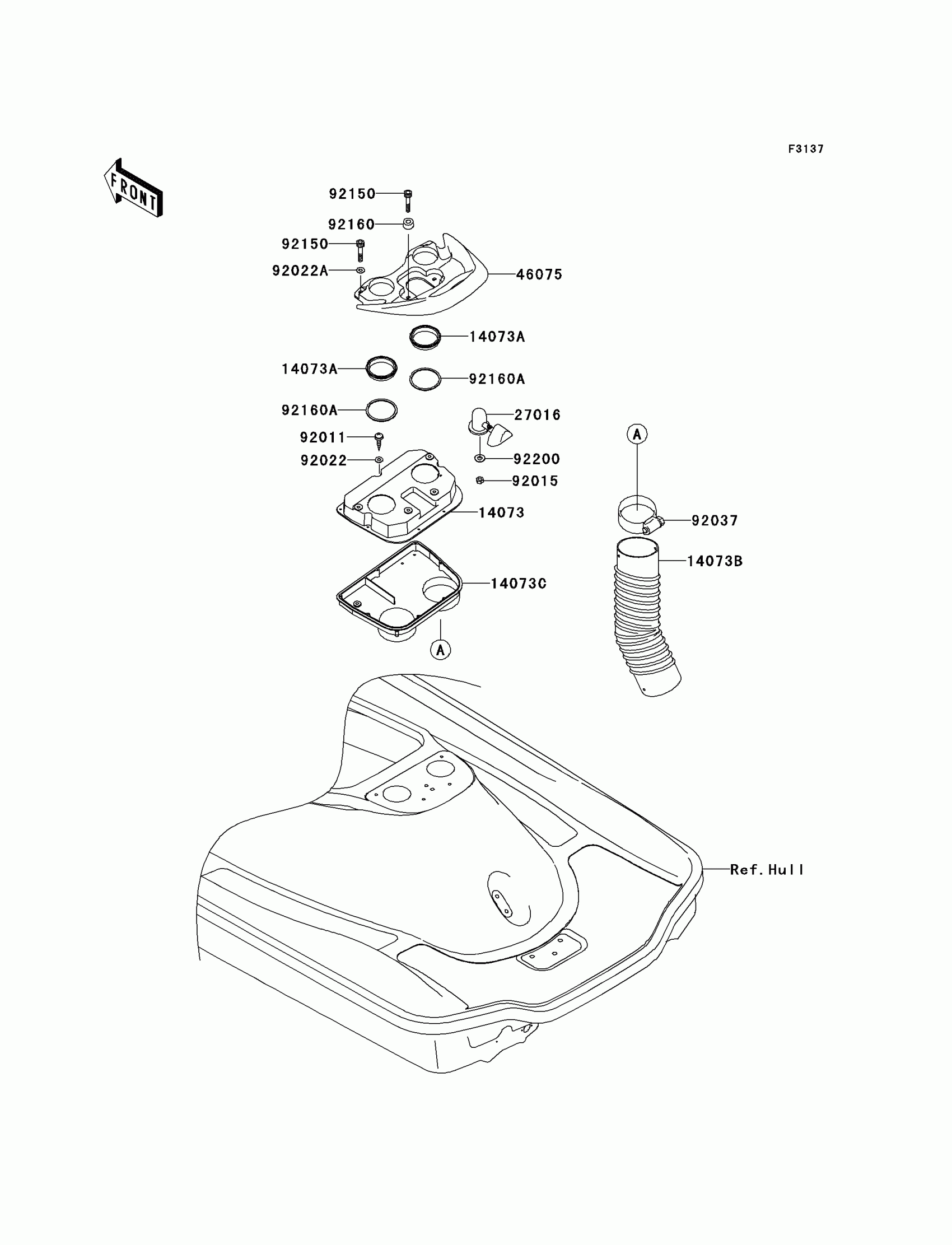

Kawasaki Ultra 150 Hull Rear Fittings Diagram

Description

Price

14073

DUCT,RR,UPP

14073-3767

$77.11

14073A

DUCT

14073-3769

$5.27

14073B

DUCT

14073-3771

$20.68

14073C

DUCT,RR,LWR

14073-3782

$41.63

27016

LOCK-ASSY,SEAT,F.BLACK

27016-3744-6Z

$125.37

46075

GRIP,TAIL,F.BLACK

46075-3746-6Z

$129.20

92011

SCREW

92011-562

$1.23

92015

NUT,FLANGED,8MM

92015-3709

$3.85

92022

WASHER,5X16X1.5

92022-3041

$3.19

92022A

WASHER,6.5X20X1.5

92022-3710

Unavailable

92037

CLAMP,MAX120.7MM

92037-3733

Unavailable

92150

BOLT,SOCKET,6X30

92150-3822

$3.29

92160

DAMPER

92160-3738

$13.64

92160A

DAMPER

92160-3910

$4.29

92200

WASHER,8.5X25X1.5

92200-3717

$4.34
