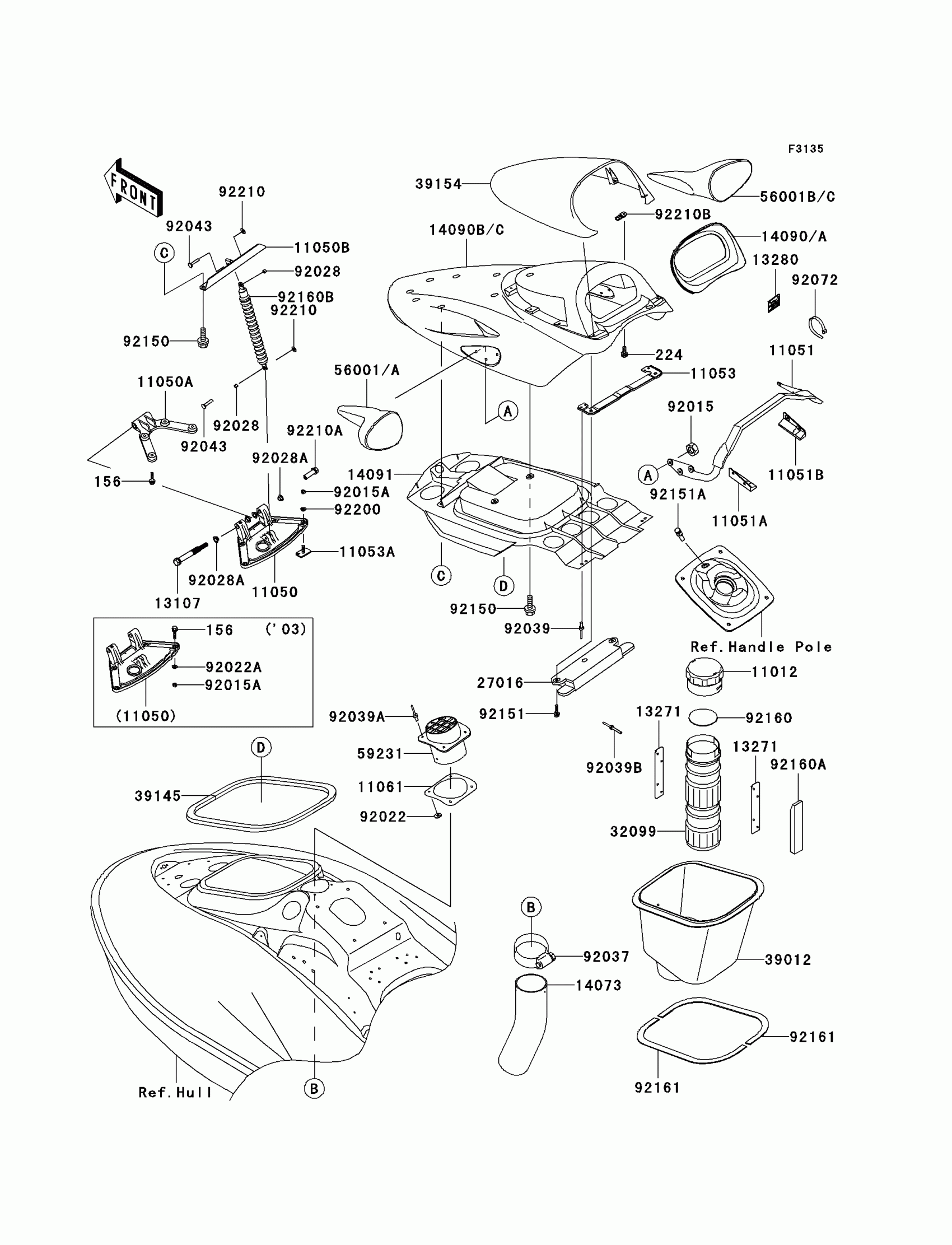

Kawasaki Ultra 150 Hull Front Fittings Diagram

#

Description
Price

11012

CAP,FIRE EXTINGUISHER

11012-3766

$9.90

11050

BRACKET

11050-3743

$84.32

11050A

BRACKET

11050-3744

$65.13

11050B

BRACKET

11050-3778

Unavailable

11051

BRACKET

11051-3707

$245.93

11051A

BRACKET,LH

11051-3745

$32.95

11051B

BRACKET,RH

11051-3746

$32.95

11053

BRACKET

11053-3714

$23.68

11053A

BRACKET

11053-3776

$9.17

11061

GASKET,FRONT DUCT

11061-3703

$11.83

13107

SHAFT

13107-3767

$38.35

13271

PLATE,FIRE EXTINGUISHER

13271-3775

$12.07

13280

HOLDER

13280-3739

Unavailable

14073

DUCT,FR

14073-3784

$17.95

14090A

COVER,METER,L.GREEN

14090-3820-777

$52.50

14090C

COVER,HATCH,L.GREEN

14090-3823-777

$217.47

14091

COVER,DUCT

14091-3730

$51.04

27016

LOCK-ASSY,LID

27016-3753

$176.70

32099

CASE,FIRE EXTINGUISHER

32099-3769

$18.03

39012

CASE-STORAGE

39012-3721

$41.98

39145

TRIM-SEAL

39145-3756

Unavailable

39154

WINDSHIELD

39154-3707

$269.19

56001

MIRROR-ASSY,LH,L.GREEN

56001-3713-777

$219.32

56001B

MIRROR-ASSY,RH,L.GREEN

56001-3714-777

$219.32

59231

FILLER

59231-3725

$17.58

92015

NUT,LOCK,6MM

92015-3766

$4.46

92015A

NUT,6MM

92015-3767

$3.57

92022

WASHER,5X16X1.5

92022-3041

$3.19

92028

BUSHING

92028-3765

$2.28

92028A

BUSHING

92028-3770

$1.90

92037

CLAMP,MAX120.7MM

92037-3733

Unavailable

92039

RIVET

92039-3747

$1.11

92039A

RIVET

92039-3775

$1.25

92039B

RIVET

92039-3783

$6.15

92043

PIN,6X33

92043-3748

$10.76

156

BOLT-WP,6X20

156R0620

$2.76

224

SCREW-PAN-WP-CROS,5X14

224R0514

$2.42

92072

BAND

92072-3857

$1.46

92150

BOLT,6X18

92150-3729

$3.60

92151

BOLT,6X22

92151-3769

$2.42

92151A

BOLT

92151-3776

$13.69

92160

DAMPER

92160-3814

$7.76

92160A

DAMPER

92160-3821

$8.63

92160B

DAMPER

92160-3919

Unavailable

92161

DAMPER

92161-3714

Unavailable

92200

WASHER,6.5X16X1.0

92200-3712

$2.84

92210

NUT,SPEED,6MM

92210-3739

$1.59

92210A

NUT,8MM

92210-3748

$20.53

92210B

NUT

92210-3750

$3.92
