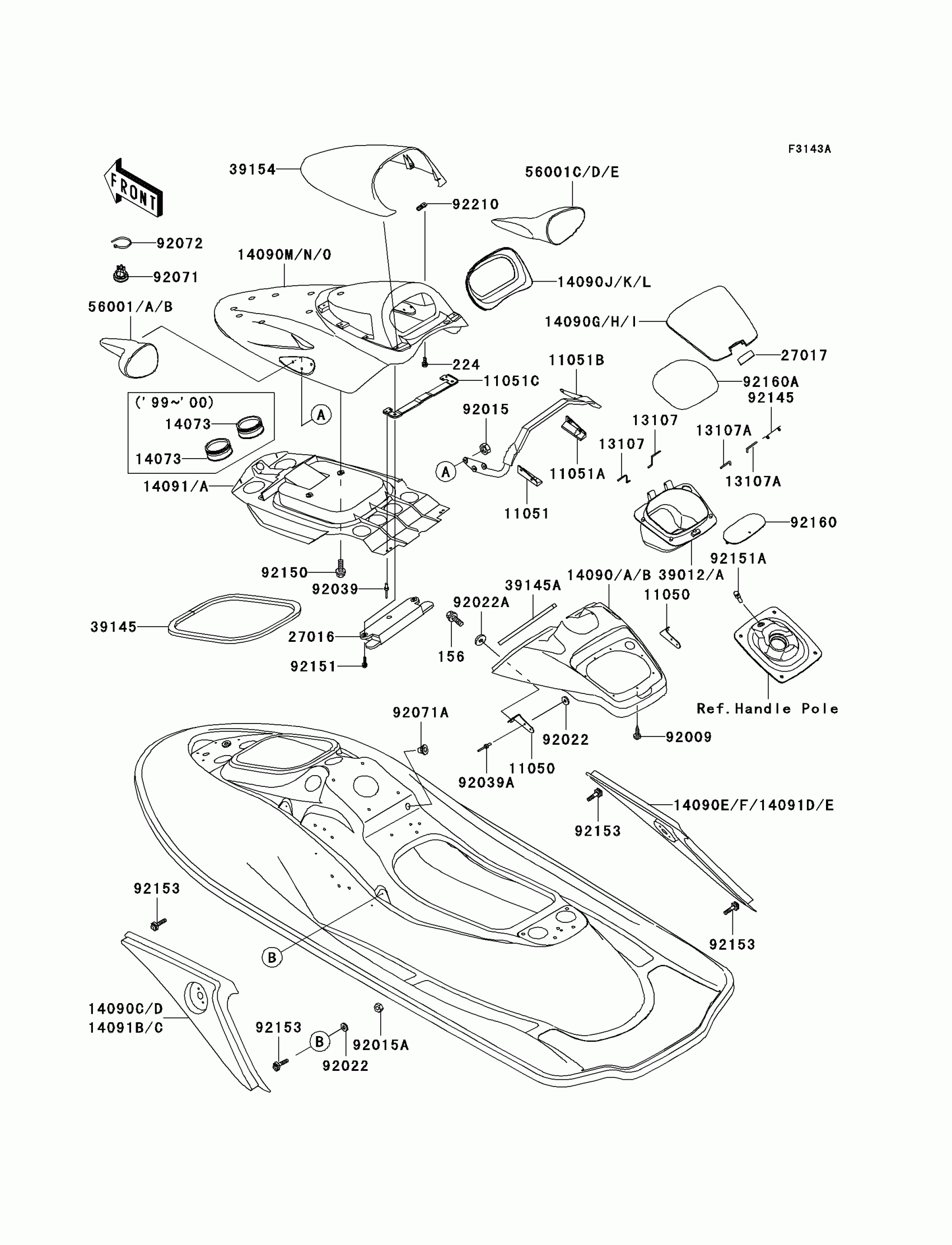

Kawasaki Ultra 150 Hull Cover Diagram
#
11050
BRACKET
11050-3746
$12.32
11051
BRACKET,LH
11051-3745
$32.34
11051A
BRACKET,RH
11051-3746
$32.34
11051B
BRACKET
11051-3753
Unavailable
11051C
BRACKET
11051-3759
Unavailable
13107
SHAFT
13107-3761
$4.46
13107A
SHAFT
13107-3769
$4.09
14090B
COVER,HANDLE,J.WHITE
14090-3809-8C
Unavailable
14090I
COVER,CENTER STORAGE,J.WHITE
14090-3812-8C
$28.53
14090L
COVER,METER,J.WHITE
14090-3820-8C
Unavailable
14090O
COVER,HATCH,J.WHITE
14090-3823-8C
$223.47
14091A
COVER,DUCT
14091-3730
$50.12
14091C
COVER,SIDE,LH,J.WHITE
14091-3731-8C
Unavailable
14091E
COVER,SIDE,RH,J.WHITE
14091-3732-8C
Unavailable
27016
LOCK-ASSY,LID
27016-3753
$173.04
27017
LOCK,CENTER STORAGE,F.BLACK
27017-3720-6Z
$11.01
39012A
CASE-STORAGE
39012-3728
$16.27
39145
TRIM-SEAL
39145-3756
Unavailable
39145A
TRIM-SEAL,L=340
39145-3764
$13.77
156
BOLT-WP,6X18
156R0618
$3.73
224
SCREW-PAN-WP-CROS,5X14
224R0514
$2.97
39154
WINDSHIELD
39154-3707
$263.60
56001B
MIRROR-ASSY,LH,J.WHITE
56001-3713-8C
$224.63
56001E
MIRROR-ASSY,RH,J.WHITE
56001-3714-8C
$224.63
92009
SCREW,TAPPING,5X20
92009-3716
$3.65
92015
NUT,LOCK,6MM
92015-3766
$5.91
92015A
NUT,LOCK,5MM
92015-3798
$7.99
92022
WASHER,5X16X1.5
92022-3041
$4.18
92022A
WASHER,6.5X20X1.5
92022-3710
$3.65
92039
RIVET
92039-3747
$1.70
92039A
RIVET
92039-3775
$1.70
92071
GROMMET
92071-3819
$5.99
92071A
GROMMET
92071-3826
$3.64
92072
BAND,L=292.1
92072-3509
Unavailable
92145
SPRING
92145-3711
$4.96
92150
BOLT,6X18
92150-3729
$4.69
92151
BOLT,6X22
92151-3769
$2.97
92151A
BOLT
92151-3776
$14.43
92153
BOLT,5MM
92153-3703
$7.73
92160
DAMPER
92160-3926
$10.78
92160A
DAMPER
92160-3933
$12.90
92210
NUT
92210-3750
$4.37
14090
COVER,HANDLE,G.SILVER
14090-3809-F2
Unavailable
14090G
COVER,CENTER STORAGE,G.SILVER
14090-3812-F2
$28.53
14090J
COVER,METER,G.SILVER
14090-3820-F2
$51.10
14090M
COVER,HATCH,G.SILVER
14090-3823-F2
Unavailable
14091B
COVER,SIDE,LH,G.SILVER
14091-3731-F2
Unavailable
14091D
COVER,SIDE,RH,G.SILVER
14091-3732-F2
Unavailable
56001
MIRROR-ASSY,LH,G.SILVER
56001-3713-F2
$214.47
56001C
MIRROR-ASSY,RH,G.SILVER
56001-3714-F2
$214.47
