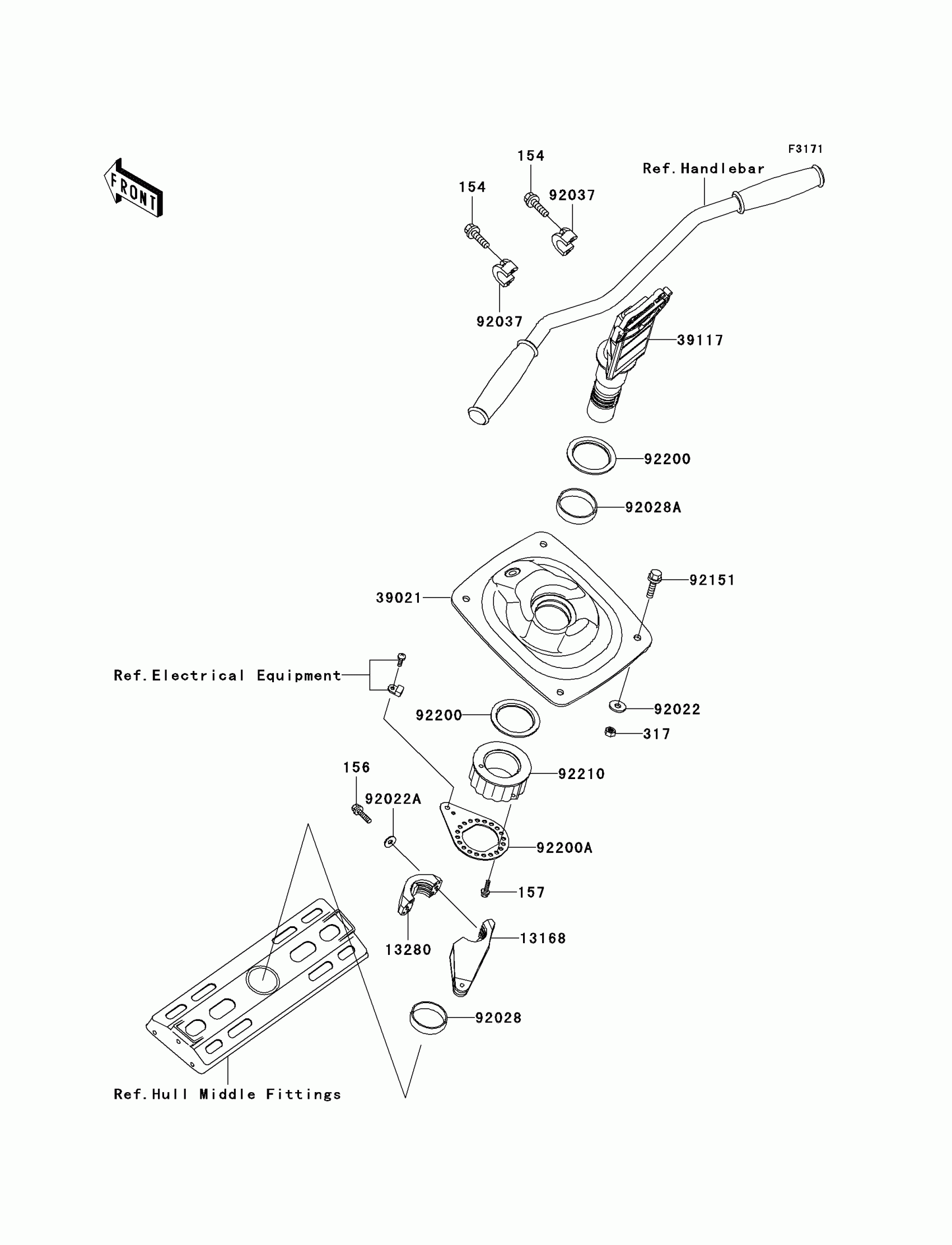

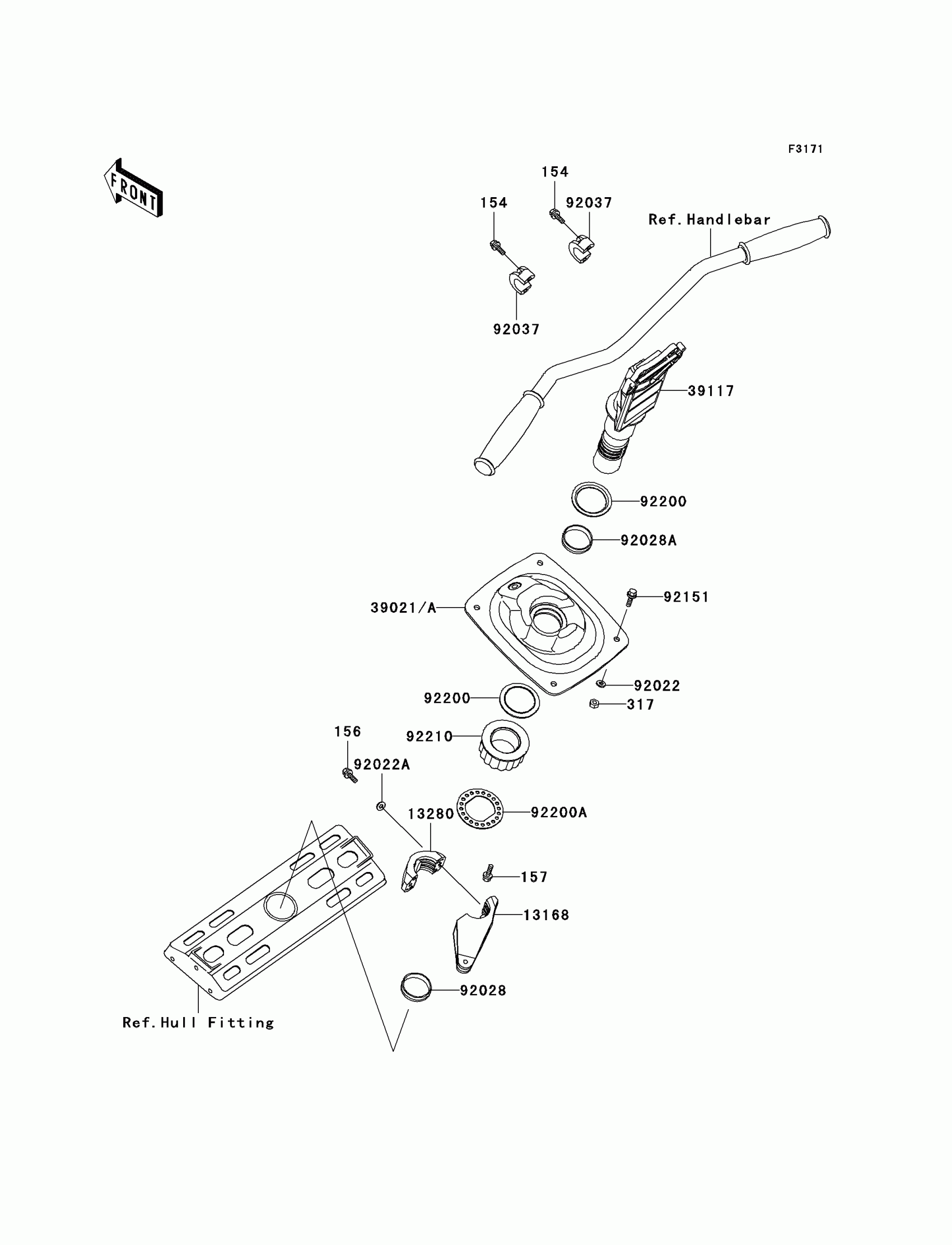

Kawasaki Ultra 150 Handle Pole Diagram

Description

Price

154

BOLT-WP-SMALL,8X30

154R0830

$6.34

156

BOLT-WP,6X25

156R0625

$4.76

157

BOLT-WSP,5X18

157R0518

$4.45

317

NUT

317R0800

$1.96

13168

LEVER

13168-3741

$38.50

13280

HOLDER

13280-3709

$26.87

39021A

BRACKET-HANDLE POLE

39021-3711

$160.91

39117

SHAFT-STRG

39117-3712

$355.65

92022

WASHER,8.4X23X2.5

92022-3744

$4.18

92022A

WASHER

92022-567

$2.67

92028

BUSHING

92028-3761

$9.38

92028A

BUSHING

92028-3764

$10.97

92037

CLAMP,HANDLEBAR

92037-503

$16.01

92151

BOLT,8X30

92151-3771

$4.34

92200

WASHER

92200-3756

Unavailable

92200A

WASHER

92200-3759

Unavailable

92210

NUT

92210-3732

$32.34
