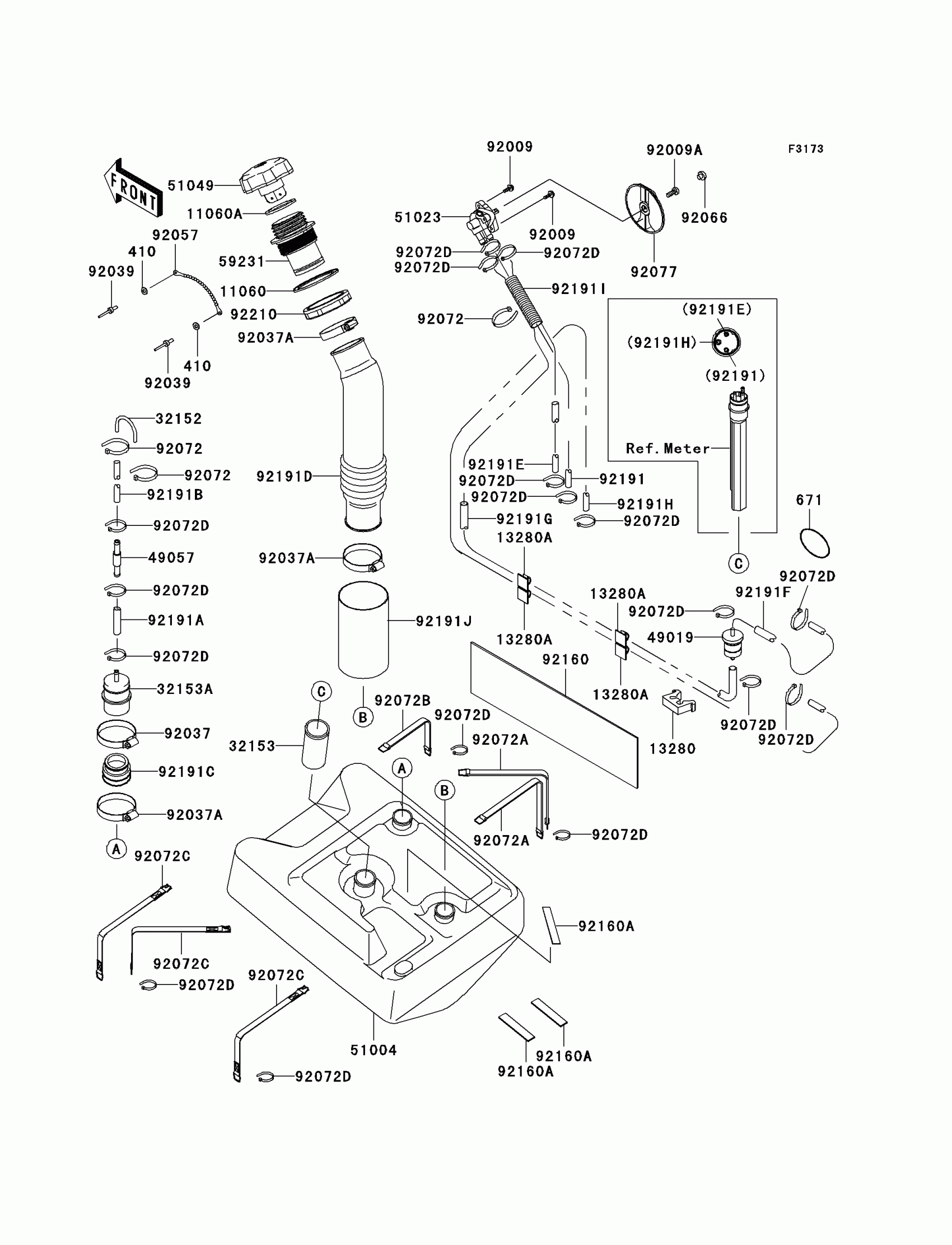

Kawasaki Ultra 150 Fuel Tank Diagram
#
11060
GASKET,FUEL-FILLER
11060-3780
$7.67
11060A
GASKET,FUEL-CAP
11060-3790
$4.95
13280
HOLDER,FUEL FILTER
13280-3705
$9.80
13280A
HOLDER
13280-3741
$2.80
32152
PIPE
32152-3705
$11.96
32153
PIPE
32153-3713
$12.37
32153A
PIPE
32153-3714
$7.89
49019
FILTER-FUEL
49019-3712
$45.64
49057
VALVE-RELIEF
49057-3707
$64.85
51004
TANK-FUEL
51004-3735
$227.71
51023
TAP-ASSY,FUEL
51023-3729
$136.09
51049
CAP-TANK,FUEL
51049-3722
$24.43
59231
FILLER
59231-3723
$38.09
92009
SCREW,5X16
92009-3789
$2.97
92009A
SCREW,4X12
92009-3838
$1.78
92037
CLAMP
92037-3009
$3.70
92037A
CLAMP
92037-3738
$6.89
92039
RIVET,3.2X8
92039-3763
$1.81
92057
CHAIN,L=250
92057-3708
$16.90
92066
PLUG,FUEL&CHOKE KNOB,F.BLACK
92066-3755-6Z
$3.70
92072
BAND,L=188
92072-1239
$1.73
92072A
BAND
92072-3845
$18.53
92072B
BAND
92072-3846
$16.55
92072C
BAND
92072-3847
$24.01
92072D
BAND,L=99
92072-3871
$2.26
92077
KNOB,FUEL&CHOKE,F.BLACK
92077-3730-6Z
$11.10
92160
DAMPER
92160-3839
$22.14
92160A
DAMPER
92160-3840
$5.88
92191
TUBE,5.8X10.8X400
92191-3825
$6.88
92191A
TUBE,5.8X10.8X100
92191-3828
Unavailable
92191B
TUBE,5.8X10.8X570
92191-3829
$6.54
92191C
TUBE
92191-3832
$26.87
92191D
TUBE,FUEL TANK-FILLER
92191-3851
$32.33
92191E
TUBE,5.8X10.8X400
92191-3853
$6.50
92191F
TUBE,FILTER-CAB
92191-3886
$11.34
92191G
TUBE,TAP-FILTER
92191-3887
$32.04
92191H
TUBE,CAB-TANK
92191-3888
$38.09
92191I
TUBE
92191-3889
$5.54
92191J
TUBE,86X89X150
92191-3890
$16.42
92210
NUT,FILLER
92210-3751
$8.63
410
W-PLAIN-S,3MM
410S0300
$1.28
671
O RING,65MM
671B2565
$8.86
