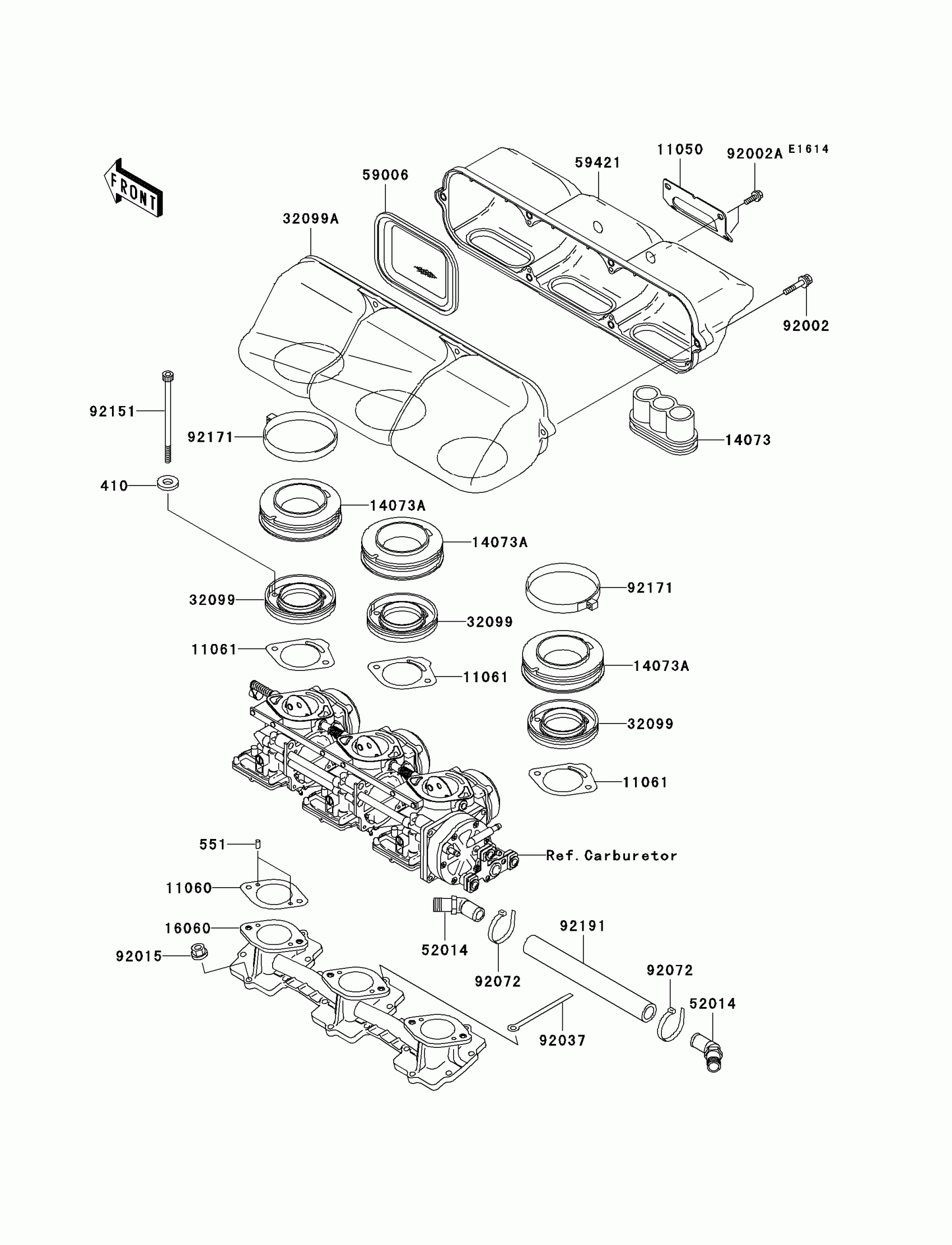

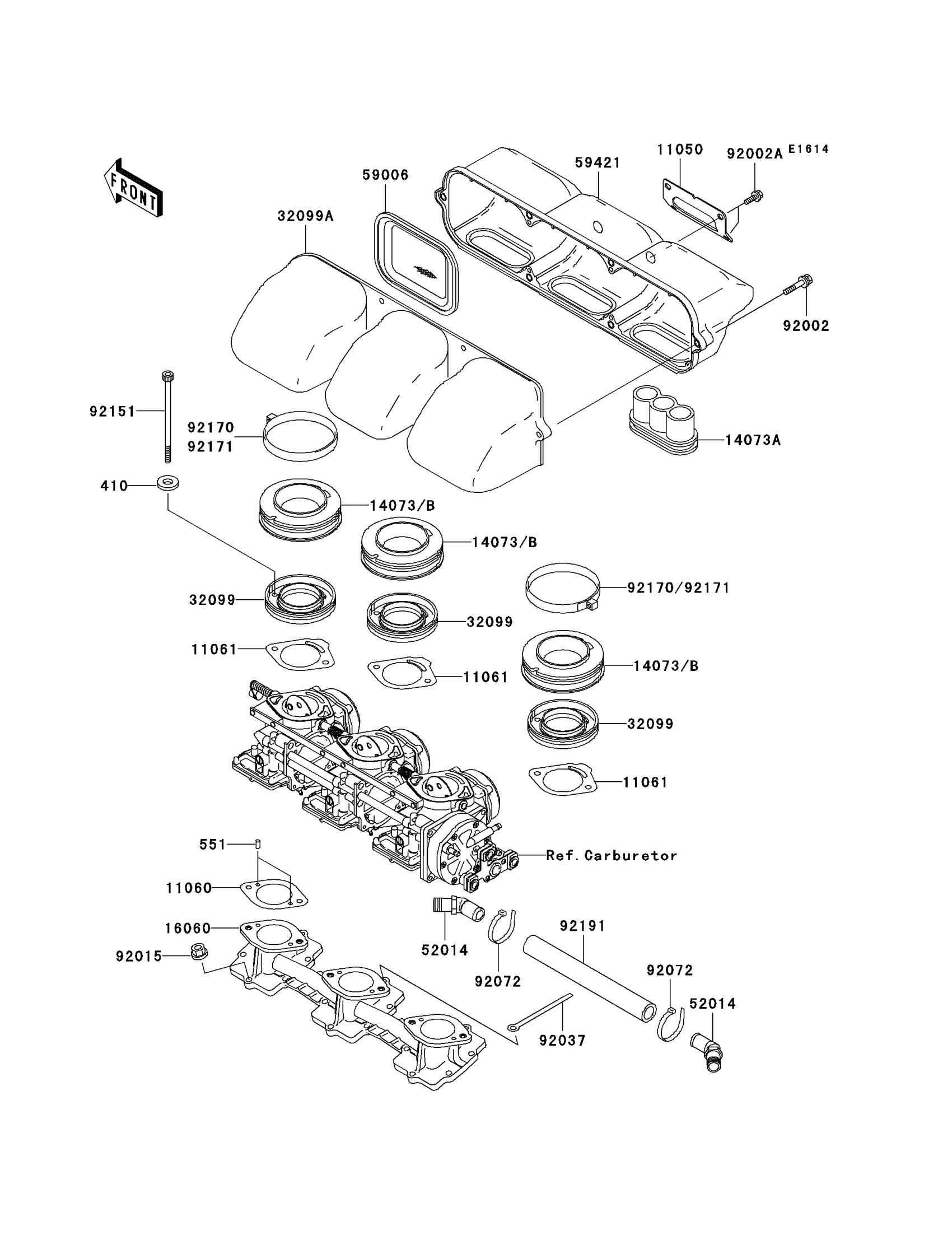

Kawasaki Ultra 150 Flame Arrester Diagram

Description

Price

410

WASHER-PLAIN-SMALL,6MM

410S0600

$0.78

551

PIN-DOWEL

551R0408

$5.38

11050

BRACKET

11050-3754

$17.50

11060

GASKET

11060-3788

$8.12

11061

GASKET,CARBURETOR

11061-3704

$10.94

14073

DUCT

14073-3776

$41.99

14073A

DUCT

14073-3785

$23.83

16060

PIPE-INTAKE

16060-3708

$312.82

32099

CASE

32099-3831

$55.60

32099A

CASE,ARRESTER

32099-3843

$74.15

52014

ELBOW

52014-3714

$46.09

59006

ARRESTER-FLAME

59006-3715

$56.49

59421

COVER-INTAKE

59421-3728

$54.97

92002

BOLT,6X35

92002-3715

$6.61

92002A

BOLT,6X16

92002-3728

$4.69

92015

NUT,6MM

92015-3767

$4.69

92037

CLAMP,L=100

92037-3736

$5.52

92072

BAND

92072-3848

$1.73

92151

BOLT,SOCKET,6X120

92151-3732

$8.52

92171

CLAMP

92171-3707

$6.11

92191

TUBE,16.5X24.5X203

92191-3837

$16.78
