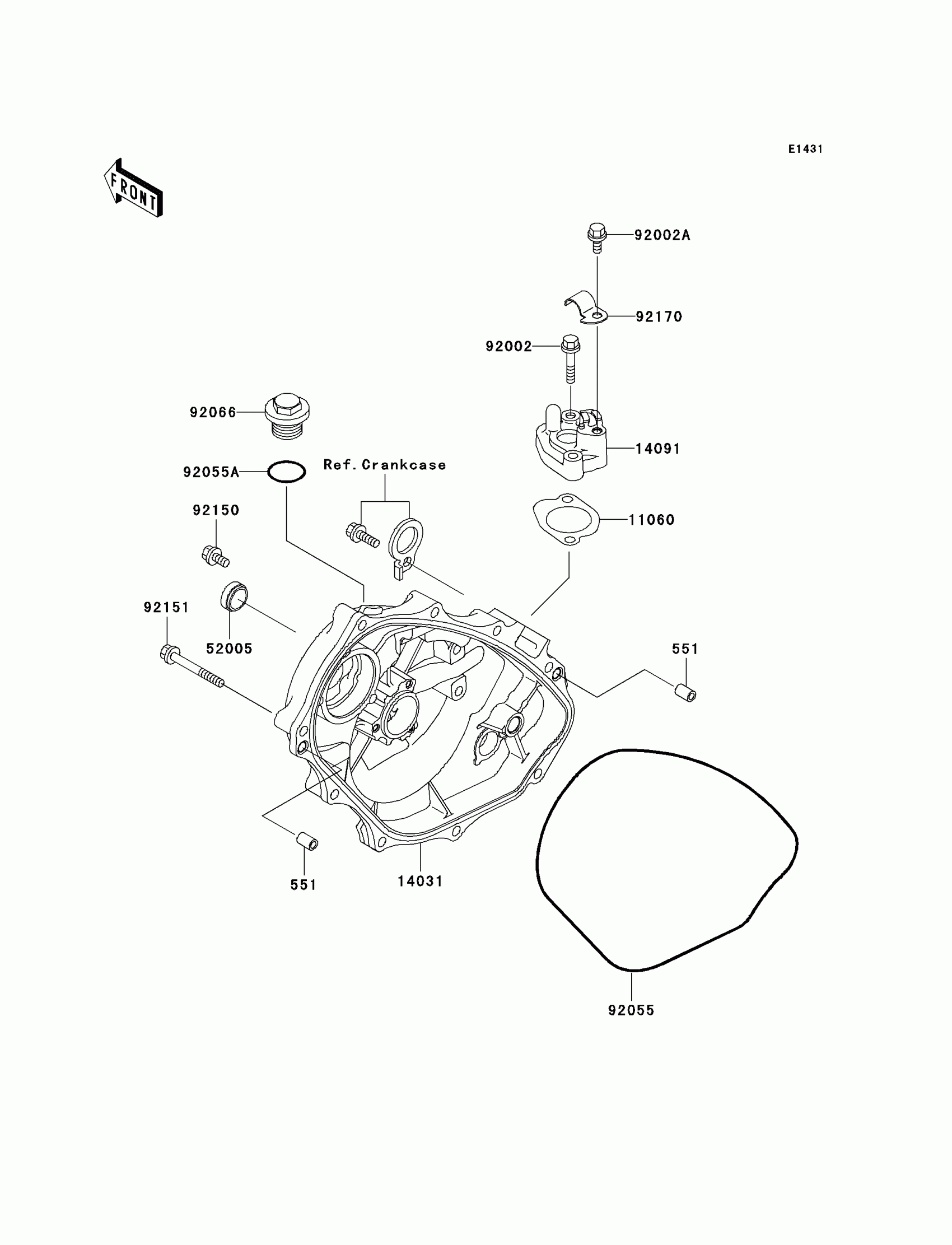

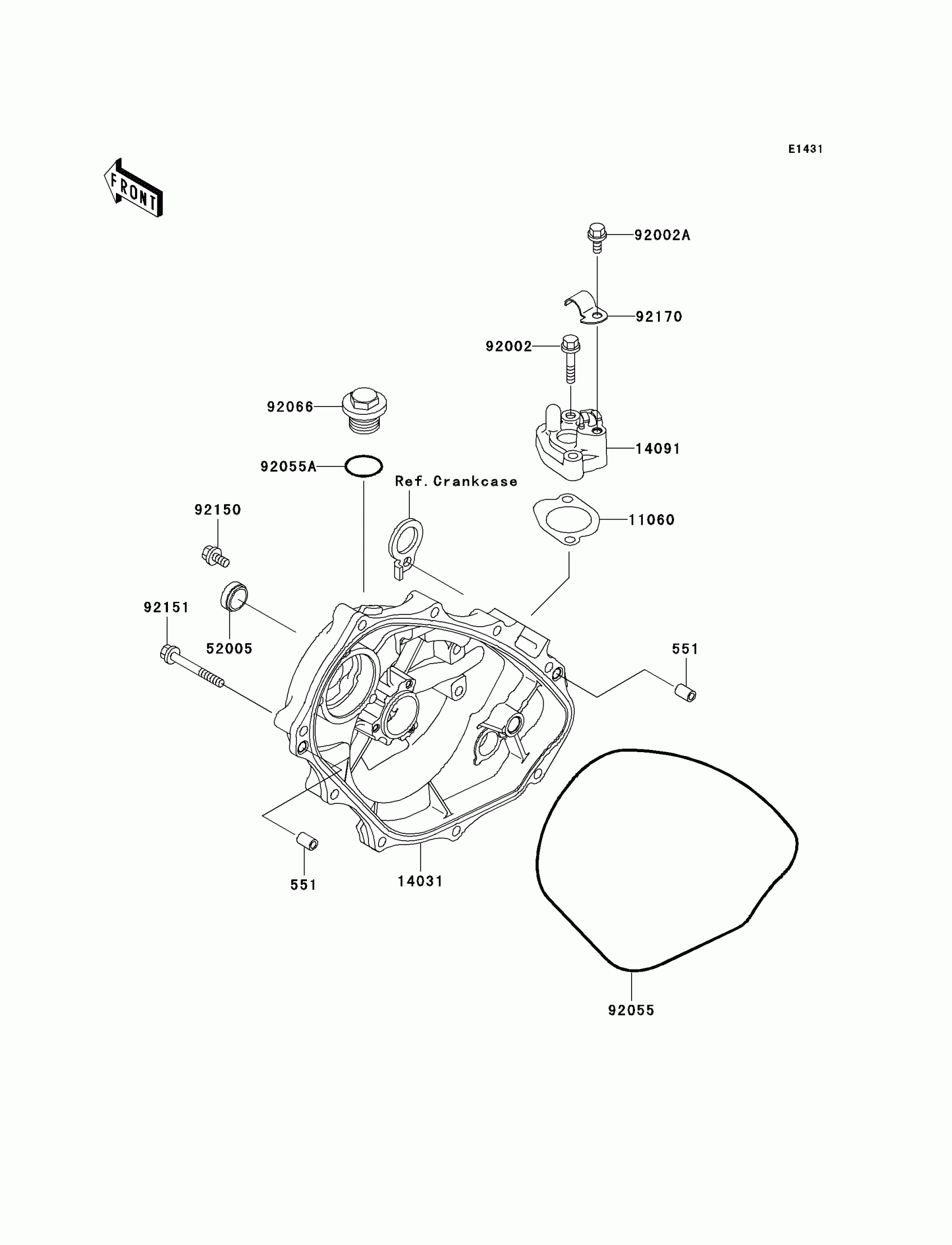

Kawasaki Ultra 150 Engine Cover(s) Diagram

Description

Price

551

PIN-DOWEL

551R0812

$7.91

11060

GASKET

11060-3803

$7.76

14031

COVER-GENERATOR

14031-3728

$271.27

14091

COVER

14091-3702

$49.36

52005

GAUGE,OIL LEVEL

52005-1055

$14.76

92002

BOLT,6X30

92002-3726

$4.69

92002A

BOLT,6X12

92002-3763

$4.69

92055

RING-O,3.0X220

92055-3748

$15.30

92055A

RING-O

92055-515

$2.70

92066

PLUG

92066-3739

$19.24

92150

BOLT,5X12

92150-3760

$8.84

92151

BOLT,6X35

92151-3768

$2.97

92170

CLAMP

92170-3736

$8.44
