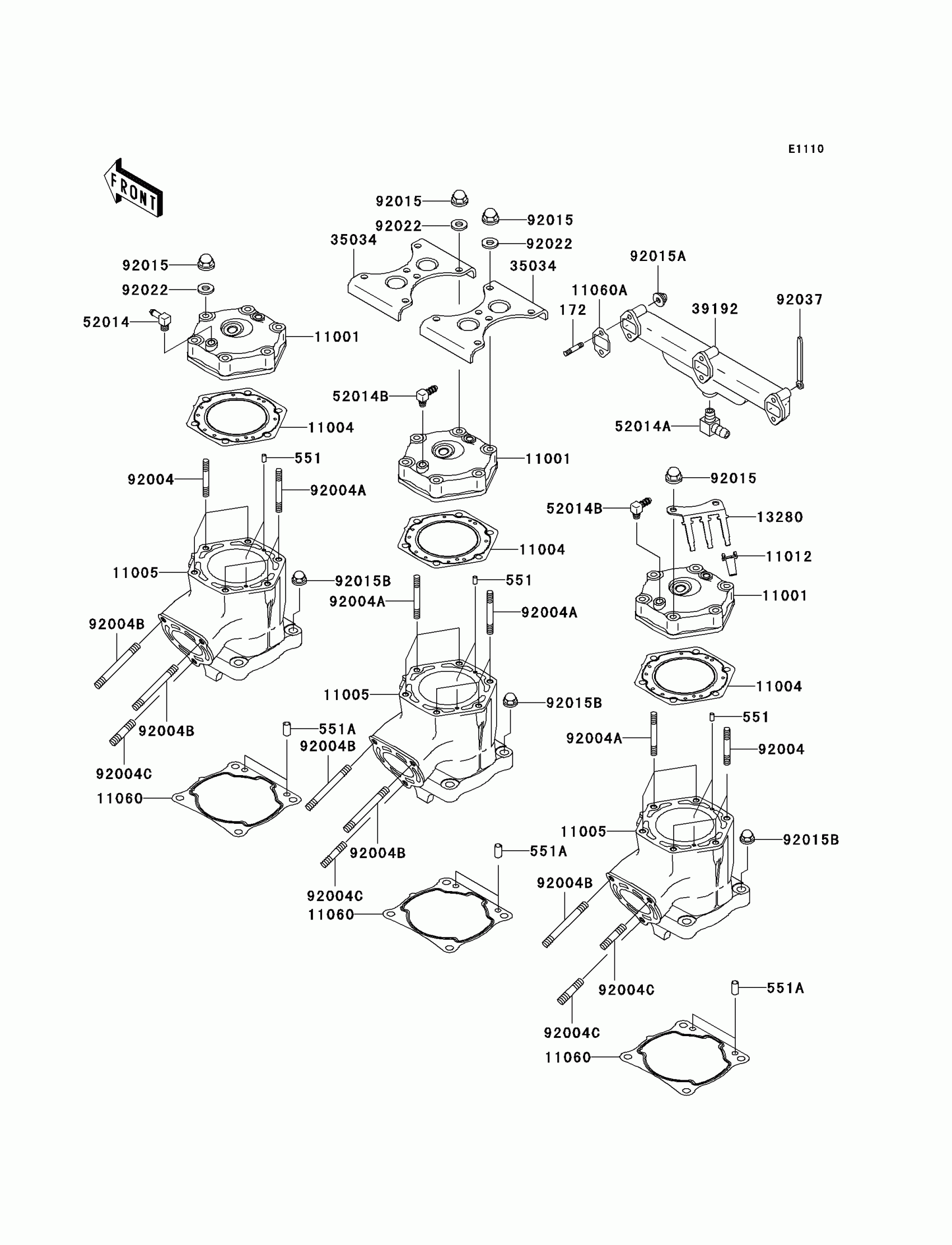

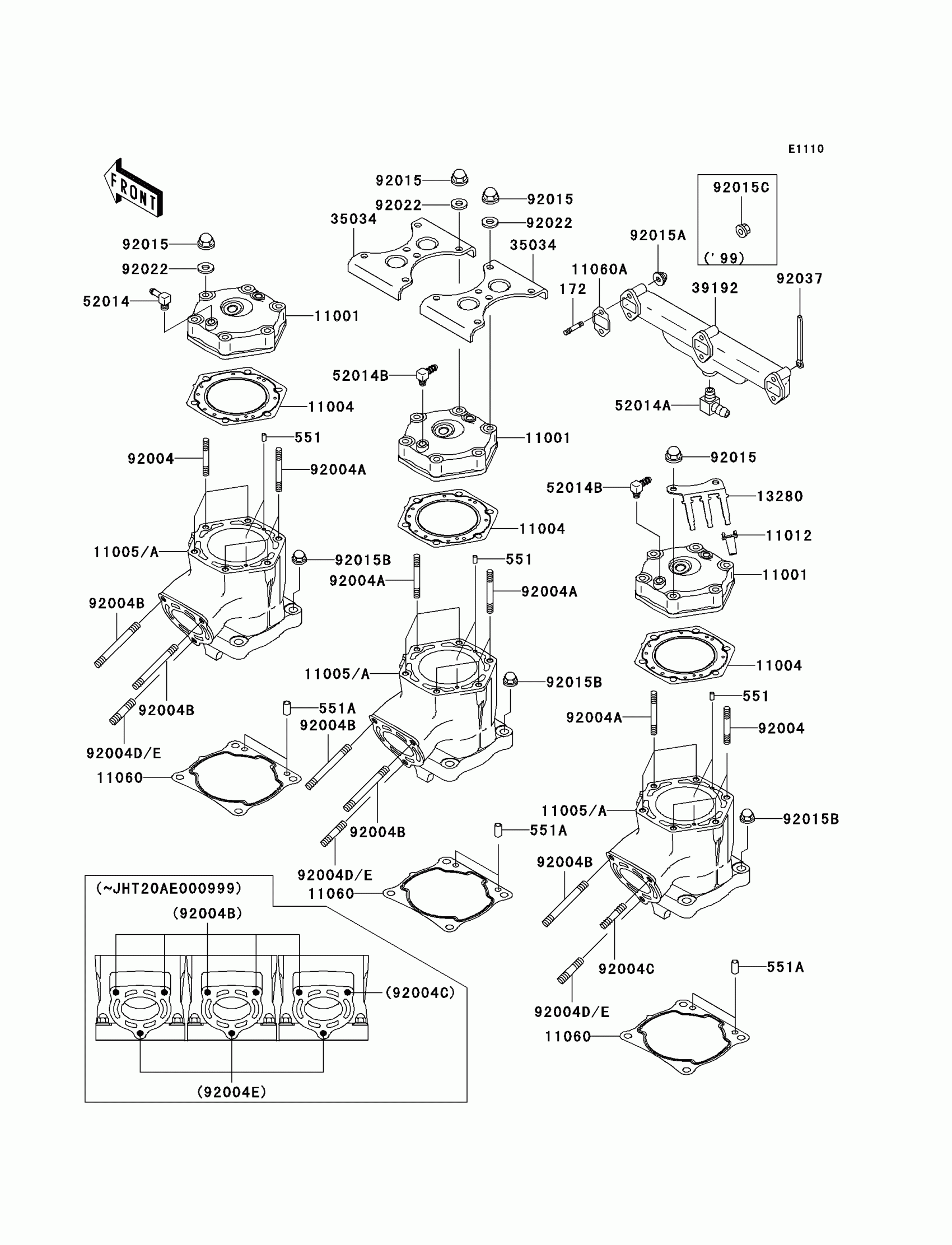

Kawasaki Ultra 150 Cylinder Head/Cylinder Diagram

Description

Price

172

BOLT-STUD,6X35

172R0635

Unavailable

551

PIN-DOWEL

551R0408

$4.09

551A

PIN-DOWEL

551R0812

$6.04

11001

HEAD-CYLINDER

11001-3741

$221.35

11004

GASKET-HEAD

11004-3717

$30.14

11005

CYLINDER-ENGINE

11005-3744

$978.24

11012

CAP,HOLDER

11012-3768

$7.41

11060

GASKET,CYLINDER BASE

11060-3783

Unavailable

11060A

GASKET,WATER PIPE

11060-3784

$4.07

13280

HOLDER

13280-3720

$14.85

35034

REINFORCE

35034-3726

$51.00

39192

PIPE-WATER

39192-3701

$129.77

52014

ELBOW

52014-3709

$25.19

52014A

ELBOW

52014-3711

$30.70

52014B

ELBOW

52014-3713

$30.14

92004

STUD,8X43

92004-3715

$8.31

92004A

STUD,8X53

92004-3734

$5.95

92004B

STUD,8X97

92004-3735

Unavailable

92004C

STUD,8X40,L=56

92004-3736

$4.41

92004D

STUD,8X40,L=56

92004-3736

$4.41

92015

NUT,CAP,8MM

92015-1371

$3.81

92015A

NUT,CAP,6MM

92015-1385

$3.32

92015B

NUT,10MM

92015-1649

$3.79

92022

WASHER,8.2X18X1.5

92022-1964

$3.19

92037

CLAMP,L=100

92037-3736

$4.85
