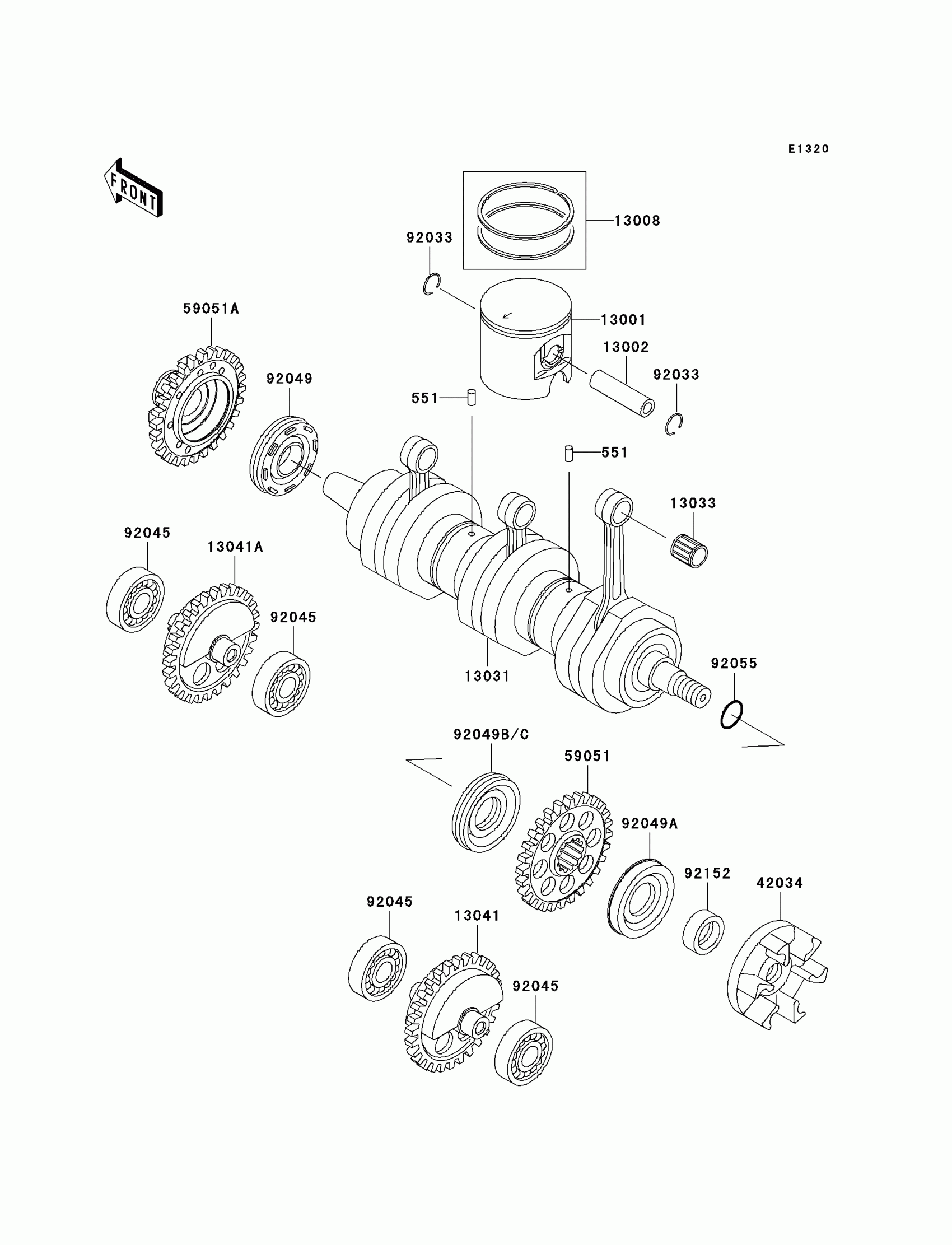

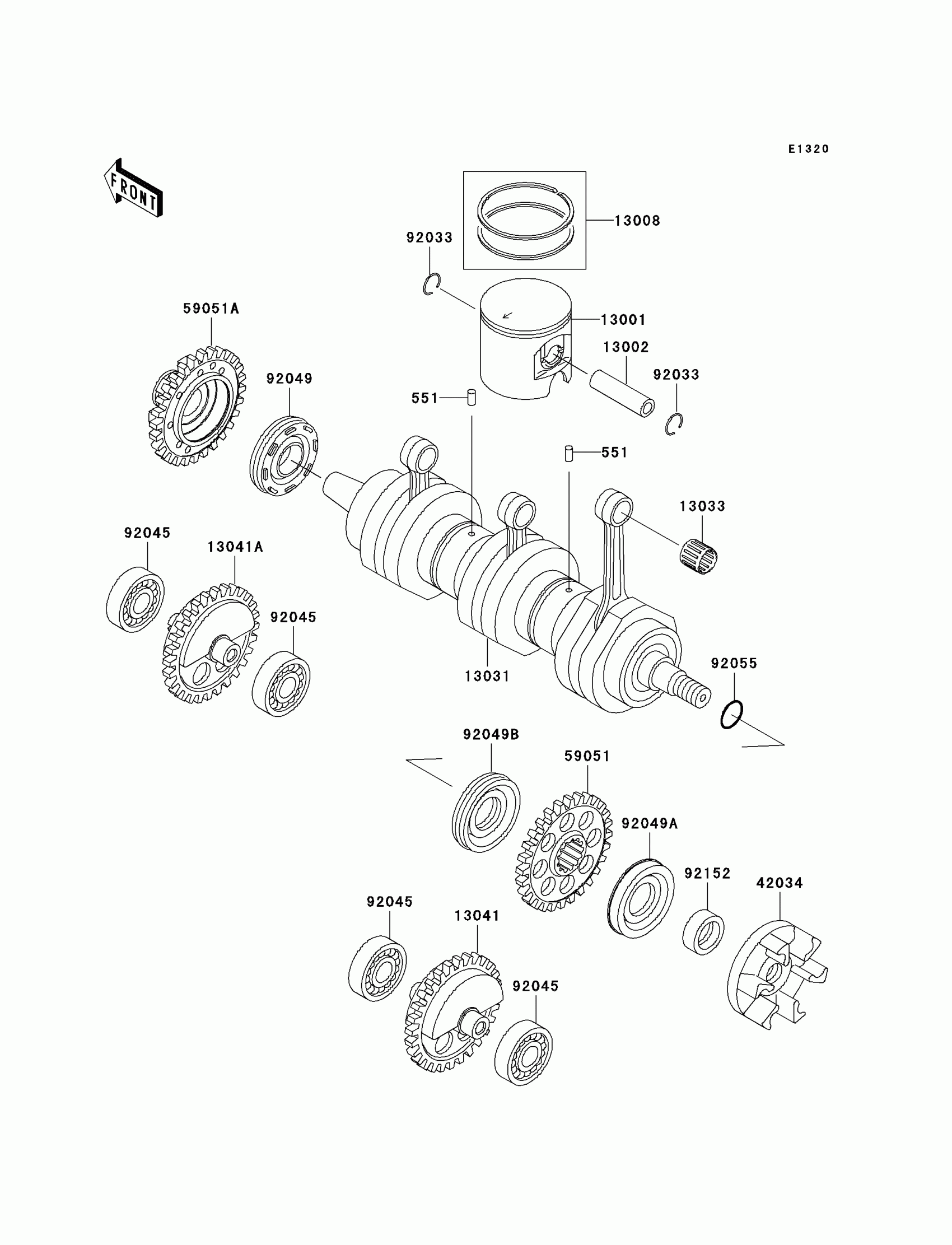

Kawasaki Ultra 150 Crankshaft/Piston(s) Diagram

Description

Price

551

PIN-DOWEL

551R0612

$3.57

13001

PISTON-ENGINE

13001-3731

$136.46

13002

PIN-PISTON

13002-3707

$29.09

13008

RING-SET-PISTON,STD

13008-3708

$68.36

13031

CRANKSHAFT-COMP

13031-3738

$1,621.26

13033

BEARING-SMALL END

13033-3704

$34.88

13041

BALANCER,RR

13041-3702

$222.42

13041A

BALANCER,FR

13041-3703

$244.94

42034

COUPLING

42034-3711

$44.62

59051

GEAR-SPUR

59051-3704

$192.54

59051A

GEAR-SPUR,FR

59051-3705

$315.76

92033

RING-SNAP

92033-3729

$1.59

92045

BEARING-BALL,TMB204C4

92045-3728

$21.92

92049

SEAL-OIL,FW7357210ZS

92049-3725

$41.04

92049A

SEAL-OIL,FWJ7358069ZS

92049-3728

$43.28

92049C

SEAL-OIL

92049-3730

Unavailable

92055

RING-O,20.8X2.4

92055-3740

Unavailable

92152

COLLAR,CRANKSHAFT,RR

92152-3701

$37.07
