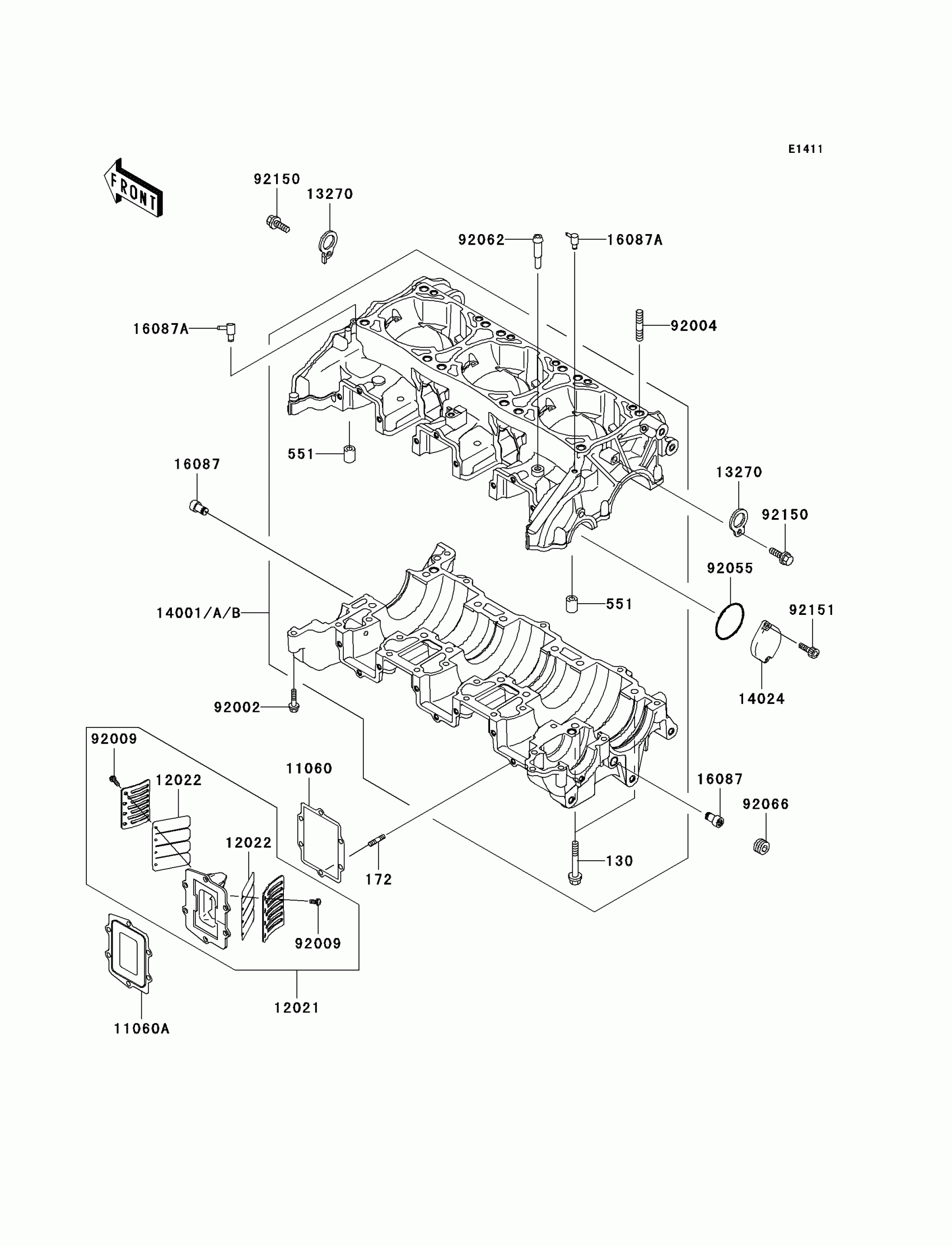

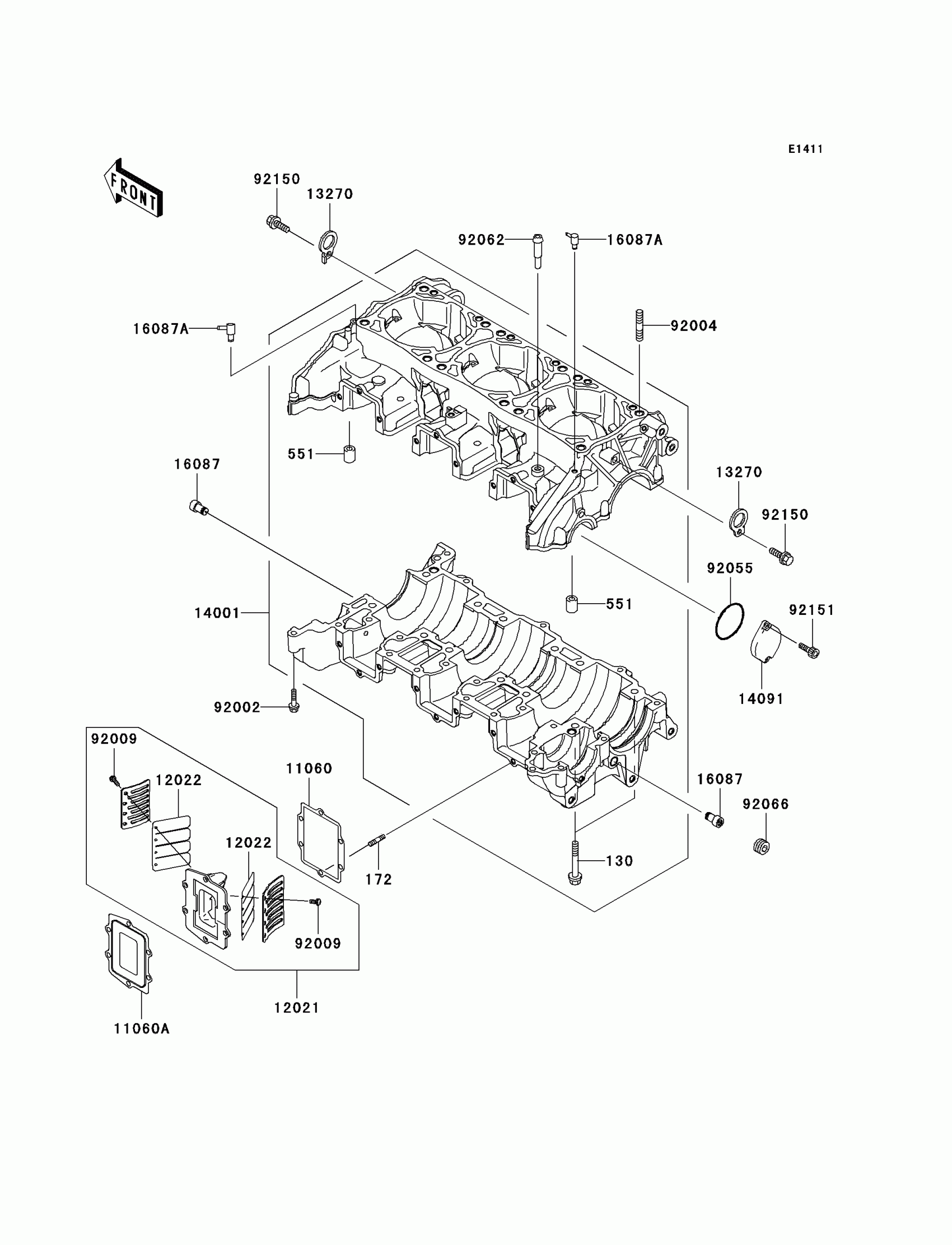

Kawasaki Ultra 150 Crankcase Diagram

Description

Price

130

BOLT-FLANGED

130Z0855

Unavailable

172

BOLT-STUD,6X20

172R0620

$6.25

551

PIN-DOWEL

551R1012

$5.71

11060

GASKET,REED VALVE

11060-3717

$14.40

11060A

GASKET,REED VALVE

11060-3757

$14.40

12021

VALVE-ASSY-REED

12021-3711

$145.70

12022

VALVE-REED

12022-3709

$32.91

13270

PLATE

13270-3899

$7.15

14001B

SET-CRANKCASE

14001-5377

Unavailable

14024

COVER,BALANCER

14024-1557

Unavailable

16087

VALVE-CHECK

16087-3707

Unavailable

16087A

VALVE-CHECK

16087-3708

Unavailable

92002

BOLT,6X40

92002-3716

$3.79

92004

STUD,10X35

92004-3731

$5.74

92009

SCREW,3X6

92009-1371

$3.34

92055

RING-O

92055-1397

$4.61

92062

NOZZLE

92062-3705

$6.73

92066

PLUG,PT1/4X8.9

92066-3765

$11.17

92150

BOLT,6X18

92150-3729

$3.57

92151

BOLT

92151-3779

$2.25
