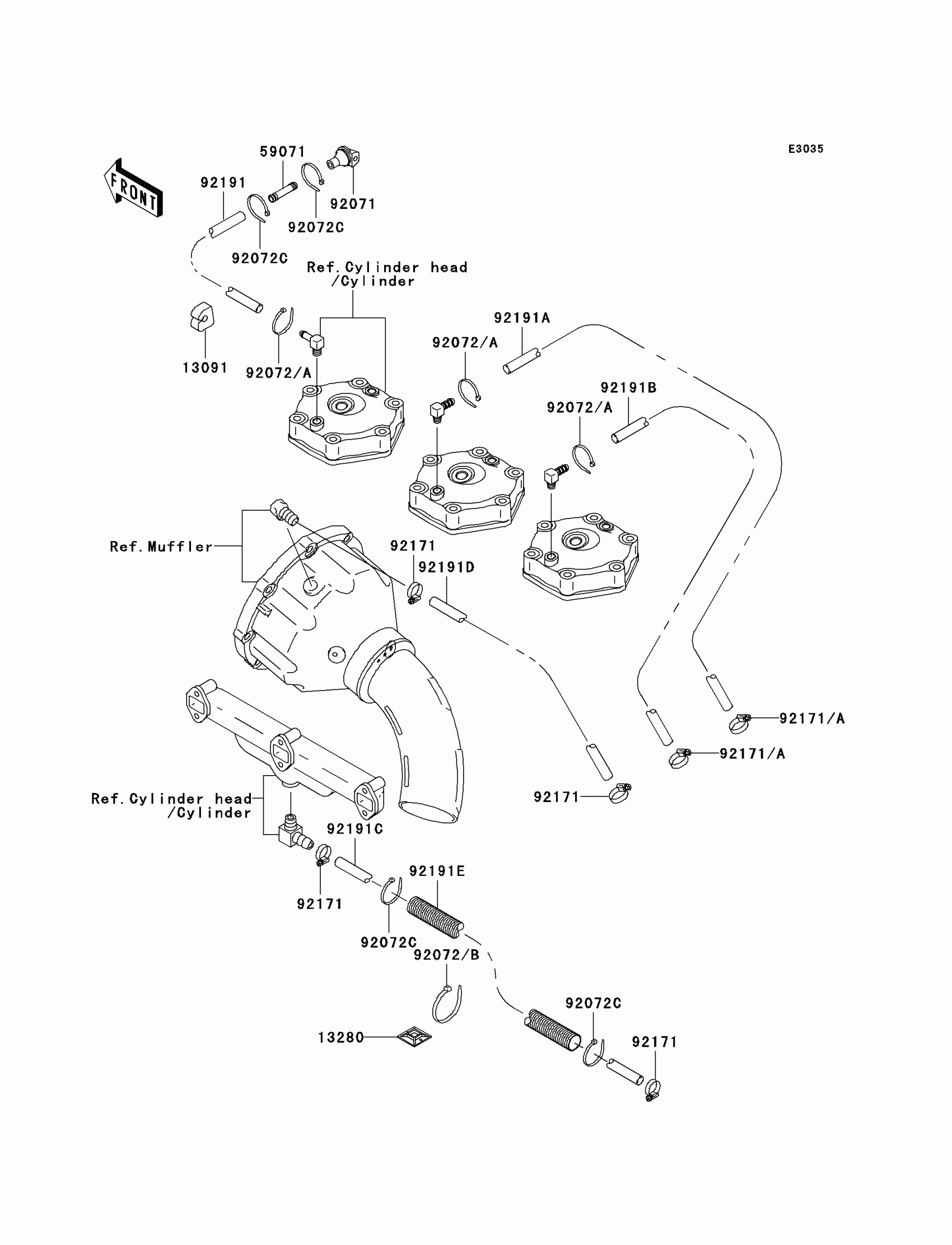

Kawasaki Ultra 150 Cooling Diagram

Description

Price

13091

HOLDER

13091-3712

$4.65

13280

HOLDER

13280-3706

$3.77

59071

JOINT

59071-3764

$7.64

92037

CLAMP

92037-1173

$3.49

92071

GROMMET

92071-3815

$5.46

92072

BAND,L=148

92072-3768

$3.92

92072A

BAND

92072-3848

$1.73

92171

CLAMP

92171-3701

$7.43

92171A

CLAMP

92171-3702

$7.01

92191

TUBE,SENSOR-DECK

92191-3748

$19.58

92191A

TUBE,9X15X1200

92191-3844

$34.19

92191B

TUBE,9X15X1050

92191-3845

$28.67

92191C

TUBE,12X18X900

92191-3846

$31.83

92191D

TUBE,12X18X650

92191-3855

$23.68

92191E

TUBE,CORRUGATED,19.5X23.8X500

92191-3884

$3.89
