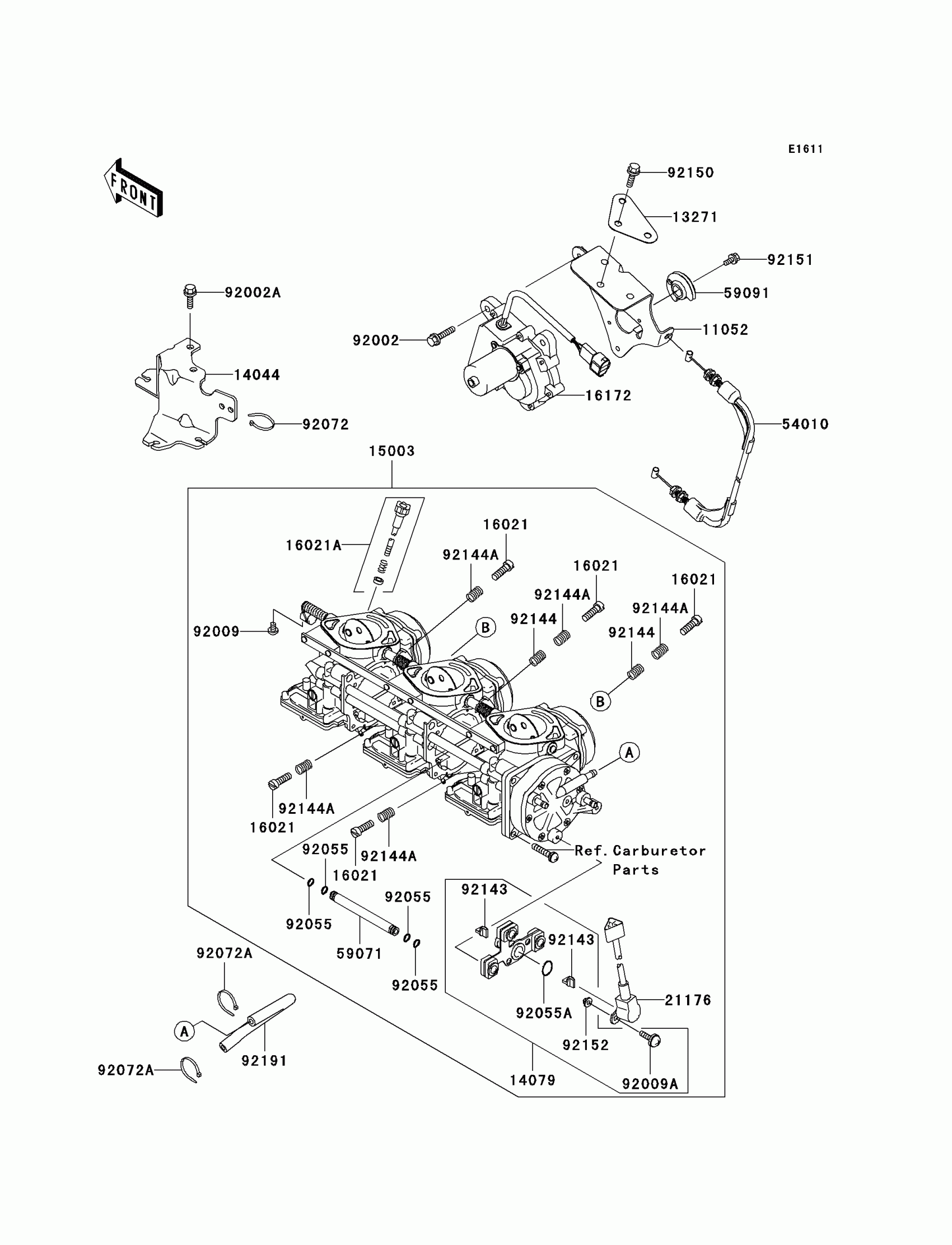

Kawasaki Ultra 150 Carburetor Diagram
#
Description
Price
11052
BRACKET
11052-3771
$26.84
13271
PLATE
13271-3846
$7.21
14044
HOLDER-CABLE,CARBURETOR
14044-3744
$36.90
14079
HOLDER-ASSY,SENSOR
14079-3722
$175.18
15003
CARBURETOR-ASSY
15003-3740
$2,260.54
16021
SCREW-THROTTLE STOP
16021-3704
$42.88
16021A
SCREW-THROTTLE STOP
16021-3709
$61.04
16172
ACTUATOR
16172-3703
$640.45
21176
SENSOR
21176-3739
$382.96
54010
CABLE
54010-3715
$31.10
59071
JOINT
59071-3766
$45.68
59091
PULLEY
59091-3708
$35.45
92002
BOLT,6X25
92002-3714
$5.00
92002A
BOLT,6X16
92002-3728
$4.69
92009
SCREW,4X6
92009-3786
$5.23
92009A
SCREW,SENSOR
92009-3863
$2.75
92055
RING-O
92055-1246
$4.50
92055A
RING-O,SENSOR
92055-1574
$4.33
92072
BAND
92072-3848
$1.73
92072A
BAND,L=152
92072-3874
$4.18
92143
COLLAR
92143-1907
$9.50
92144
SPRING,ADJUST SCREW
92144-3704
$6.89
92144A
SPRING,THROTTLE STOP SCREW
92144-3745
$7.98
92150
BOLT,6X18
92150-3729
$4.69
92151
BOLT,5X10
92151-3749
$36.21
92152
COLLAR,SENSOR
92152-3721
$9.89
92191
TUBE,PULSE
92191-3838
$7.75
