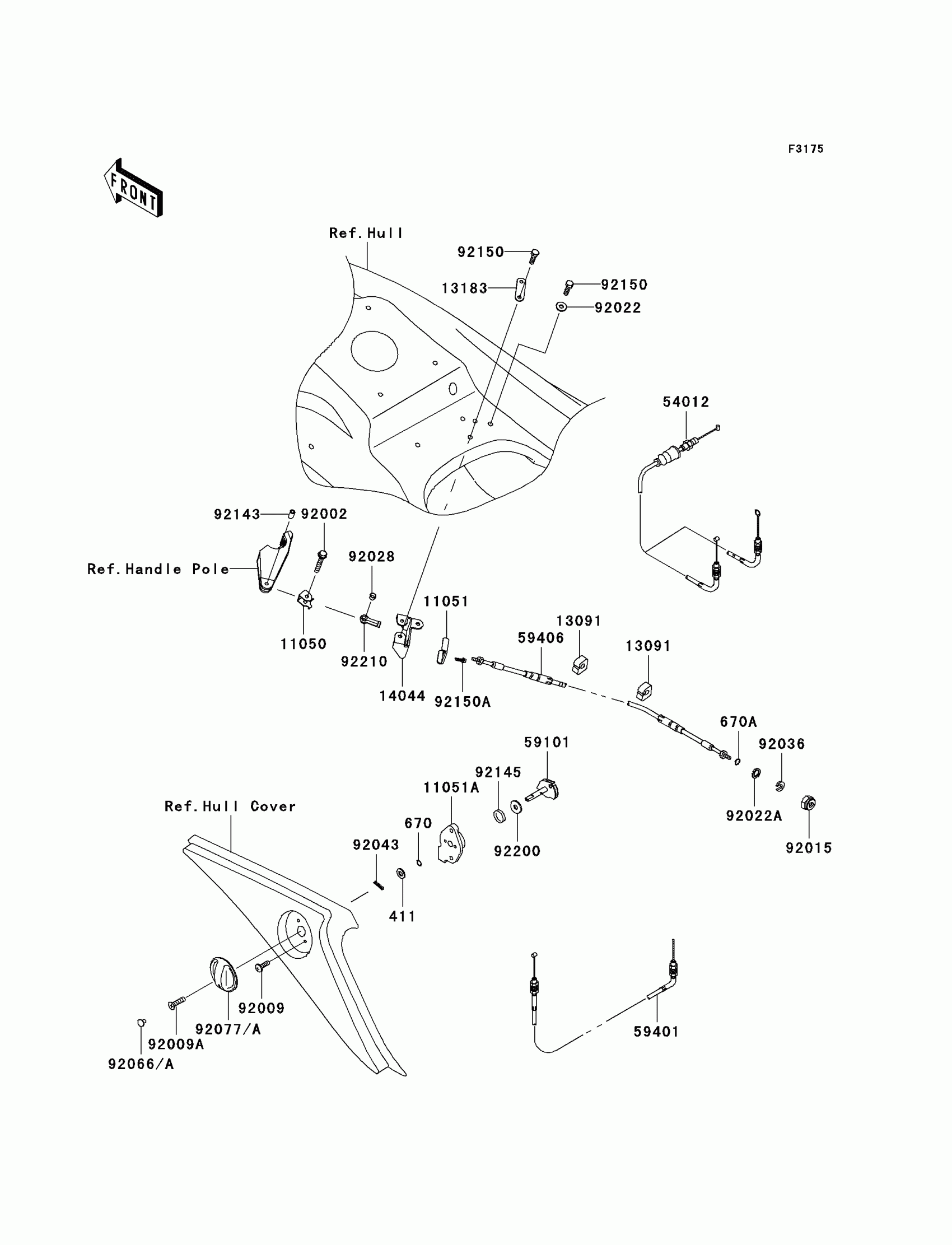

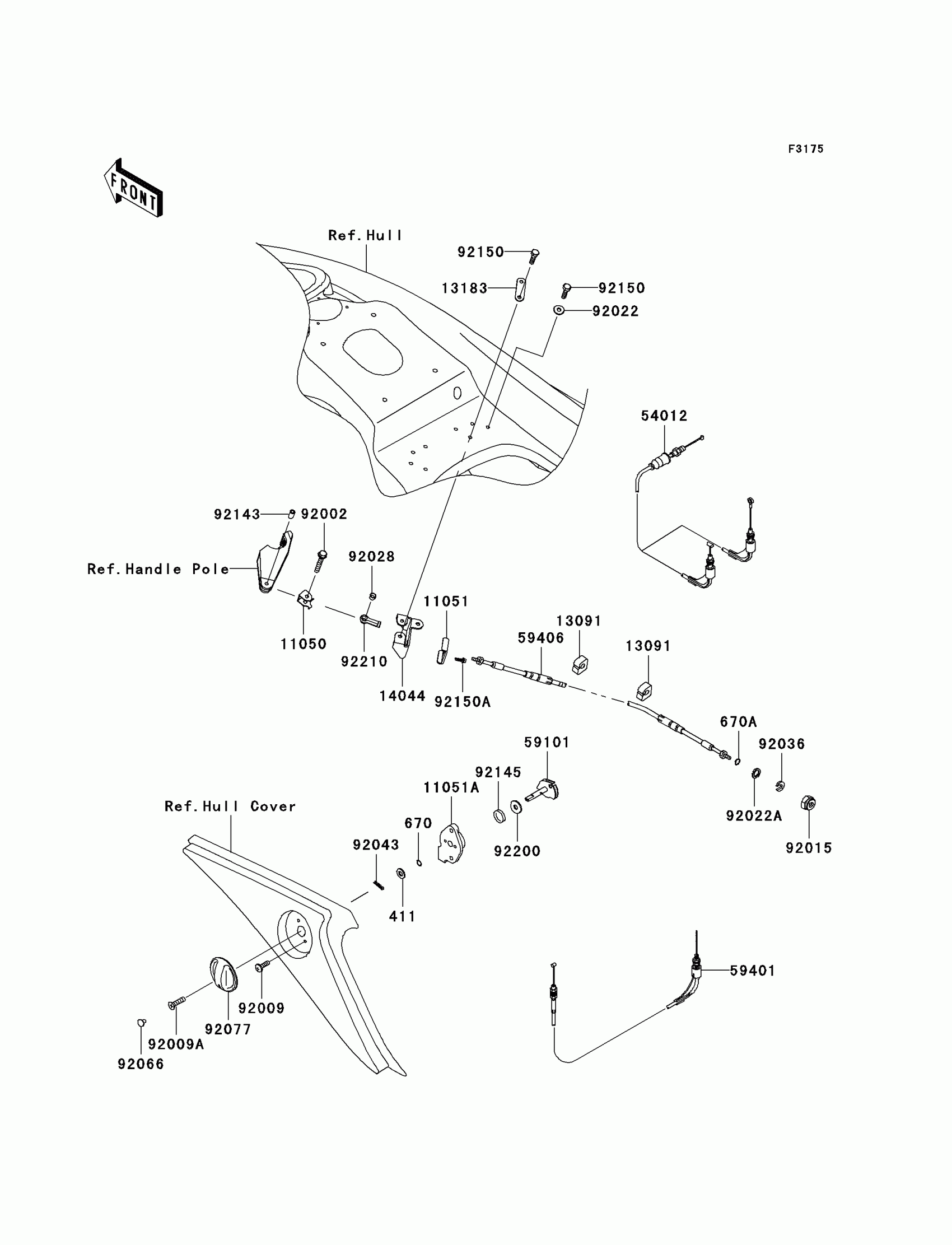

Kawasaki Ultra 150 Cables Diagram

#

Description
Price

411

WASHER-PLAIN,8MM

411S0800

$2.15

670

O RING,8MM

670B1508

$1.00

670A

O RING,11MM

670B2011

Unavailable

11050

BRACKET

11050-3767

$10.22

11051

BRACKET

11051-3701

$9.56

11051A

BRACKET,STARTER CABLE

11051-3744

$24.12

13091

HOLDER

13091-3712

$4.14

13183

PLATE

13183-3809

$5.61

14044

HOLDER-CABLE

14044-3736

$39.45

54012

CABLE-THROTTLE

54012-3764

$99.63

59101

REEL

59101-3714

$57.41

59401

CABLE-CHOKE

59401-3724

$54.15

59406

CABLE-STRG

59406-3771

$130.13

92002

BOLT,6X30

92002-3726

$3.57

92009

SCREW,5X16

92009-3789

$2.42

92009A

SCREW,4X12

92009-3838

$1.53

92015

NUT,20MM

92015-526

$30.30

92022

WASHER,6.5X20X1.5

92022-3710

Unavailable

92022A

WASHER

92022-535

$7.25

92028

BUSHING

92028-3769

$2.37

92036

RING-SNAP

92036-501

Unavailable

92043

PIN

92043-3752

$3.27

92066A

PLUG,FUEL&CHOKE KNOB,F.BLACK

92066-3755-6Z

$3.25

92077A

KNOB,FUEL&CHOKE,F.BLACK

92077-3730-6Z

$10.68

92143

COLLAR,6.2X10X19

92143-3733

$4.90

92145

SPRING

92145-3712

$5.85

92150

BOLT,6X20

92150-3758

$4.51

92150A

BOLT,5X16

92150-3778

$3.54

92200

WASHER,8.5X34X0.5

92200-3770

$1.95

92210

NUT

92210-3746

$23.63
