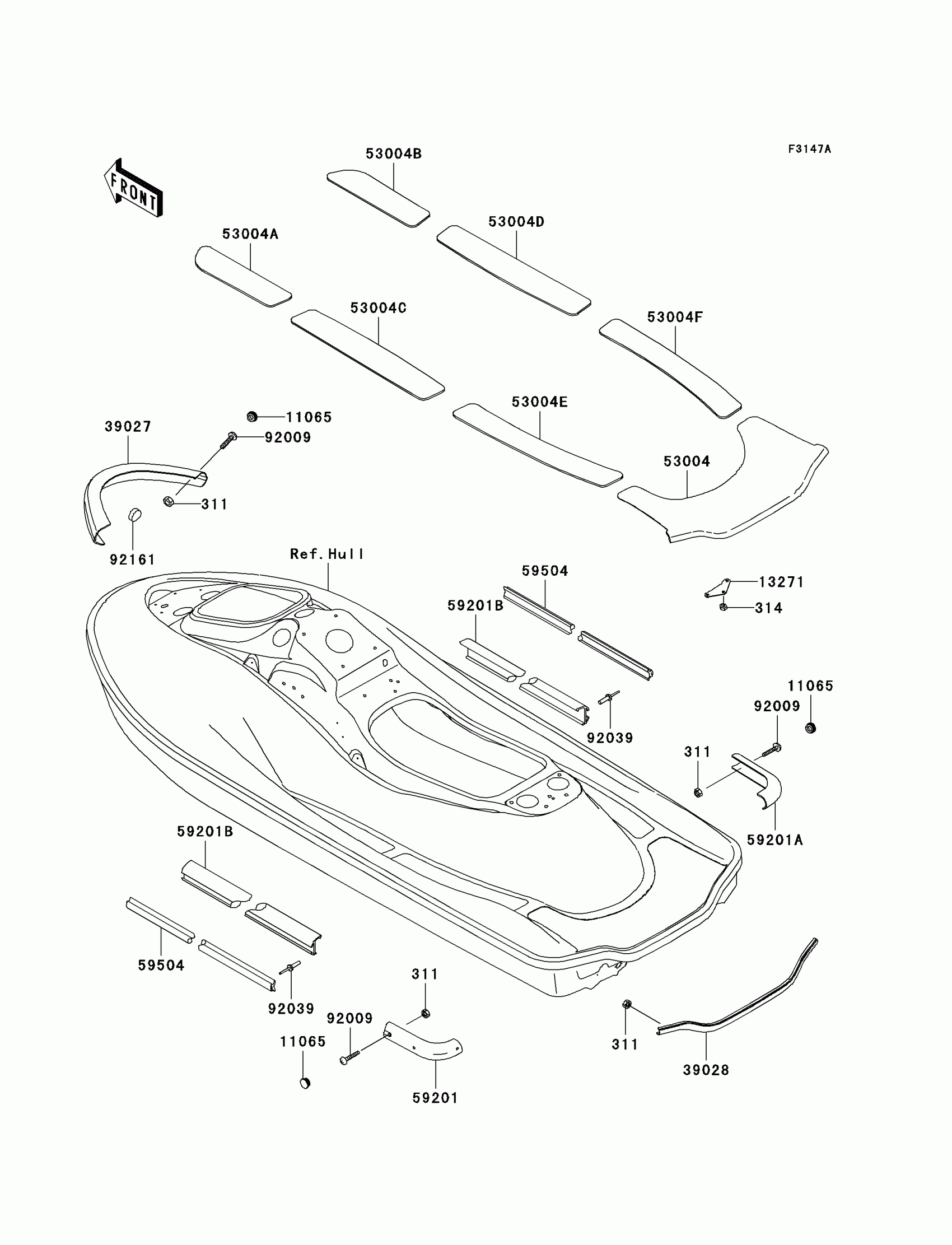

Kawasaki Ultra 130 Pads(JH1100-B3/B4) Diagram

Description

Price

311

NUT-HEX,5MM

311R0500

$1.75

314

NUT-HEX-FINE,10MM

314R1000

$2.02

11065

CAP,F.BLACK

11065-3707-6Z

$4.96

13271

PLATE

13271-3759

$18.74

39027

BUMPER-FRONT,F.BLACK

39027-3743-6Z

$200.51

39028

BUMPER-REAR,F.BLACK

39028-3743-6Z

$184.02

53004

MAT,RR,F.BLACK

53004-3820-6Z

$187.59

53004A

MAT,FR,LH,F.BLACK

53004-3858-6Z

$46.45

53004B

MAT,FR,RH,F.BLACK

53004-3859-6Z

$46.45

53004C

MAT,MIDDLE,LH

53004-3860

$56.39

53004D

MAT,MIDDLE,RH

53004-3861

$46.85

53004E

MAT,RR,LH

53004-3862

$46.85

53004F

MAT,RR,RH

53004-3863

$46.85

59201

BUMPER,CORNER,LH,F.BLACK

59201-3780-6Z

$94.58

59201A

BUMPER,CORNER,RH,F.BLACK

59201-3781-6Z

$90.27

59201B

BUMPER,SIDE,F.BLACK

59201-3786-6Z

$169.77

59504

INSERT-BOAT FENDER,F.BLACK

59504-3728-6Z

$48.32

92009

SCREW,5X30

92009-3834

$9.05

92039

RIVET

92039-3770

$1.02

92161

DAMPER

92161-3713

$14.60
