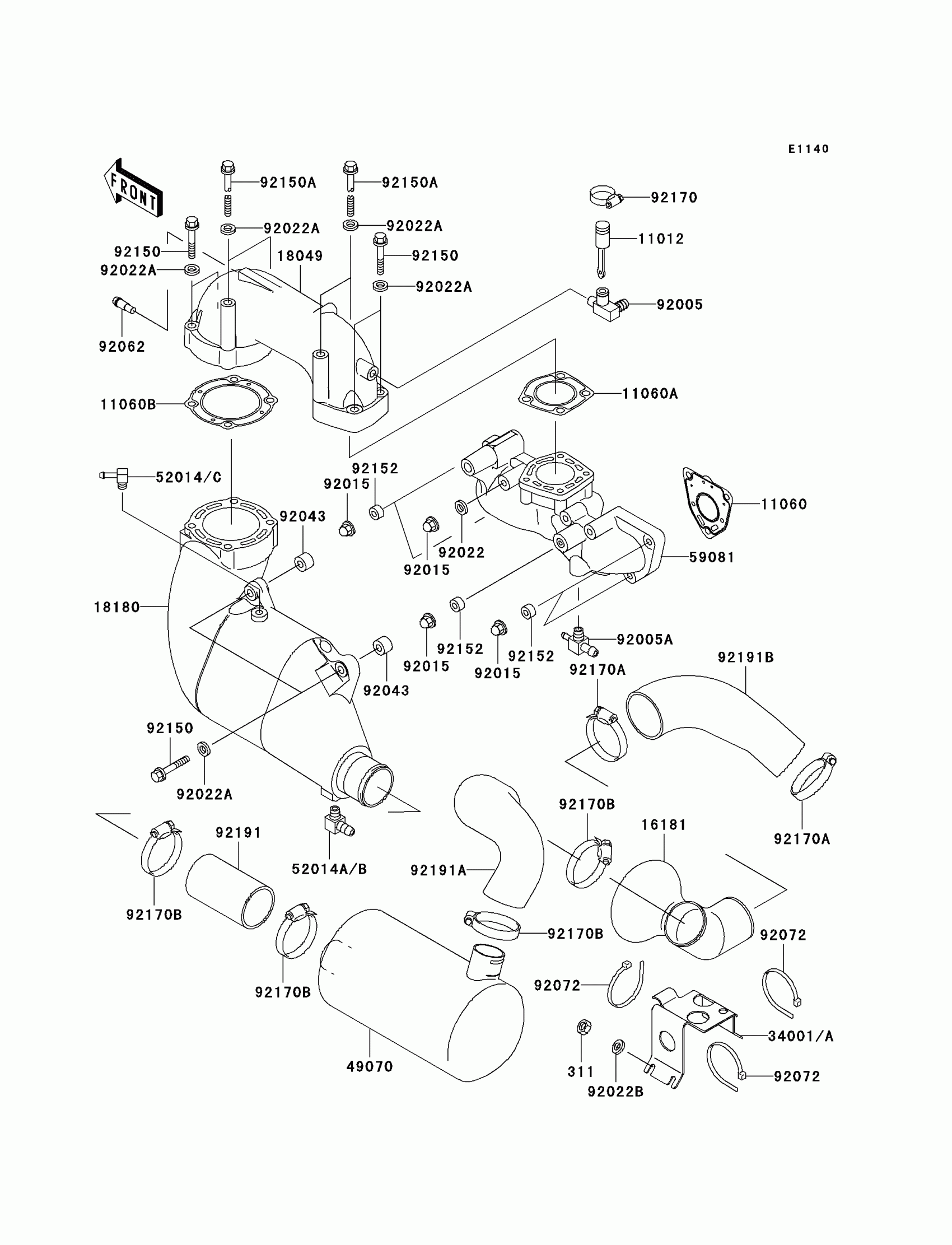

Kawasaki Ultra 130 Muffler(s) Diagram
#
Description
Price
311
NUT-HEX,6MM
311R0600
$0.70
11012
CAP
11012-3757
$10.97
11060
GASKET
11060-3767
$29.61
11060A
GASKET,MANIFOLD
11060-3768
$38.51
11060B
GASKET,MUFFLER
11060-3769
$39.28
16181
TANK-RESONATOR
16181-3702
$98.41
18049
PIPE-EXHAUST
18049-3776
$225.06
18180
BODY-MUFFLER
18180-3730
$503.16
34001A
STAND,RESONATOR
34001-3714
$16.42
49070
MUFFLER-COMP
49070-3742
$380.51
52014A
ELBOW
52014-3711
$30.12
52014C
ELBOW
52014-3721
$32.85
59081
MANIFOLD-EXHAUST
59081-3730
$621.37
92005
FITTING
92005-3715
$48.80
92005A
FITTING
92005-3720
$40.82
92015
NUT,CAP,8MM
92015-1371
$5.00
92022
WASHER,8.2X18X1.5
92022-1964
$4.18
92022A
WASHER,10.2X20X1.5
92022-3742
$4.18
92022B
WASHER
92022-567
$2.67
92043
PIN,11X14X12.3
92043-1266
$1.08
92062
NOZZLE
92062-3705
$8.44
92072
BAND,L=368.3
92072-3808
$1.59
92150
BOLT,10X50
92150-3819
$13.08
92150A
BOLT,10X125
92150-3825
$20.50
92152
COLLAR
92152-3726
$4.49
92170
CLAMP
92170-3729
Unavailable
92170A
CLAMP
92170-3760
$11.56
92170B
CLAMP
92170-3764
$10.35
92191
TUBE
92191-3922
Unavailable
92191A
TUBE,MUFFLER-RESONATOR
92191-3941
$131.40
92191B
TUBE,RESONATOR-TAILPIPE
92191-3942
$125.43
