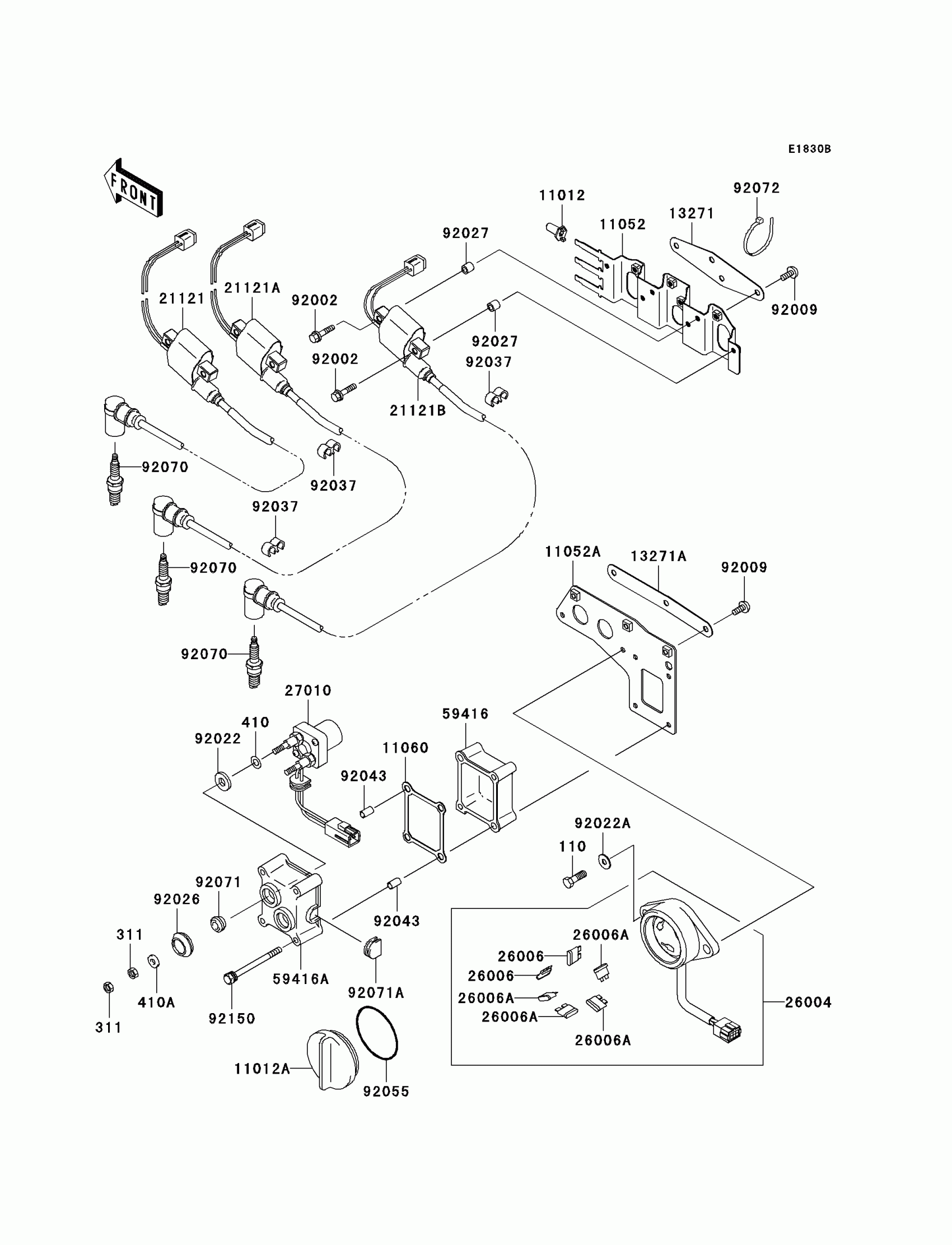

Kawasaki Ultra 130 Ignition System(JH1100-B3/B4) Diagram

#

Description
Price

110

BOLT,6X20

110R0620

$4.68

311

NUT-HEX,6MM

311R0600

$0.65

410

WASHER PLAIN 10MM

410B1000

Unavailable

410A

WASHER-PLAIN-SMALL,6MM

410S0600

Unavailable

11012

CAP,HOLDER

11012-3768

$7.41

11012A

CAP

11012-3791

Unavailable

11052

BRACKET,COIL

11052-3757

$83.72

11052A

BRACKET,SWITCH

11052-3767

$38.42

11060

GASKET

11060-3709

$12.76

13271

PLATE

13271-3820

$10.59

13271A

PLATE

13271-3842

$5.92

21121

COIL-IGNITION,#1 BLACK

21121-3719

$324.12

21121A

COIL-IGNITION,#2 GREEN

21121-3720

$284.50

21121B

COIL-IGNITION,#3 WHITE

21121-3721

$268.33

26004

FUSE-ASSY

26004-3725

$158.39

26006

FUSE,BLADE,10A,RED

26006-1007

$3.78

26006A

FUSE,BLADE,20A,YELLOW

26006-1051

$4.39

27010

SWITCH

27010-3777

$156.53

59416

CASE-ELECTRIC

59416-3710

$61.47

59416A

CASE-ELECTRIC

59416-3711

$68.39

92002

BOLT,6X35

92002-3715

$5.75

92009

SCREW,6X15

92009-3830

$2.66

92022

WASHER

92022-3035

$2.69

92022A

WASHER

92022-567

$1.89

92026

SPACER

92026-3703

$3.57

92027

COLLAR,6.2X10X10

92027-3705

$8.63

92037

CLAMP,HOSE

92037-1603

$3.81

92043

PIN

92043-3715

$5.61

92055

RING-O

92055-1292

$8.24

92070

PLUG-SPARK,PZFR7G-G(NGK),SOLID

92070-3705

$20.29

92071

GROMMET

92071-3004

$3.05

92071A

GROMMET

92071-3837

$2.61

92072

BAND,L=203.2

92072-3867

$1.61

92150

BOLT,6X80

92150-3711

$12.42
