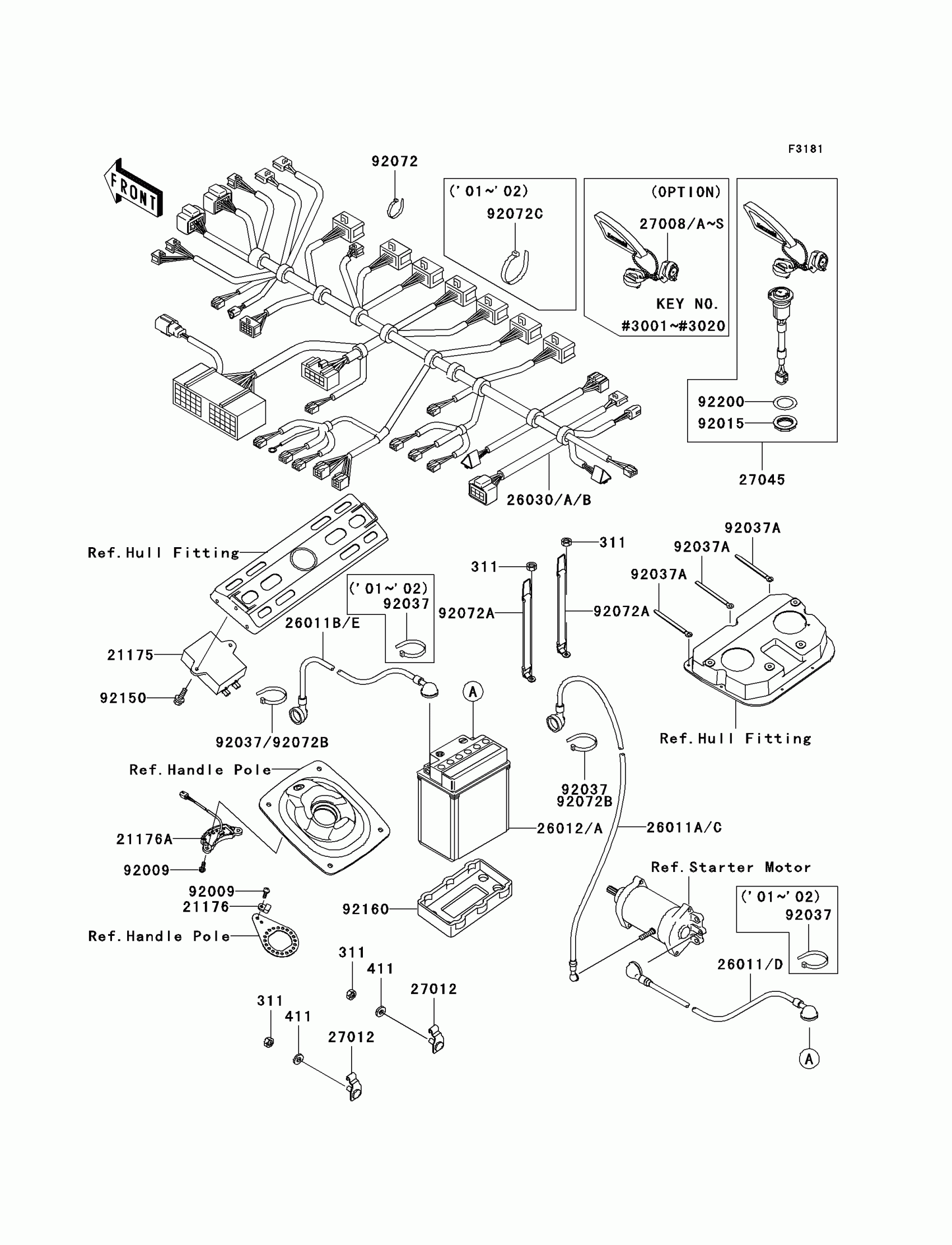

Kawasaki Ultra 130 Electrical Equipment Diagram

#

Description
Price

21175

CONTROL UNIT-ELECTRONIC,TRIM

21175-3723

$574.09

21176

SENSOR,MAGNET

21176-3746

$29.97

21176A

SENSOR,HOLE IC

21176-3748

$159.42

26011A

WIRE-LEAD,RELAY-STARTER

26011-3852

$79.29

26011D

WIRE-LEAD,BATTERY(-)-STARTER

26011-3902

$106.55

26011E

WIRE-LEAD,BATTERY(+)-RELAY

26011-3905

$137.22

26012A

BATTERY,YTX20L-BS,12V 18AH

26012-3730

Unavailable

26030B

HARNESS,MAIN

26030-3760

Unavailable

27008

KEY-LOCK,MAGNETIC SW,#3001

27008-3745

$75.48

27008A

KEY-LOCK,MAGNETIC SW,#3002

27008-3746

Unavailable

27008B

KEY-LOCK,MAGNETIC SW,#3003

27008-3747

$75.48

27008C

KEY-LOCK,MAGNETIC SW,#3004

27008-3748

$75.48

27008D

KEY-LOCK,MAGNETIC SW,#3005

27008-3749

$75.48

27008E

KEY-LOCK,MAGNETIC SW,#3006

27008-3750

$75.48

27008F

KEY-LOCK,MAGNETIC SW,#3007

27008-3751

Unavailable

27008G

KEY-LOCK,MAGNETIC SW,#3008

27008-3752

$75.48

27008H

KEY-LOCK,MAGNETIC SW,#3009

27008-3753

$75.48

27008I

KEY-LOCK,MAGNETIC SW,#3010

27008-3754

Unavailable

27008J

KEY-LOCK,MAGNETIC SW,#3011

27008-3755

$75.48

27008K

KEY-LOCK,MAGNETIC SW,#3012

27008-3756

$75.48

27008L

KEY-LOCK,MAGNETIC SW,#3013

27008-3757

$75.48

27008M

KEY-LOCK,MAGNETIC SW,#3014

27008-3758

Unavailable

27008N

KEY-LOCK,MAGNETIC SW,#3015

27008-3759

$75.48

311

NUT-HEX,6MM

311R0600

$0.65

411

WASHER-PLAIN,6MM

411S0600

$1.49

27008O

KEY-LOCK,MAGNETIC SW,#3016

27008-3760

$75.48

27008P

KEY-LOCK,MAGNETIC SW,#3017

27008-3761

$66.04

27008Q

KEY-LOCK,MAGNETIC SW,#3018

27008-3762

$75.48

27008R

KEY-LOCK,MAGNETIC SW,#3019

27008-3763

$75.48

27008S

KEY-LOCK,MAGNETIC SW,#3020

27008-3764

Unavailable

27012

HOOK

27012-3818

$7.61

27045

SWITCH-ASSY,MAIN

27045-3716

$362.14

92009

SCREW,5X16

92009-3868

$1.36

92015

NUT

92015-3848

$4.85

92037A

CLAMP,L=100

92037-3736

$4.85

92072

BAND,L=188

92072-1239

$1.30

92072A

BAND,WATER MUFFLER

92072-3781

$13.64

92072B

BAND,L=99

92072-3871

$1.95

92150

BOLT,6X20

92150-3758

$4.51

92160

DAMPER

92160-3929

$31.76

92200

WASHER

92200-3736

$2.66
