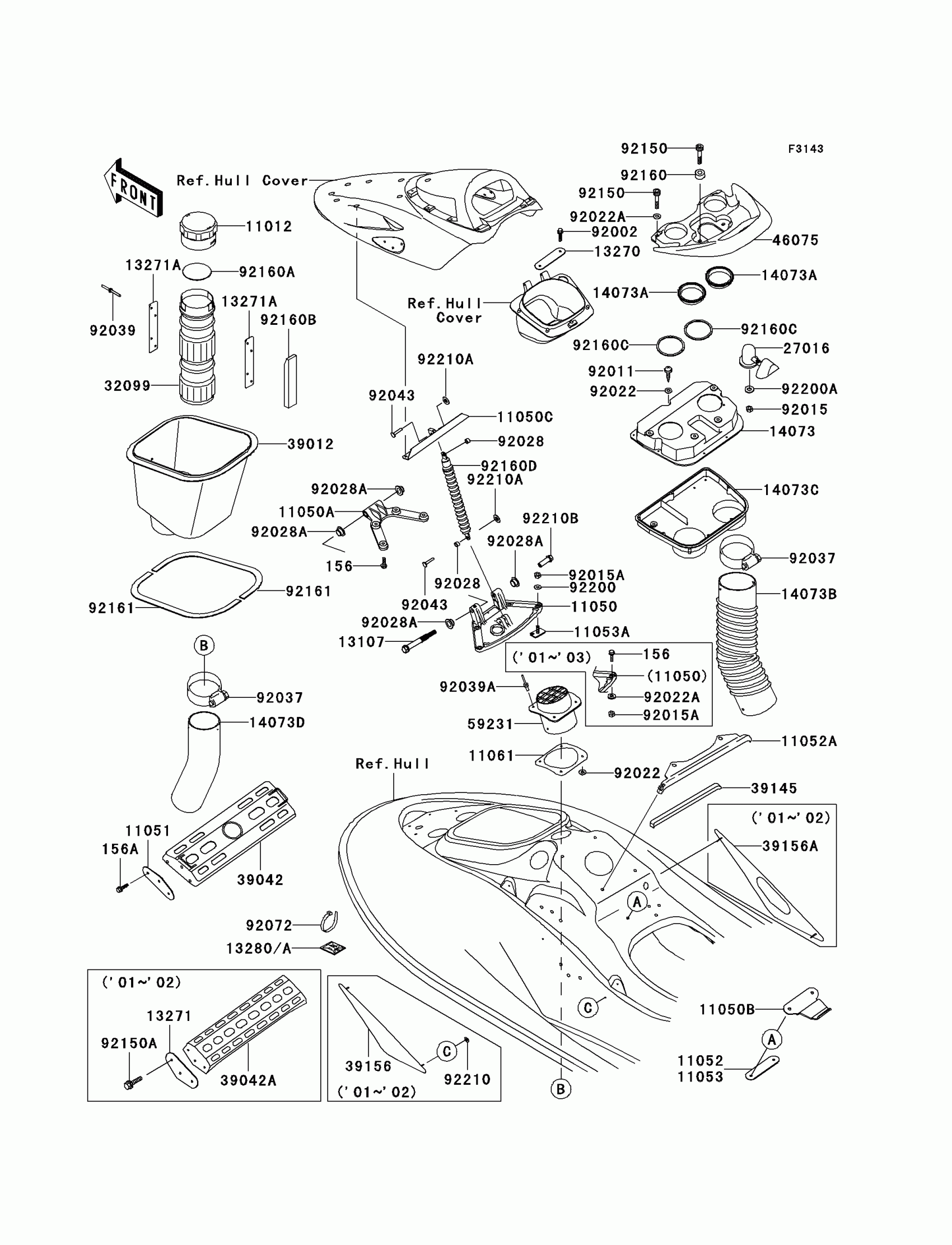

Kawasaki Ultra 130 Hull Fittings Diagram
#
11012
CAP,FIRE EXTINGUISHER
11012-3766
$10.30
11050
BRACKET
11050-3743
$82.73
11050A
BRACKET
11050-3744
$63.92
11050B
BRACKET
11050-3775
$38.44
11050C
BRACKET
11050-3778
Unavailable
11051
BRACKET
11051-3760
$36.38
11052A
BRACKET
11052-3748
$24.84
11053
BRACKET
11053-3732
$16.48
11053A
BRACKET
11053-3776
$9.48
11061
GASKET,FRONT DUCT
11061-3703
$12.37
13107
SHAFT
13107-3767
$37.63
13270
PLATE
13270-3909
$10.60
13271A
PLATE,FIRE EXTINGUISHER
13271-3775
$12.66
13280A
HOLDER
13280-3739
Unavailable
14073
DUCT,RR,UPP
14073-3767
$75.74
14073A
DUCT
14073-3769
$6.06
14073B
DUCT
14073-3771
$22.14
14073C
DUCT,RR,LWR
14073-3782
$40.89
14073D
DUCT,FR
14073-3784
$19.28
27016
LOCK-ASSY,SEAT,F.BLACK
27016-3744-6Z
$122.80
32099
CASE,FIRE EXTINGUISHER
32099-3769
$19.37
39012
CASE-STORAGE
39012-3721
$41.23
39042
CROSSMEMBER,FR
39042-3707
$154.96
39145
TRIM-SEAL,L=340
39145-3779
$13.71
46075
GRIP,TAIL,F.BLACK
46075-3746-6Z
$126.70
59231
FILLER
59231-3725
$18.86
92002
BOLT,6X25
92002-3714
$5.00
92011
SCREW
92011-562
$1.65
92015
NUT,FLANGED,8MM
92015-3709
$5.05
92015A
NUT,6MM
92015-3767
$4.69
92022
WASHER,5X16X1.5
92022-3041
$4.18
92022A
WASHER,6.5X20X1.5
92022-3710
$3.65
92028
BUSHING
92028-3765
$3.29
92028A
BUSHING
92028-3770
$2.71
92037
CLAMP,MAX120.7MM
92037-3733
$13.94
156
BOLT-WP,6X20
156R0620
$3.65
156A
BOLT-WP,6X25
156R0625
$4.76
92039
RIVET
92039-3755
$6.57
92039A
RIVET
92039-3775
$1.70
92043
PIN,6X33
92043-3748
$11.20
92072
BAND
92072-3857
$1.70
92150
BOLT,SOCKET,6X30
92150-3822
$4.31
92160
DAMPER
92160-3738
$14.36
92160A
DAMPER
92160-3814
$7.91
92160B
DAMPER
92160-3821
$8.86
92160C
DAMPER
92160-3910
$5.69
92160D
DAMPER
92160-3919
Unavailable
92161
DAMPER
92161-3714
$9.01
92200
WASHER,6.5X16X1.0
92200-3712
$3.73
92200A
WASHER,8.5X25X1.5
92200-3717
$4.92
92210A
NUT,SPEED,6MM
92210-3739
$1.86
92210B
NUT,8MM
92210-3748
$21.91
