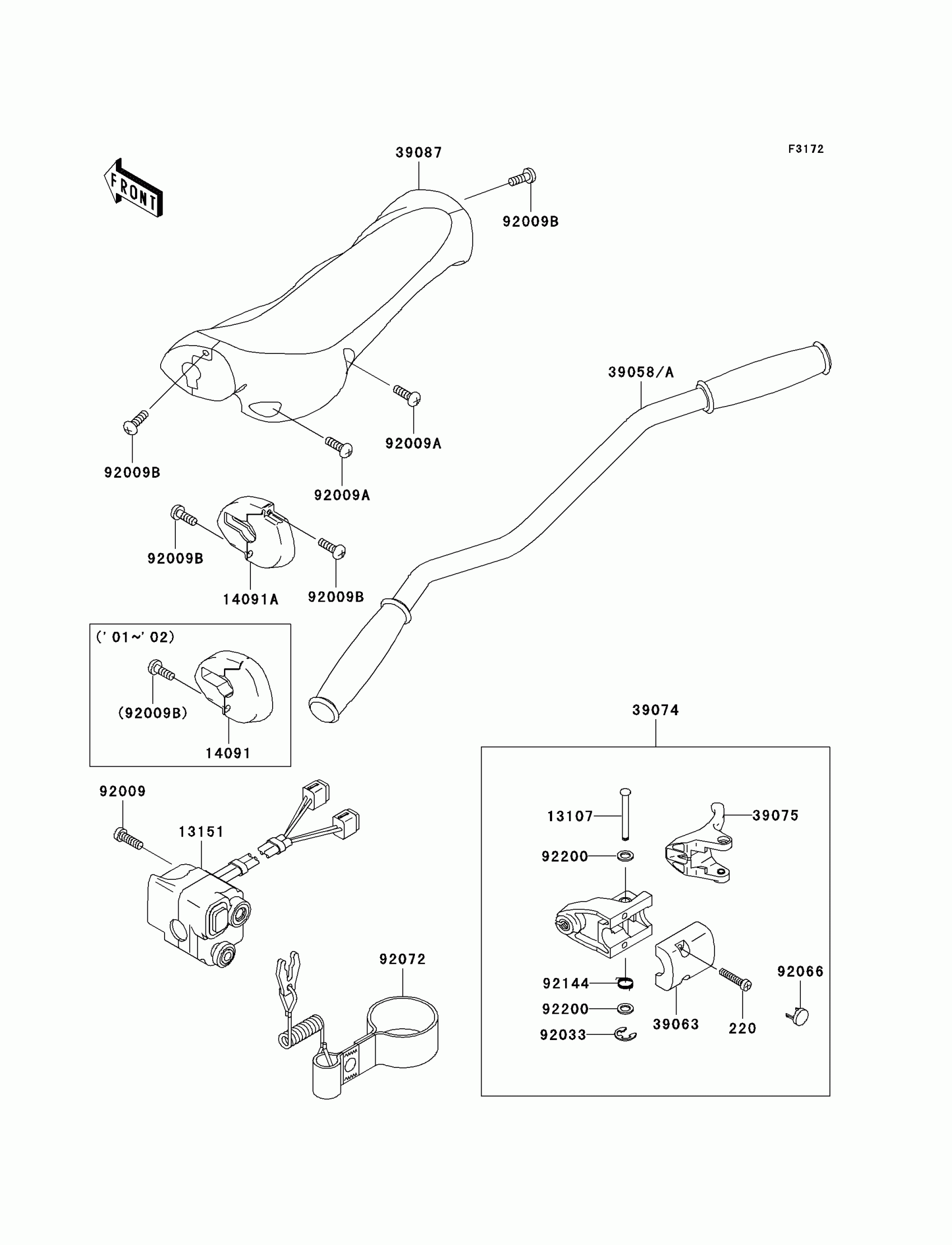

Kawasaki Ultra 130 Handlebar Diagram

Description

Price

220

SCREW-PAN-CROSS

220R0635

$2.97

13107

SHAFT

13107-3766

$9.52

13151

SWITCH-COMP,STOP&START&TRIM

13151-3733

$444.66

14091A

COVER,F.BLACK

14091-3752-6Z

$42.77

39058A

HANDLE-COMP,F.BLACK

39058-3736-6Z

$227.98

39063

HOUSING-CONTROL

39063-3724

$25.91

39074

LEVER-ASSY-THROTTLE

39074-3722

$142.55

39075

LEVER-THROTTLE

39075-3715

$40.86

39087

PAD-HANDLE,BLACK

39087-3729-MA

$231.05

92009

SCREW,5X30

92009-3836

$4.18

92009A

SCREW,6X14

92009-3851

$2.75

92009B

SCREW

92009-3853

$1.36

92033

RING-SNAP

92033-3723

$3.29

92066

PLUG

92066-3760

$4.74

92072

BAND,TETHER SWITCH

92072-3816

Unavailable

92144

SPRING

92144-3749

$4.26

92200

WASHER

92200-3738

$3.32
