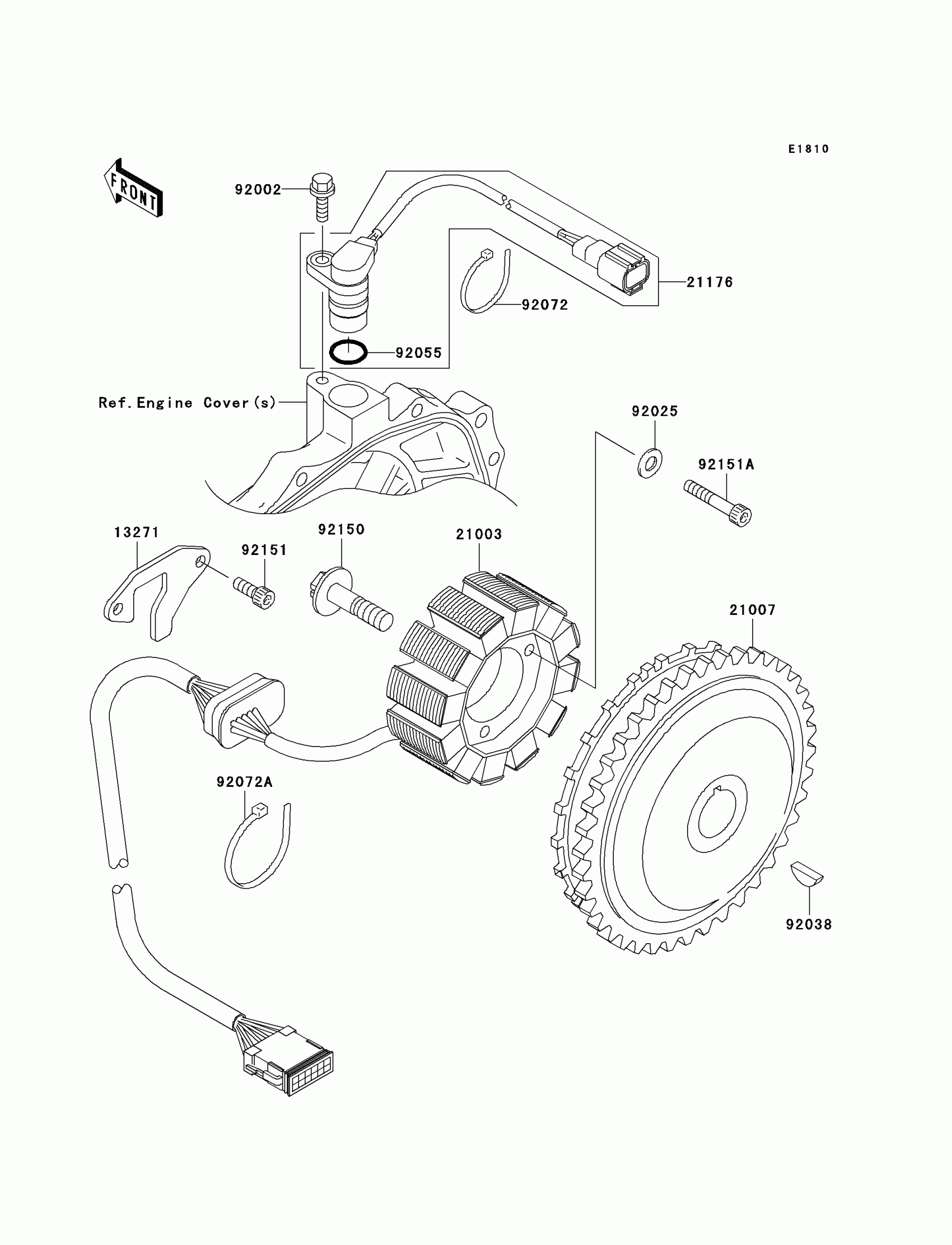

Kawasaki Ultra 130 Generator Diagram

Description

Price

13271

PLATE

13271-3761

$8.63

21003

STATOR

21003-3744

$608.81

21007

ROTOR

21007-3725

$1,199.42

21176

SENSOR

21176-1077

$102.13

92002

BOLT,6X16

92002-3728

$4.69

92025

SHIM,T=1.4

92025-1502

$3.21

92038

KEY,WOODRUFF

92038-001

$4.96

92055

RING-O

92055-1639

$3.09

92072

BAND,L=201

92072-3778

$1.84

92072A

BAND,L=368.3

92072-3808

$1.59

92150

BOLT

92150-3843

$19.88

92151

BOLT,SOCKET,6X16

92151-3770

$2.38

92151A

BOLT,SOCKET,6X35

92151-3780

$3.24
