2004 Kawasaki Ultra 130 Fuel Tank Diagram

← All diagrams

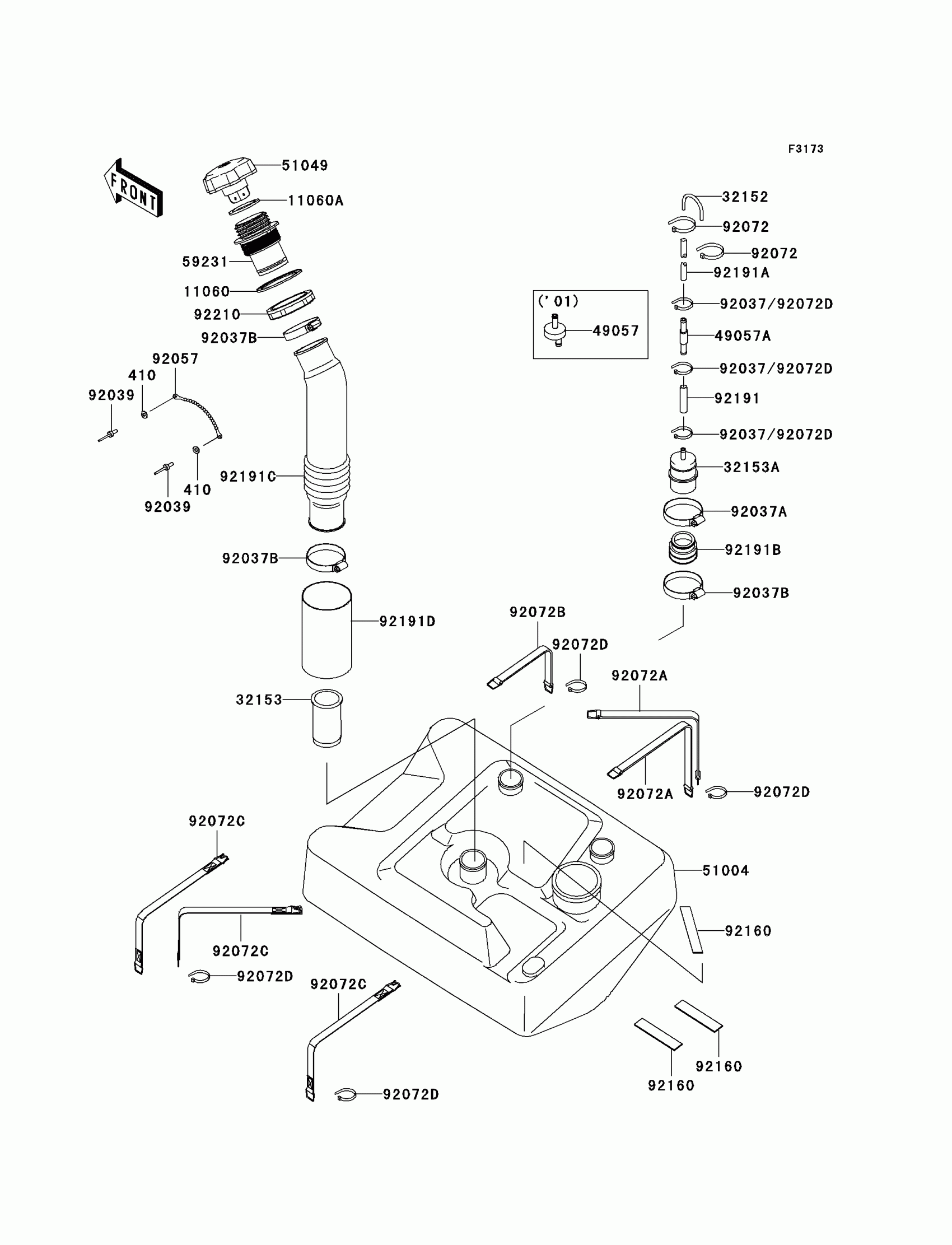

Find the part on the Fuel Tank diagram for your 2004 Kawasaki Ultra 130, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Kawasaki Ultra 130 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

410

W-PLAIN-S,3MM

410S0300

1
Out of stock

11060

GASKET,FUEL-FILLER

11060-3780

1
Out of stock

11060A

GASKET,FUEL-CAP

11060-3790

1
Out of stock

32152

PIPE

32152-3705

1
Out of stock

32153

PIPE

32153-3713

1
Out of stock

32153A

PIPE

32153-3714

1
Out of stock

49057A

VALVE-RELIEF

49057-3707

1
Out of stock

51004

TANK-FUEL

51004-3734

1
Out of stock

51049

CAP-TANK,FUEL

51049-3722

1
Out of stock

59231

FILLER

59231-3723

1
Out of stock

92037A

CLAMP

92037-3009

1
Out of stock

92037B

CLAMP

92037-3738

1
Out of stock

92039

RIVET,3.2X8

92039-3763

1
Out of stock

92057

CHAIN,L=250

92057-3708

1
Out of stock

92072

BAND,L=188

92072-1239

1
Out of stock

92072A

BAND

92072-3845

1
Out of stock

92072B

BAND

92072-3846

1
Out of stock

92072C

BAND

92072-3847

1
Out of stock

92072D

BAND,L=99

92072-3871

1
Out of stock

92160

DAMPER

92160-3840

1
Out of stock

92191

TUBE,5.8X10.8X100

92191-3828

1
Out of stock

92191A

TUBE,5.8X10.8X570

92191-3829

1
Out of stock

92191B

TUBE

92191-3832

1
Out of stock

92191C

TUBE,FUEL TANK-FILLER

92191-3851

1
Out of stock

92191D

TUBE,86X89X150

92191-3890

1
Out of stock

92210

NUT,FILLER

92210-3751

1
Out of stock
