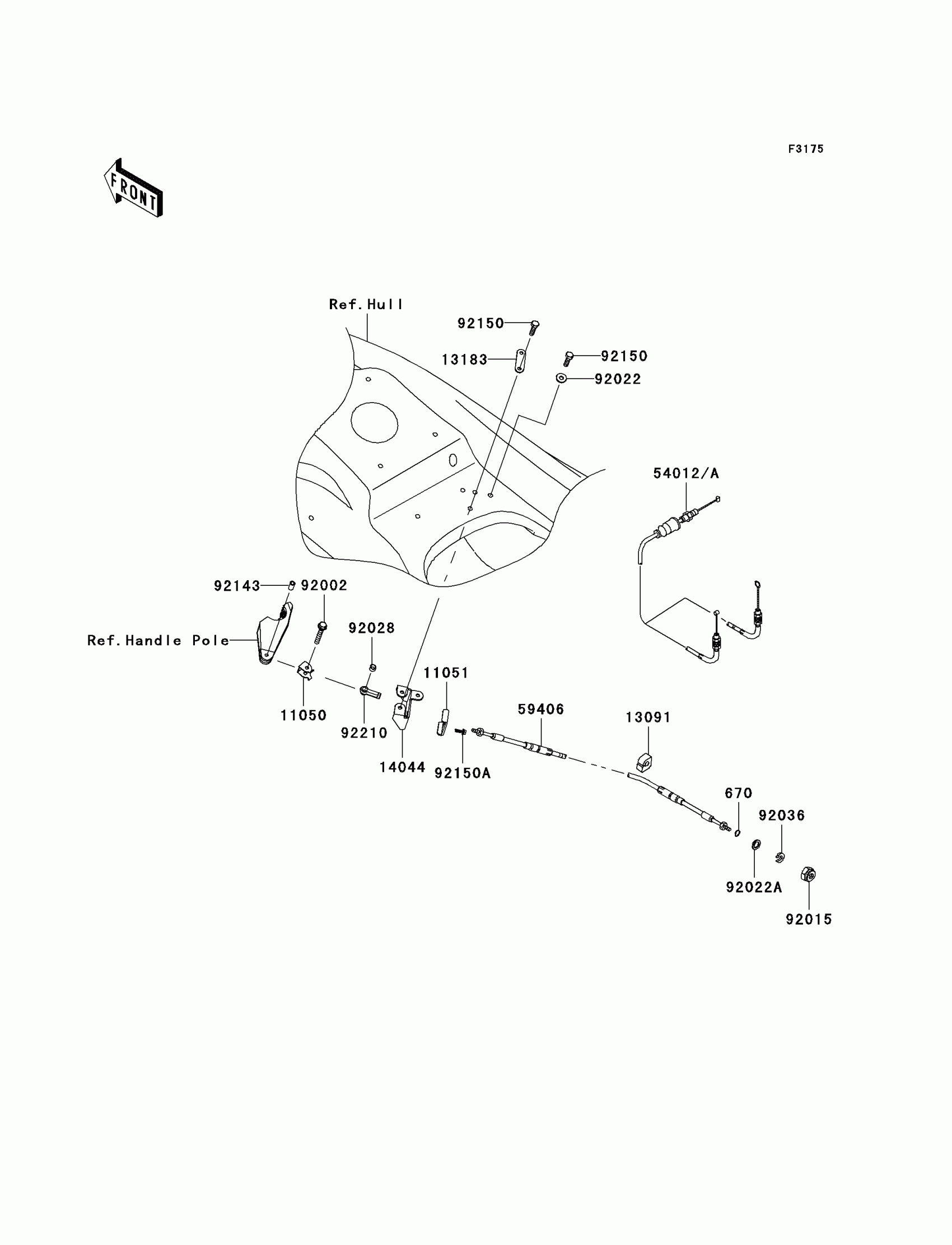

Kawasaki Ultra 130 Cables Diagram

Description

Price

670

O RING,11MM

670B2011

$1.28

11050

BRACKET

11050-3767

$10.60

11051

BRACKET

11051-3701

$9.89

13091

HOLDER

13091-3712

$4.65

13183

PLATE

13183-3809

$7.34

14044

HOLDER-CABLE

14044-3736

$38.71

54012A

CABLE-THROTTLE

54012-3770

$128.75

59406

CABLE-STRG

59406-3771

$127.62

92002

BOLT,6X30

92002-3726

$4.69

92015

NUT,20MM

92015-526

$29.72

92022

WASHER,6.5X20X1.5

92022-3710

$3.65

92022A

WASHER

92022-535

$7.34

92028

BUSHING

92028-3769

$2.94

92036

RING-SNAP

92036-501

Unavailable

92143

COLLAR,6.2X10X19

92143-3733

$5.57

92150

BOLT,6X20

92150-3758

$5.11

92150A

BOLT,5X16

92150-3778

$4.65

92210

NUT

92210-3746

$25.14
