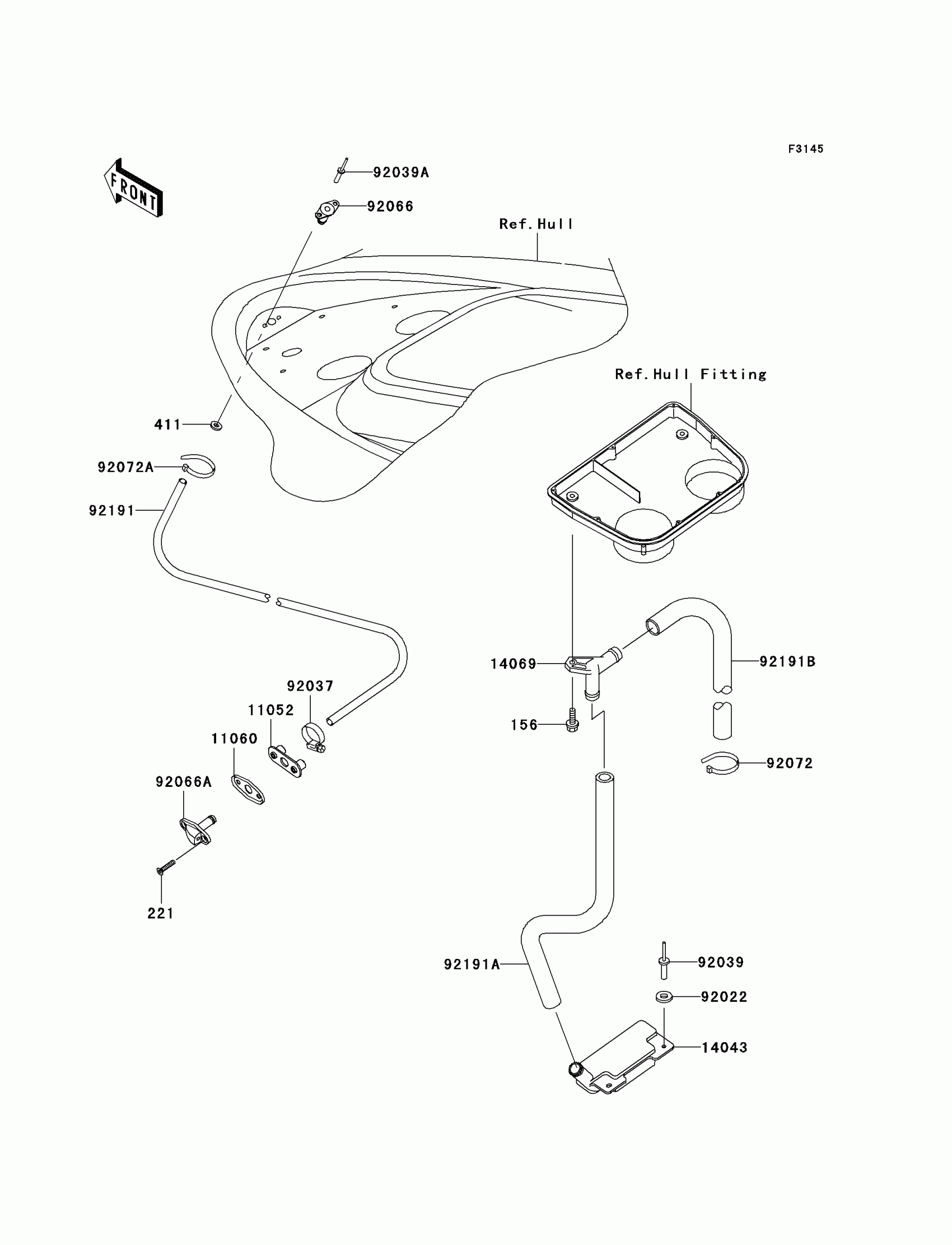

Kawasaki Ultra 130 Bilge System Diagram

Description

Price

156

BOLT-WP,6X18

156R0618

$3.73

221

SCREW-CSK-CROSS,5X25

221R0525

$2.06

411

WASHER-PLAIN,5MM

411S0500

$0.94

11052

BRACKET

11052-3735

$18.72

11060

GASKET

11060-3798

$6.89

14043

FILTER

14043-3710

$37.34

14069

BREATHER

14069-3708

$9.50

92022

WASHER,5X16X1.5

92022-3041

$4.18

92037

CLAMP

92037-3726

$3.98

92039

RIVET

92039-3714

$0.95

92039A

RIVET

92039-3747

$1.70

92066

PLUG

92066-3766

$6.89

92066A

PLUG

92066-3767

$10.34

92072

BAND,L=188

92072-1239

$1.73

92072A

BAND,L=99

92072-3871

$2.26

92191

TUBE,10X13X600

92191-3862

$4.72

92191A

TUBE

92191-3883

$11.30

92191B

TUBE,15.88X22.24X570

92191-3896

$6.42
