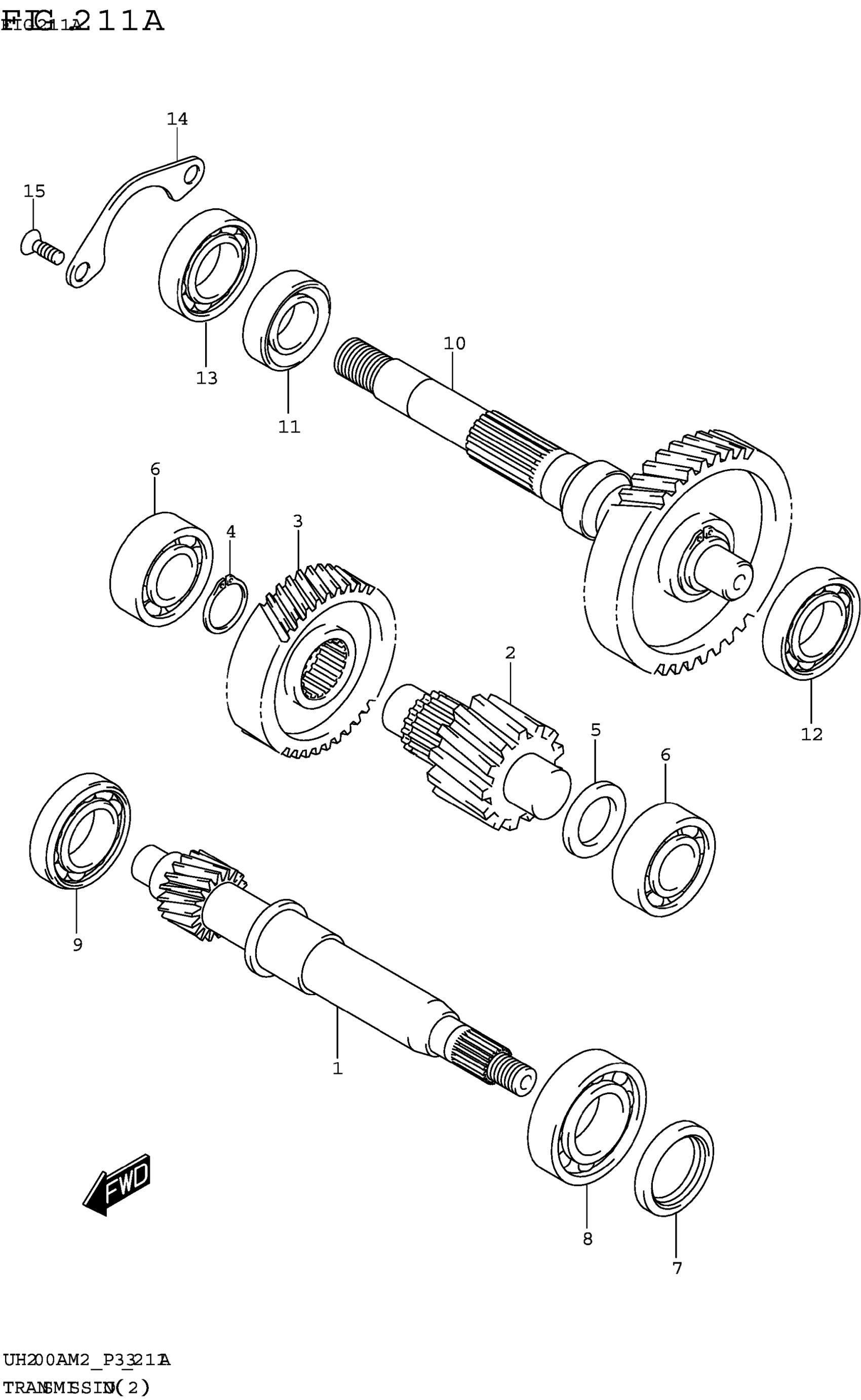

Suzuki UH200AM2 (2022) TRANSMISSION (2) Diagram

#

Description
Price

1

SHAFT,DRIVE (NT:16)

24131-03H10

Unavailable

2

SHAFT,IDLE

24151-03H50

Unavailable

3

GEAR,IDLE DRIVEN

24381-03H20

Unavailable

4

CIRCLIP

08331-31209

Unavailable

5

WASHER

08211-15251

$1.67

6

BEARING

08113-62027

$14.40

7

OIL SEAL (25X37X6)

09283-25097

$11.92

8

BEARING (20X47X14)

09262-25126

$22.30

9

BEARING (15X42X13)

09262-15027

$23.39

10

SHAFT,REAR AXLE

24140-03H51

Unavailable

11

SEAL (29X42X6)

64841-28E01

$7.89

12

BEARING

08113-63030

$23.65

13

BEARING (22X50X14)

09262-22050

$53.17

14

RETAINER,DRIVE SHAHFT BEARING

24751-07900

Unavailable

15

SCREW (6X16)

09126-06014

$2.06
