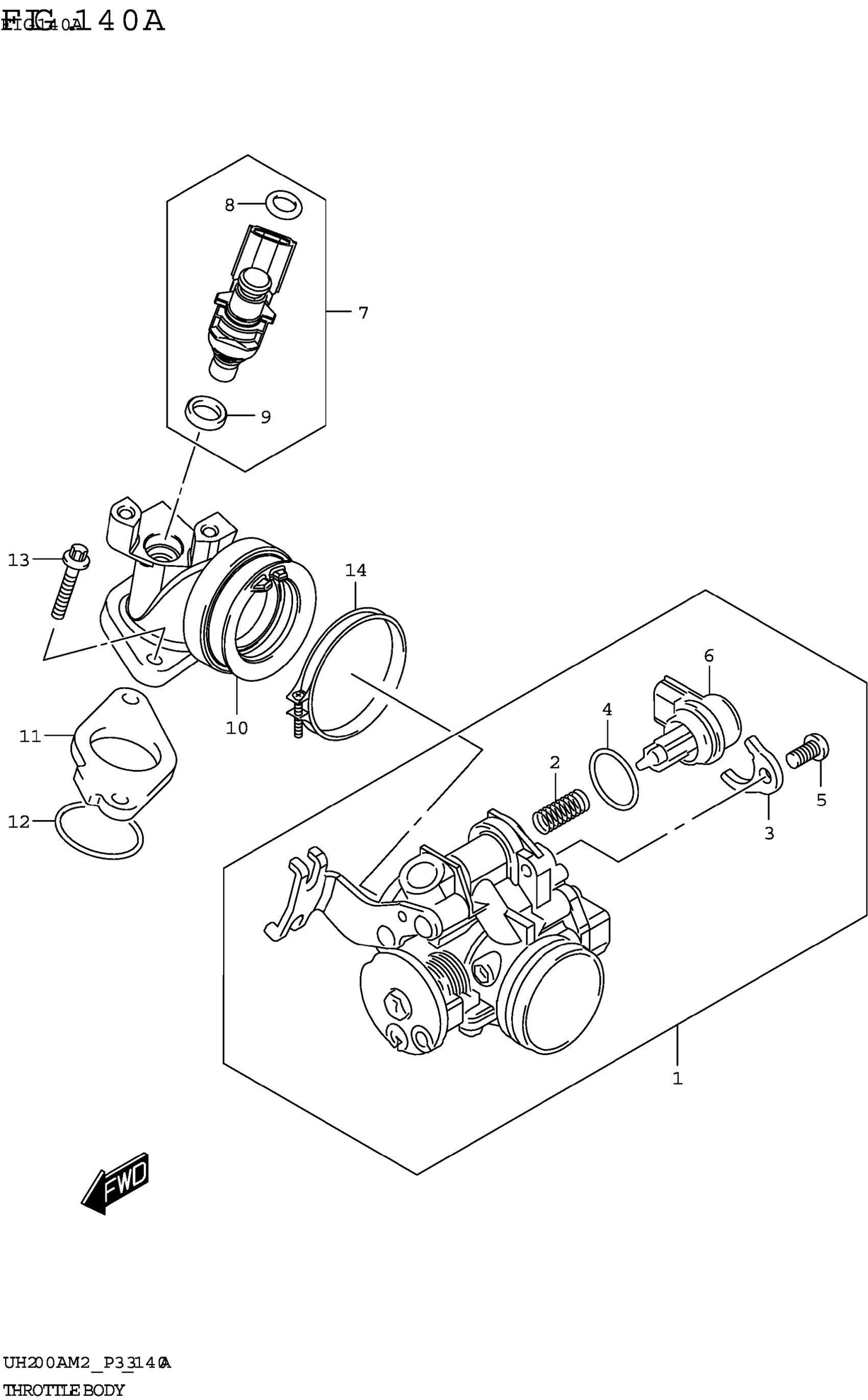

Suzuki UH200AM2 (2022) THROTTLE BODY Diagram

#

Description
Price

1

BODY ASSY,THROTTLE

13400-29K11

Unavailable

2

.COMPRESSION SPRING

13417-09JA0

$11.57

3

.PLATE

13421-42J00

$14.53

4

.O-RING

13438-09JA0

$4.83

5

SCREW

13602-06128

$2.96

6

.STEPPING MOTOR

18117-29K00

Unavailable

7

INJECTOR ASSY, FUEL

15710-29K00

Unavailable

8

.O RING

15721-26J00

$10.70

9

.RING,SEAL

15722-21H00

$11.25

10

PIPE COMP,INTAKE

13101-29K10

$153.45

11

INSULATOR,INTAKE PIPE

13128-03H10

Unavailable

12

O RING (D:2.4,ID:33.7)

09280-34004

$4.18

13

BOLT

01547-0625A

$2.01

14

.CLAMP

09402-48208

$4.64
