2022 Suzuki UH200AM2 Rear Wheel Diagram

← All diagrams

Find the part on the Rear Wheel diagram for your 2022 Suzuki UH200AM2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

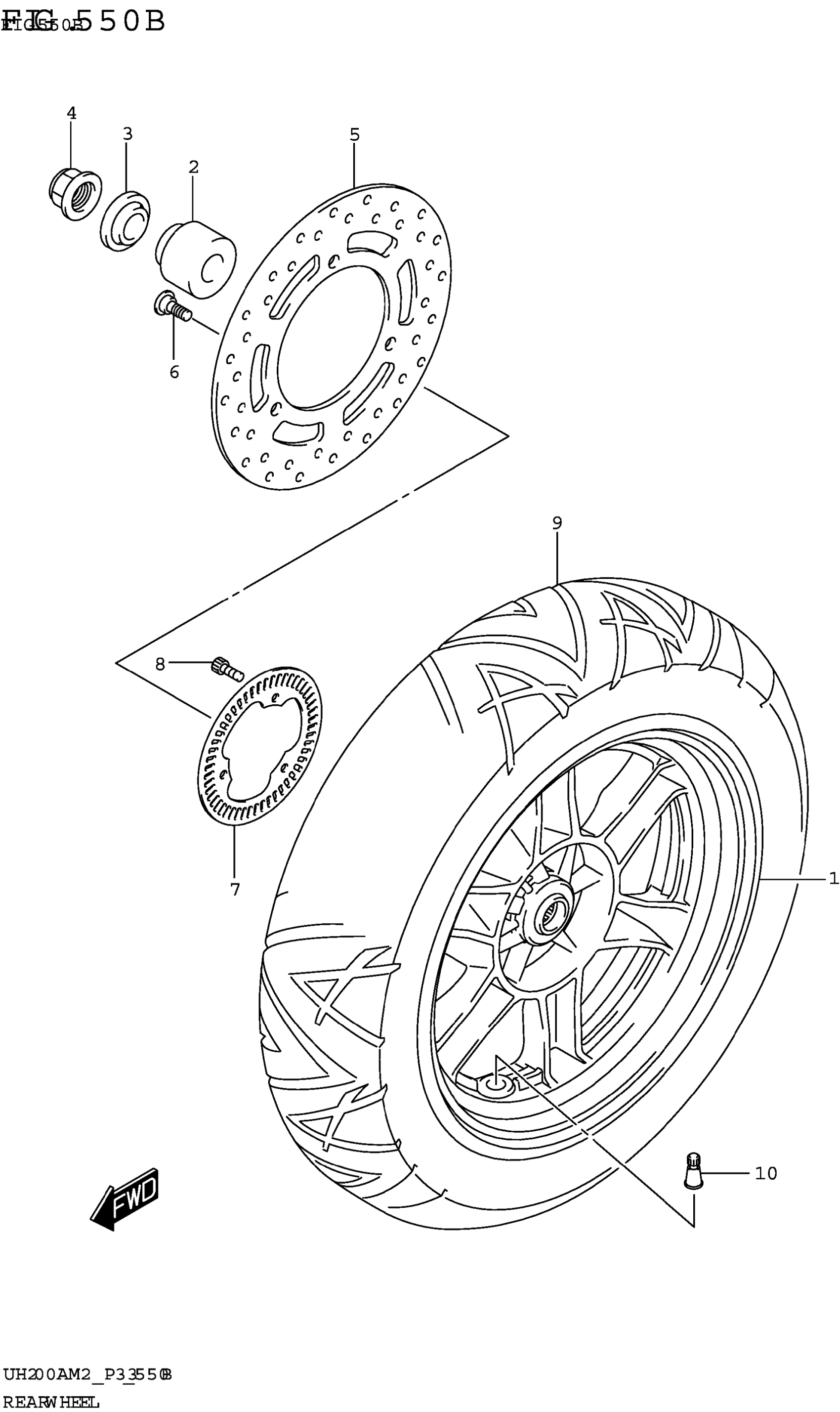

2022 Suzuki UH200AM2 Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WHEEL,REAR (12XMT3.00,BLACK)

64150-12J00-019

1
Out of stock

2

SPACER,REAR AXLE INNER

64741-03H01

1
Out of stock

3

SPACER,REAR AXLE OUTER

64751-03H10

1
Out of stock

4

NUT

08319-3116A

1
Out of stock

5

DISC,FRONT BRAKE

59211-12J00

1
Out of stock

6

BOLT,FR BRAKE DISC (8X21)

59218-09G10

3
Out of stock

7

RING,SPEED SENSOR FR (50T)

54162-44H00

1
Out of stock

8

BOLT

07130-0512A

3
Out of stock

9

TIRE,REAR

65110-03H23

1

$234.90

In stock

10

VALVE ASSY,WHEEL RIM (TR412)

43130-24A60

1
Out of stock
