2022 Suzuki UH200AM2 Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 2022 Suzuki UH200AM2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

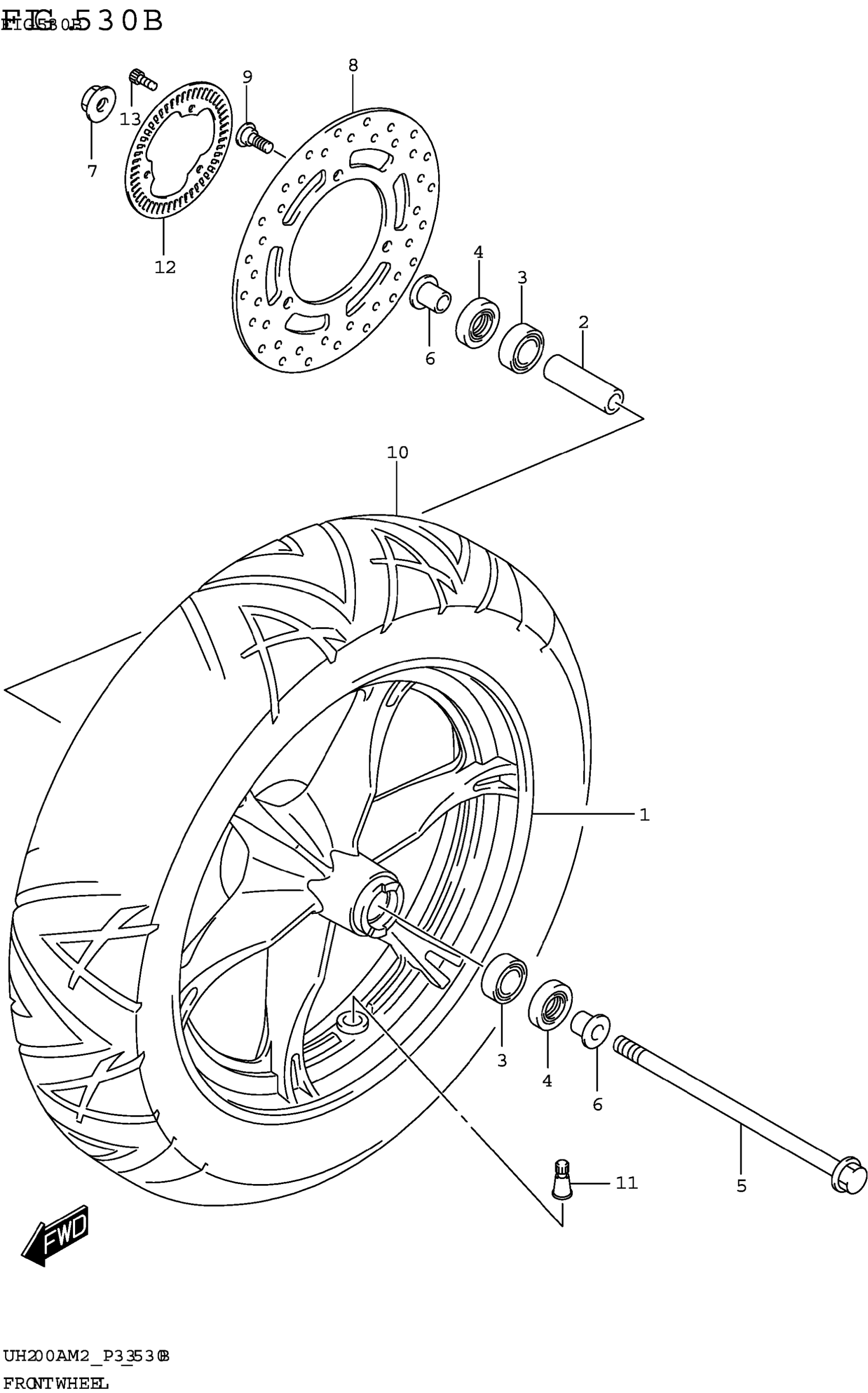

2022 Suzuki UH200AM2 Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WHEEL,FRONT (13M/CXMT2.50,BLA | K)

54111-12J00-019

1
Out of stock

2

SPACER,FR HUB BEARING

54731-03H10

1
Out of stock

3

BEARING

08123-6201B

2
Out of stock

4

SEAL,OIL (18X32X7)

09285-18002

2
Out of stock

5

SPACER,FR HUB BEARING

54711-12J00

1
Out of stock

6

SPACER,FRONT AXLE RH

54741-03H00

2
Out of stock

7

NUT

08319-3112A

1
Out of stock

8

DISC,FRONT BRAKE

59211-12J00

1
Out of stock

9

BOLT,FR BRAKE DISC (8X21)

59218-09G10

3
Out of stock

10

TIRE,FRONT

55110-03H23

—
Out of stock

11

VALVE ASSY,WHEEL RIM (TR412)

43130-24A60

1
Out of stock

12

RING,SPEED SENSOR FR (50T)

54162-44H00

1
Out of stock

13

BOLT

07130-0512A

3
Out of stock
